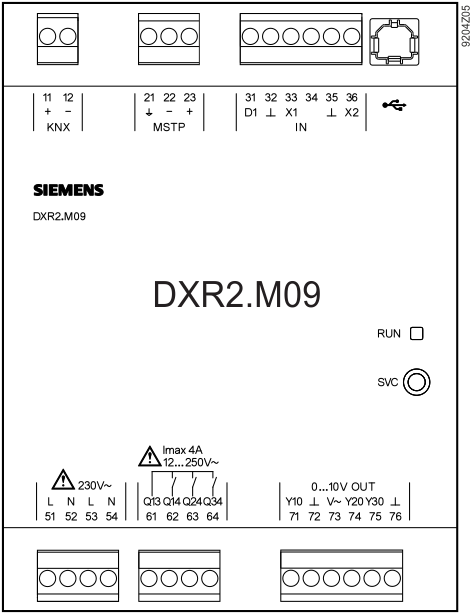

DXR2.M09
Terminal | Symbol | Description | Module | Channel |
|---|---|---|---|---|
21...23 MS/TP |
| MS/TP connection |
|
|
11, 12 KNX | +, - | KNX connection |
|
|
31...36 inputs | D1 | Digital input | 1 | 1 |
X1, X2 | Universal input | 1 | 5...6 | |
⏊ | System zero |
|
| |
USB |
| USB interface |
|
|
51...54 feed | N | Neutral conductor |
|
|
L | Phase wire AC 230 V |
|
| |
61...64 relays | Q13 | Common wiring for Q14, Q24 and Q34 |
|
|
Q14, Q24, Q34 | NO contact | 11 | 9...11 | |
71...76 analog outputs | Y10, Y20, Y30 | Positioning output DC 0...10 V | 21 | 1...3 |
⏊ | System zero |
|
| |
V~ | Field supply AC 24 V |
|
| |
Service | SVC | Service button |
|
|
Display | RUN | Operation LED |
|
|
, +, -
