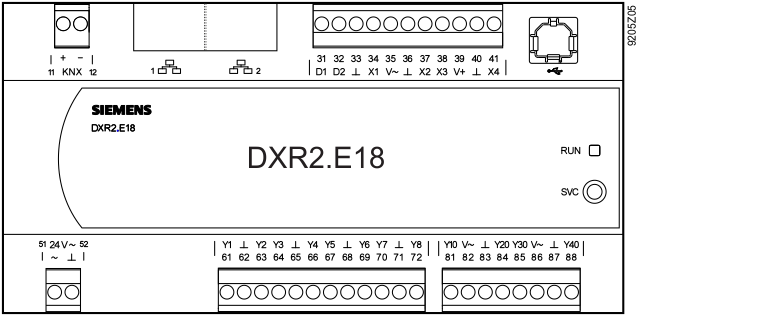

DXR2.E18

Terminal

Symbol

Description

Module

Channel

1, 2 Ethernet

2 x RJ45 interface for 2-port Ethernet switch





11, 12 KNX

+, -

KNX connection





31...41 inputs

D1, D2

Digital input

1

1, 2

X1...X4

Universal input

1

5...8

⏊

System zero





V~

Field supply AC 24 V for active sensors





V+

Field supply DC 24 V for active sensors





USB

USB interface





51...52 power 24 V~

V~

Power SELV / PELV AC 24 V





⏊

System zero





61...72 Triacs

Y1...Y8

Switching output AC 24 V

11

1...8

⏊

System zero





81...88 analog outputs

Y10...Y40

Positioning output DC 0...10 V

21

1...4

⏊

System zero





V~

Field supply AC 24 V





Service

SVC

Service button





Display

RUN

Operation LED
