Saving diagnostic data

info

For commissioning and diagnostic information to be available in ABT Site, the data first has to be read and saved into the project.

You can save more than one data series for each device. Each saved data series will be saved with a time stamp under the corresponding device.

To view the saved information, go to Startup > Commissioning and diagnostics.
Commissioning and diagnostics

Save diagnostic data

  1. At least one device must be connected.
    Connecting to devices
  1. Open the Startup > Configure and download task.

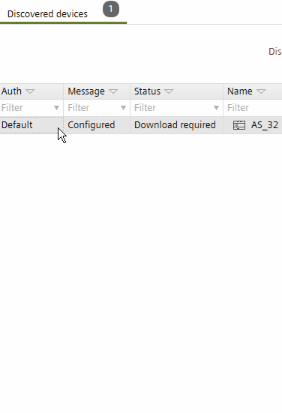

  2. In the Discovered devices tab, select a device.
  3. Right-click and select Save diagnostic data.
  4. Select the scope of diagnostic information to be saved.
  5. Click OK.
  1. The data is now available in ABT Site.
  2. To view the saved information, go to Startup > Commissioning and diagnostics.
