Human-Centric Lighting topology
Human-Centric Lighting (HCL) topology

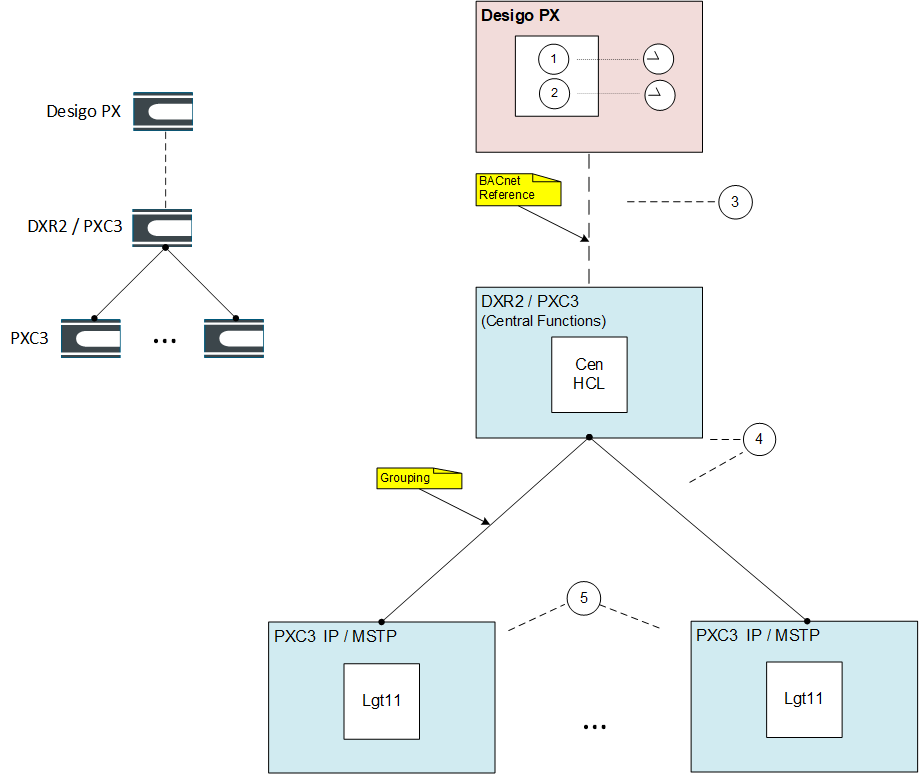

Key
1, 2 | The schedulers for color temperature, brightness adjustment and associated ramping functionality for smooth transitions are located in a Desigo PX automation station. |

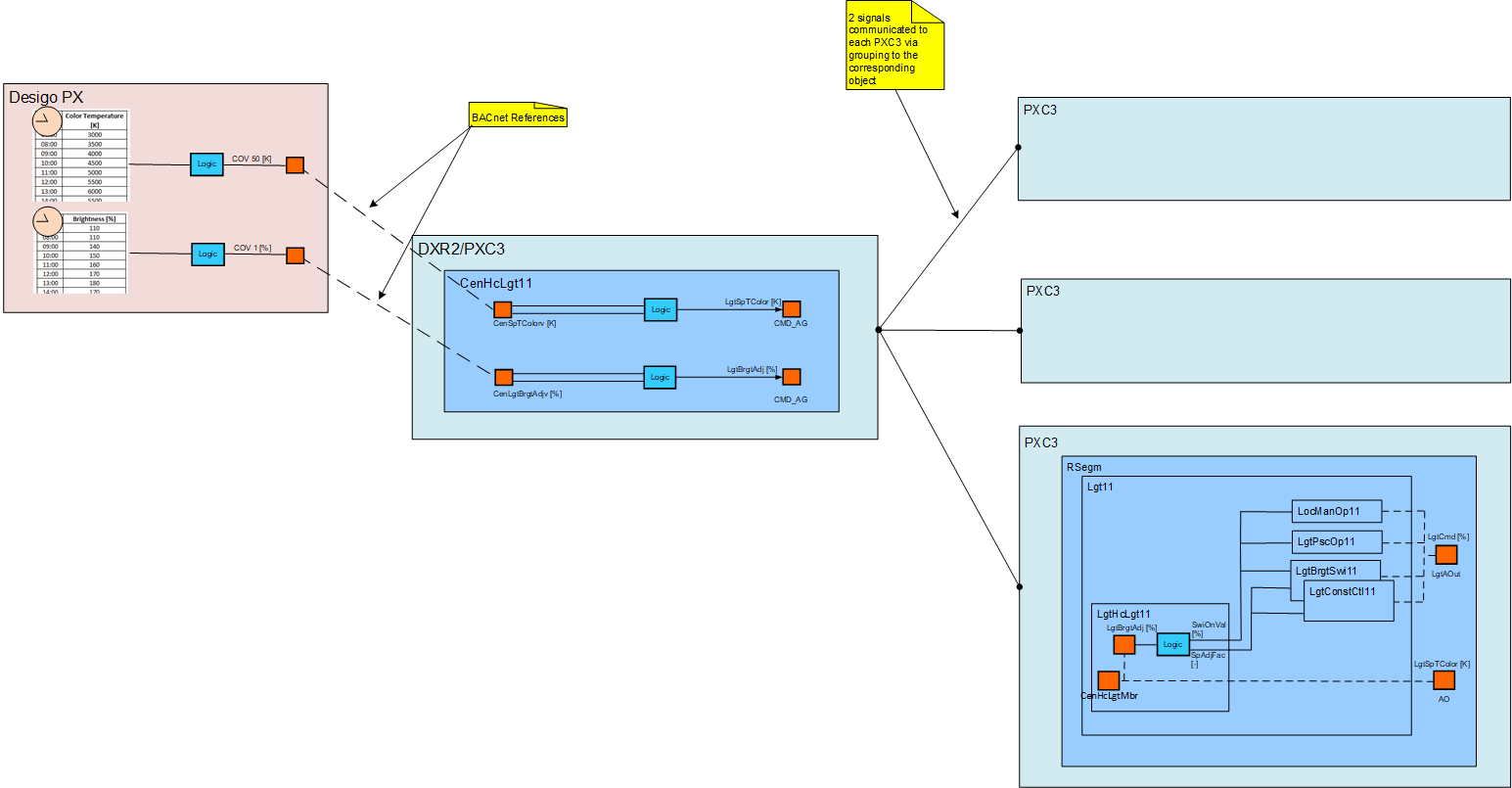

3 | The Desigo PX feeds the HCL central function (from CenFnct11) to the DXR2/PXC3 central function automation station via a BACnet reference. |
4 | The HCL central function in the DXR2/PXC3 communicates with the DRA room lighting application on PXC3 automation stations via grouping. |
5 | The adapted room lighting applications support HCL via a DALI device type 8. |
Overall design:
See the following sections for examples of room lighting adaptations for Human-Centric Lighting.
