PXC4.E16S

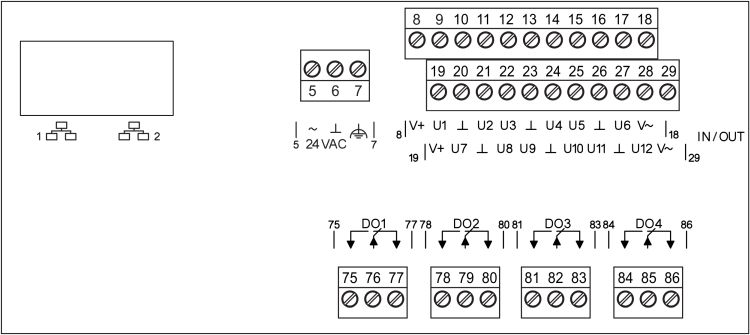

Terminal | Symbol | Description | Module | Channel |
1, 2 |
| 2 x RJ45 interface for Ethernet with switch |
|
|
5, 6 | 24 V ~, ⏊ | Operating voltage AC 24 V |
|
|
7 |
| Functional ground (must be connected on the installation side with the building grounding system (PE)). |
|
|
9 to 17 | Ux | Universal inputs / outputs | 61 | 1…12 |
| ⏊ | Measuring ground for Ux |
|
|
8, 19 | V+ | DC 24 V power for field devices 2.4 W / <100 mA |
|
|
18, 29 | V~ | AC 24 V power for field devices 48 VA / 2 A |
|
|
Term | on, off | PXC4.E16: Switch for bus termination |
|
|
Polar | on, off | Switch for polarization |
|
|
75 to 86 | DOx | Relay outputs | 11 | 1…4 |
