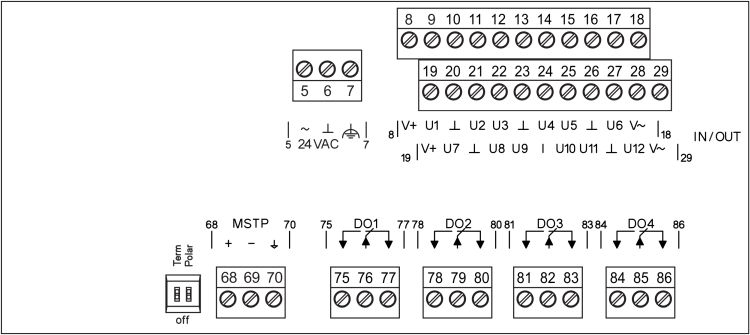

PXC4.M16S
|
Terminal | Symbol | Description | Module | Channel |
5, 6 | 24 V ~, ⏊ | Operating voltage AC 24 V |
|
|
7 |
| Functional ground (must be connected on the installation side with the building grounding system (PE)). |
|
|
9 to 17 | Ux | Universal inputs / outputs | 61 | 1…12 |
| ⏊ | Measuring ground for Ux |
|
|
8, 19 | V+ | DC 24 V power for field devices 2.4 W / 100 mA |
|
|
18, 29 | V~ | AC 24 V power for field devices 48 VA / 2 A |
|
|
68, 69, 70 | COM | PXC4.M16: Interface EIA-485 (M-bus, Modbus RTU) |
|
|
Term | on, off | Switch for bus termination |
|
|
Polar | on, off | Switch for polarization |
|
|
75 to 86 | DOx | Relay outputs | 11 | 1…4 |
