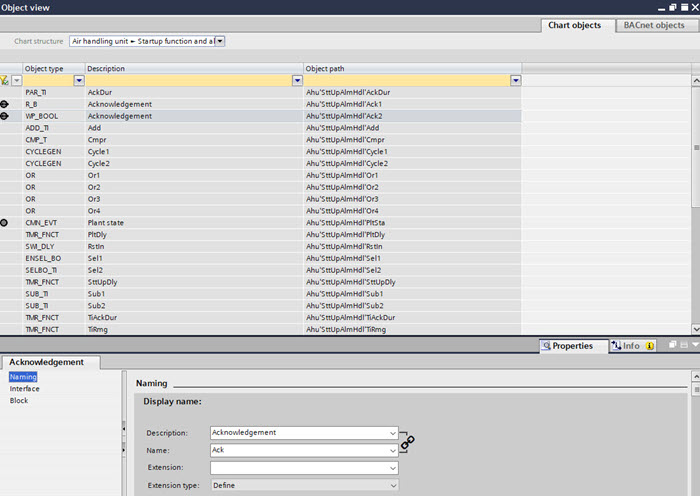

Chart objects list
The Chart objects list shows all plants and program blocks according to control program structure.
Select a plant or a program block from the Chart structure drop down-list box to display its chart objects.
Column | Description |
|---|---|
Object type | The object type of the chart object. |
Description | The description of the chart object. |
Object path | The full object path of the chart object. |
Navigate to a chart object in the Programming editor
- Do one of the following:
- Right-click a chart object in the list and select Show in program.
- Double-click a chart object in the list.
- The corresponding element is shown in the Programming editor, if it is represented in the chart.
