Desigo CC name mapping

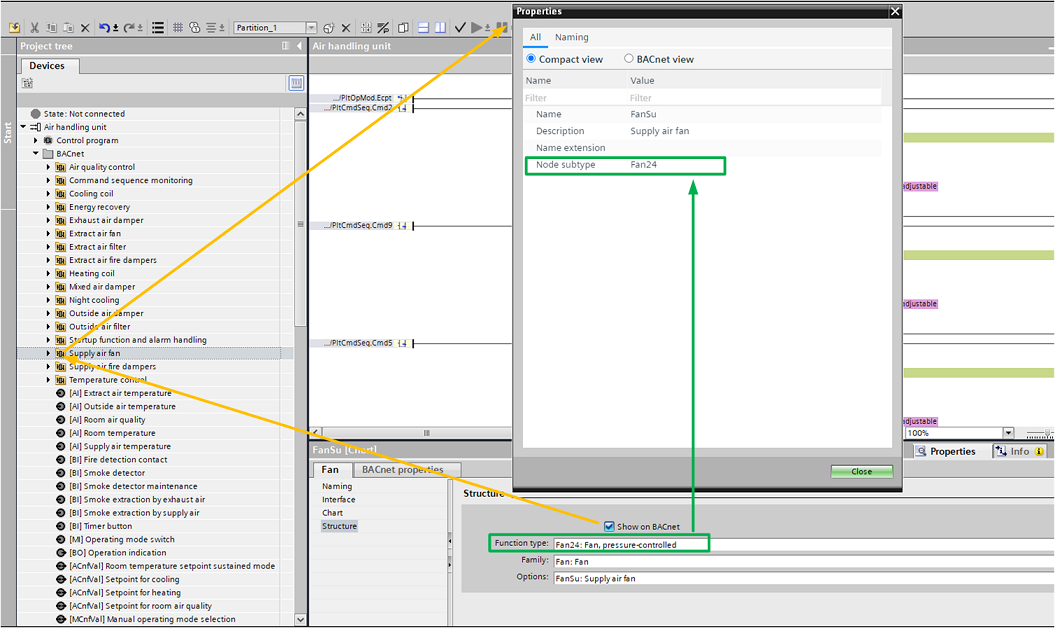

When you select the checkbox Show on BACnet:

A folder with the name and description of the chart, e.g. Supply air fan, is created in the Project tree.
The Function type of the chart, e.g. Fan24, is written into the property Node subtype of the folder. This property is the key for Desigo CC. See the tables below.

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
AFil21	Air filter, with filter detector	AFil21	BA_Air_PXC_HQ_1		DYN_2D_Filter_Air_AFil21_All_001	BA_Air_PXC_HQ_1

AFil22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
AFil22	Air filter, with filter operating message	AFil22	BA_Air_PXC_HQ_1		DYN_2D_Filter_Air_AFil22_All_001	BA_Air_PXC_HQ_1

AFil23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
AFil23	Air filter, with differential pressure sensor and maintenance indication	AFil23	BA_Air_PXC_HQ_1		DYN_2D_Filter_Air_AFil23_All_001	BA_Air_PXC_HQ_1

AQualCtr21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
AQualCtr21	Air quality controller, control of the mixed air damper and 2nd fan speed	AQualCtr21	BA_Air_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

Bo21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bo21	Boiler, 1-stage	Bo21	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Bo22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bo22	Boiler, 2-stage	Bo21	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Bo24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bo24	Boiler, modulating	Bo21	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Bo25

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bo25	Boiler, 1-stage, temperature setpoint	Bo25	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Bo27

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bo27	Boiler, 1-stage, modulating pump	Bo21	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Bo28

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bo28	Boiler, 8-stage	Bo21	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Bu21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bu21	Burner interface, enable output	Bu21	BA_Heating_PXC_HQ_1		DYN_2D_Burner_None_Bu21_All_001	BA_Heating_PXC_HQ_1

Bu22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bu22	Burner interface, enable output 2-stage	Bu22	BA_Heating_PXC_HQ_1		DYN_2D_Burner_None_Bu22_All_001	BA_Heating_PXC_HQ_1

Bu24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bu24	Burner interface, enable and modulating outputs	Bu24	BA_Heating_PXC_HQ_1		DYN_2D_Burner_None_Bu24_All_001	BA_Heating_PXC_HQ_1

Bu25

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Bu25	Burner interface, enable and setpoint outputs	Bu25	BA_Heating_PXC_HQ_1		DYN_2D_Burner_None_Bu25_All_001	BA_Heating_PXC_HQ_1

Ccl21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Ccl21	Chilled water cooling coil, temperature-controlled	Ccl21	BA_Air_PXC_HQ_1		DYN_2D_Cooling Coil_Water_None_Ccl21_Horizontal_001	BA_Air_PXC_HQ_1

Ccl23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Ccl23	Chilled water cooling coil, temperature-controlled, humidity-controlled	Ccl21	BA_Air_PXC_HQ_1		DYN_2D_Cooling Coil_Water_None_Ccl21_Horizontal_001	BA_Air_PXC_HQ_1

Cds21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Cds21	Condenser, minimum inlet temperature control	Cds21	BA_Cooling_PXC_HQ_1		DYN_2D_Condenser_None_Cds21_Left_001	BA_Cooling_PXC_HQ_1

CenOpMod21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
CenOpMod21	Central operating mode, data exchange with rooms (TRA integration), via grouping mechanism	CenOpMod21	BA_Room_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

CenSsnCmp21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
CenSsnCmp21	Central seasonal compensation 21, summer/winter compensation, with central outside air temperature	CenSsnCmp21	BA_Room_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

CenWthStn21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
CenWthStn21	Central weather station 21, measurements for outside air temperature, brightness, solar radiation, wind speed, precipitation	CenWthStn21	BA_Room_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

CmdSeqMon21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
CmdSeqMon21	Command sequence monitoring	CmdSeqMon21	BA_Air_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

Ch21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Ch21	Chiller, with external refrigeration circuit control	Ch21	BA_Cooling_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_Cooling_PXC_HQ_1

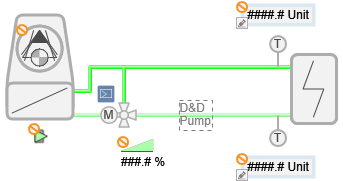

DhwCrgCrt21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
DhwCrgCrt21	Domestic hot water, charge circuit, internal heat exchanger	DhwCrgCrt21	BA_Water_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

DhwCrgCrt22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
DhwCrgCrt22	Domestic hot water, charge circuit, external heat exchanger	DhwCrgCrt21	BA_Water_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

DhwCrgCrt23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
DhwCrgCrt23	Domestic hot water, charge circuit, direct domestic hot water treatment	DhwCrgCrt21	BA_Water_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

DhwStk21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
DhwStk21	Domestic hot water storage tank	DhwStk21	BA_Water_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

Dmp21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Dmp21	Damper, open/close function & 2 BI for feedback	Dmp21	BA_Air_PXC_HQ_1		DYN_2D_Damper_Air_Dmp21_All_001	BA_Air_PXC_HQ_1

Dmp22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Dmp22	Damper, open/close function & 2 BI for feedback only	Dmp22	BA_Air_PXC_HQ_1		DYN_2D_Damper_Air_Dmp22_All_001	BA_Air_PXC_HQ_1

Dmp24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Dmp24	Damper, modulating control and position feedback	Dmp24	BA_Air_PXC_HQ_1		DYN_2D_Damper_Air_Dmp24_All_001	BA_Air_PXC_HQ_1

Dmp29

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Dmp29	Damper, open/close function & MI for feedback	Dmp29	BA_Air_PXC_HQ_1		DYN_2D_Damper_Air_Dmp29_All_001	BA_Air_PXC_HQ_1

DmpMx21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
DmpMx21	Mixed air damper, temperature-controlled	DmpMx21	BA_Air_PXC_HQ_1		DYN_2D_Damper_Air mixing_DmpMx21_All_001	BA_Air_PXC_HQ_1

Erc21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Erc21	Energy recovery, rotary heat exchanger, temperature-controlled	Erc21	BA_Air_PXC_HQ_1		DYN_2D_Energy recovery_None_Erc21_Central_002	BA_Air_PXC_HQ_1

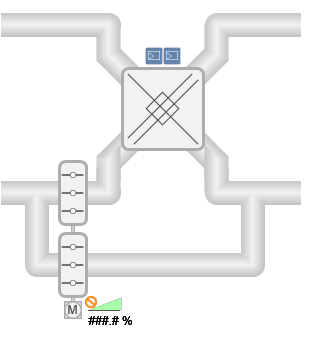

Erc22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Erc22	Energy recovery, plate heat exchanger, temperature-controlled	Erc22	BA_Air_PXC_HQ_1		DYN_2D_Energy recovery_None_Erc22_Central_001	BA_Air_PXC_HQ_1

Erc23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Erc23	Energy recovery, run-around coil, temperature-controlled	Erc23	BA_Air_PXC_HQ_1		DYN_2D_Energy recovery_None_Erc23_Central_001	BA_Air_PXC_HQ_1

Evp21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Evp21	Evaporator, outlet temperature control	Evp21	BA_Cooling_PXC_HQ_1		DYN_2D_Evaporator_None_Evp21_Right_001	BA_Cooling_PXC_HQ_1

Fan21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fan21	Fan, 1-speed	Fan21	BA_Air_PXC_HQ_1		DYN_2D_Fan_Air_Fan21_All_001	BA_Air_PXC_HQ_1

Fan22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fan22	Fan, 2-speed	Fan22	BA_Air_PXC_HQ_1		DYN_2D_Fan_Air_Fan22_All_001	BA_Air_PXC_HQ_1

Fan24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fan24	Fan, pressure-controlled	Fan24	BA_Air_PXC_HQ_1		DYN_2D_Fan_Air_Fan24_All_001	BA_Air_PXC_HQ_1

Fan25

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fan25	Fan, modulating control	Fan25	BA_Air_PXC_HQ_1		DYN_2D_Fan_Air_Fan25_All_001	BA_Air_PXC_HQ_1

Fan26

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fan26	Fan, air volume flow-controlled	Fan26	BA_Air_PXC_HQ_1		DYN_2D_Fan_Air_Fan26_All_001	BA_Air_PXC_HQ_1

Fdp21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fdp21	Fire damper, open/close function & 2 BI for feedback	Fdp21	BA_Air_PXC_HQ_1		dyn_2d_damper_fire_fdp21_all_001	BA_Air_PXC_HQ_1

Fdp22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fdp22	Fire damper, open/close function & 2 BI for feedback only	Fdp22	BA_Air_PXC_HQ_1		DYN_2D_Damper_Fire_Fdp22_All_001	BA_Air_PXC_HQ_1

Fdp29

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fdp29	Fire damper, open/close function & MI for feedback	Fdp29	BA_Air_PXC_HQ_1		DYN_2D_Damper_Fire_Fdp29_All_001	BA_Air_PXC_HQ_1

Fdp30

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Fdp30	Fire damper, open/close function & MI for feedback only	Fdp30	BA_Air_PXC_HQ_1		DYN_2D_Damper_Fire_Fdp30_All_001	BA_Air_PXC_HQ_1

FdpGrp21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
FdpGrp21	Fire damper group, 1 command and 16 dampers with feedback only	FdpGrp21	BA_Air_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

HCChovr21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HCChovr21	Heating/cooling changeover function	HCChovr21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

Hcl21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Hcl21	Hot water heating coil, temperature-controlled	Hcl21	BA_Air_PXC_HQ_1		DYN_2D_Heating Coil_Water_Hcl21_None_Horizontal_001	BA_Air_PXC_HQ_1

Hcl22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Hcl22	Electric heating coil, temperature-controlled	Hcl22	BA_Air_PXC_HQ_1		DYN_2D_Heating Coil_Electric_Hcl22_All_001	BA_Air_PXC_HQ_1

Hcrv21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Hcrv21	Heating curve, flow temperature setpoint calculation, with HCRV	Hcrv21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Hcrv_None_All_001	BA_HVAC_PXC_HQ_1

Hcrv22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Hcrv22	Heating curve, flow temperature setpoint calculation, with CHAR_LIN	Hcrv22	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Hcrv_None_All_001	BA_HVAC_PXC_HQ_1

Hcrv23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Hcrv23	Heating curve, flow temperature setpoint calculation, with CHAR	Hcrv23	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Hcrv_None_All_001	BA_HVAC_PXC_HQ_1

HExg21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HExg21	Heat exchanger, temperature-controlled, with primary valve and secondary pump	HExg21	BA_Heating_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

HuCasCtr21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HuCasCtr21	Humidity cascade controller, relative room/extract humidity and absolute supply humidity	HuCasCtr21	BA_Air_PXC_HQ_1		DYN_All_Status_HuCasCtr21_None_All_001	BA_Air_PXC_HQ_1

Hum22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Hum22	Humidifier, humidity-controlled, with limitation controller	Hum22	BA_Air_PXC_HQ_1		DYN_2D_Humidifier_Electric_Hum22_Horizontal_001	BA_Air_PXC_HQ_1

HuSuCtr21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HuSuCtr21	Supply humidity controller, relative supply humidity	HuSuCtr21	BA_Air_PXC_HQ_1		DYN_All_Status_HuSuCtr21_None_All_001	BA_Air_PXC_HQ_1

HydCrtC21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HydCrtC21	Hydraulic circuit for cooling, flow temperature control	HydCrtC21	BA_Cooling_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

HydCrtH21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HydCrtH21	Hydraulic circuit for heating, flow temperature control	HydCrtH21	BA_Heating_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

HydCrtHC21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HydCrtHC21	Hydraulic circuit for heating/cooling, flow temperature control	HydCrtHC21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

HydCrtHC31

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
HydCrtHC31	Hydraulic circuit for heating/cooling, Intelligent Valve, flow temperature controller	HydCrtHC31	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

LglPrev21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
LglPrev21	Legionella prevention	LglPrev21	BA_Water_PXC_HQ_1		DYN_All_Control Function_LglPrev21_None_All_001	BA_Water_PXC_HQ_1

Mntn21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Mntn21	Maintenance, operating hours-dependent	Mntn21	BA_Air_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

NgtC21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
NgtC21	Night cooling, based on the operating mode in the rooms and temperature values	NgtC21	BA_HVAC_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

PrfDet21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
PrfDet21	Profile determination for 2 generators, 1-stage	PrfDet21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

PrfDet22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
PrfDet22	Profile determination for 2 generators, 2-stage	PrfDet21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

PrfDet23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
PrfDet23	Profile determination for 2 generators, 8-stage	PrfDet21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

PrfDet24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
PrfDet24	Profile determination for 4 generators, 1-stage	PrfDet21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

Pu21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Pu21	Pump, 1-speed	Pu21	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_Pu21_All_001	BA_HVAC_PXC_HQ_1

Pu24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Pu24	Pump, pressure-controlled	Pu24	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_Pu24_All_001	BA_HVAC_PXC_HQ_1

Pu25

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Pu25	Pump, modulating control	Pu25	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_Pu25_All_001	BA_HVAC_PXC_HQ_1

Pu26

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Pu26	Pump, temperature-controlled	Pu26	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_Pu26_All_001	BA_HVAC_PXC_HQ_1

RfCrt21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
RfCrt21	Refrigeration circuit, external control	RfCrt21	BA_Cooling_PXC_HQ_1		DYN_2D_Chiller_None_RfCrt21_Central_001	BA_Cooling_PXC_HQ_1

ScaPrt21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
ScaPrt21	Scalding protection	ScaPrt21	BA_Water_PXC_HQ_1		DYN_All_Frame_Any Function_None_All_001	BA_HVAC_PXC_HQ_1

SplyAir21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyAir21	Supply chain air, data exchange with rooms (TRA integration), via grouping mechanism	SplyAir21	BA_Room_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

SplyChw21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyChw21	Supply chain chilled water, data exchange with rooms (TRA integration), via grouping mechanism	SplyChw21	BA_Room_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

SplyChw22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyChw22	Supply chain chilled water, data exchange with other plants, with valve position evaluation	SplyChw22	BA_Cooling_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

SplyChw23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyChw23	Supply chain chilled water, data exchange with other plants, with setpoint evaluation of chilled water demand	SplyChw23	BA_Cooling_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

SplyHw21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyHw21	Supply chain hot water, data exchange with rooms (TRA integration), via grouping mechanism	SplyHw21	BA_Room_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

SplyHw22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyHw22	Supply chain hot water, data exchange with other plants, with valve position evaluation, heating curve	SplyHw22	BA_Heating_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

SplyHw23

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SplyHw23	Supply chain hot water, data exchange with other plants, with setpoint evaluation of hot water demand	SplyHw23	BA_Heating_PXC_HQ_1		DYN_All_Button_Navigation_Group_Central_001	Global_Base_HQ_1

StepUpDn21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
StepUpDn21	Step up/down, temperature deviation integral criterion	StepUpDn21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

StepUpDn22

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
StepUpDn22	Step up/down, temperature deviation with delay	StepUpDn21	BA_HVAC_PXC_HQ_1		DYN_All_Control Function_Configuration_None_All_001	BA_HVAC_PXC_HQ_1

SttUpAlmHdl21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SttUpAlmHdl21	Startup function and alarm handling, with startup and plant delay, automatic acknowledge and reset, with inputs and outputs	SttUpAlmHdl21	BA_HVAC_PXC_HQ_1		DYN_2D_Status_SttUpAlmHdl21_All_001	BA_HVAC_PXC_HQ_1

SttUpAlmHdl21a

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
SttUpAlmHdl21a	Startup function and alarm handling, with startup and plant delay, automatic acknowledge and reset, without inputs and outputs	SttUpAlmHdl21	BA_HVAC_PXC_HQ_1		DYN_2D_Status_SttUpAlmHdl21_All_001	BA_HVAC_PXC_HQ_1

TCasCtr21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
TCasCtr21	Temperature cascade controller, supply air setpoint high/low and for energy recovery	TCasCtr21	BA_Air_PXC_HQ_1		DYN_All_Status_TCasCtr21_None_All_001	BA_Air_PXC_HQ_1

TSuCtr21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
TSuCtr21	Supply air temperature controller	TSuCtr21	BA_Air_PXC_HQ_1		DYN_All_Status_TCasCtr21_None_All_001	BA_Air_PXC_HQ_1

TwnPu21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
TwnPu21	Twin pump, 1-speed	TwnPu21	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_TwnPu21_All_001	BA_HVAC_PXC_HQ_1

TwnPu24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
TwnPu24	Twin pump, pressure-controlled	TwnPu24	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_TwnPu24_All_001	BA_HVAC_PXC_HQ_1

TwnPu25

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
TwnPu25	Twin pump, modulating control	TwnPu25	BA_HVAC_PXC_HQ_1		DYN_2D_Pump_None_TwnPu25_All_001	BA_HVAC_PXC_HQ_1

Vlv21

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Vlv21	Valve, open/close function & 2 BI for feedback	Vlv21	BA_HVAC_PXC_HQ_1		DYN_2D_Valve_None_Vlv21_All_001	BA_HVAC_PXC_HQ_1

Vlv24

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Vlv24	Valve, modulating control & position feedback	Vlv24	BA_HVAC_PXC_HQ_1		DYN_2D_Valve_None_Vlv24_All_001	BA_HVAC_PXC_HQ_1

Vlv29

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Vlv29	Valve, open/close function & MI for feedback	Vlv29	BA_HVAC_PXC_HQ_1		DYN_2D_Valve_None_Vlv29_All_001	BA_HVAC_PXC_HQ_1

Vlv31

ABT Site		Desigo CC
Name (node subtype)	Description	Function name	Library name	Symbol	Symbol name	Symbol library
Vlv31	Valve, Intelligent Valve, dynamic control valve	Vlv31	BA_HVAC_PXC_HQ_1		DYN_2D_Valve_None_Vlv31_All_001	BA_HVAC_PXC_HQ_1
