All devices communicate via IP and BACnet/SC

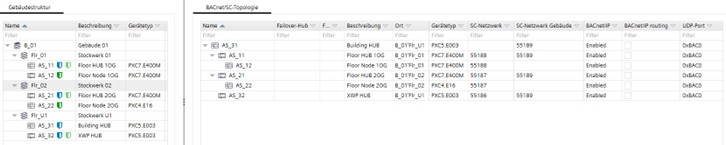

Configuration ABT Site – BACnet/SC
Shows the BACnet/SC configuration in ABT Site. BACnet/IP is enabled on each device. BACnet/IP routing is disabled (cleared) on all devices.
Topology and data communication

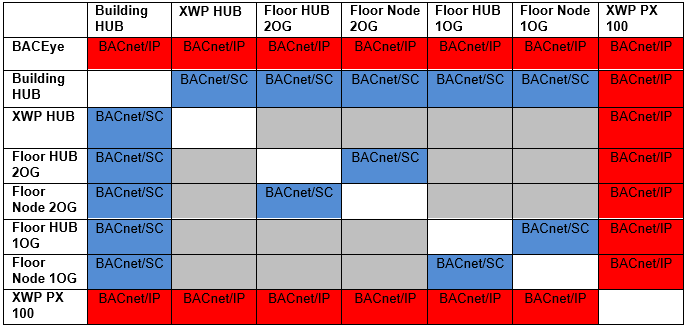

Illustrates how data is transmitted between devices.

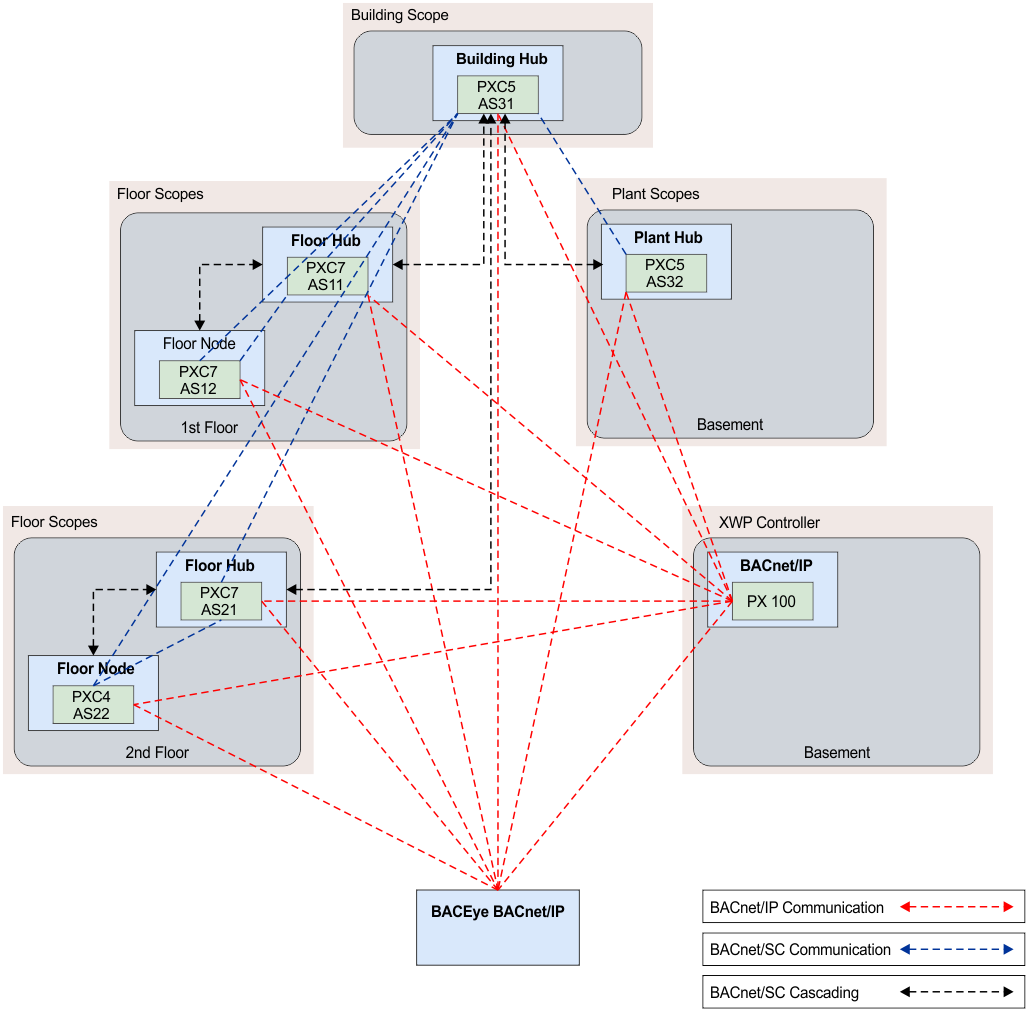

The BACnet/SC connection from the building hub to the floor node illustrates a visual communication path to depict functionality only. Data is always transmitted via the floor hub!
Status of BACnet/SC implementation | ||
|---|---|---|
| BACnet/IP | BACnet/SC compliant |
Building hub | Yes | No |
Basement (Plant hub) | Yes | No |
XWP controller | Yes | No |
1. floor | Yes | No |
2. floor | Yes | No |
