Transition floor hub, 1st floor to BACnet/SC

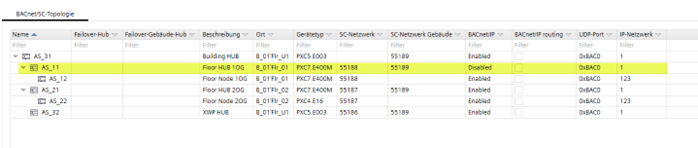

Configuration ABT Site – BACnet/SC

Shows the BACnet/SC configuration in ABT Site. BACnet/IP is set to Disabled on device AS_11 – Floor Hub 1st floor, while the others are set to “Enabled”. BACnet/IP routing is disabled (cleared) on all devices.

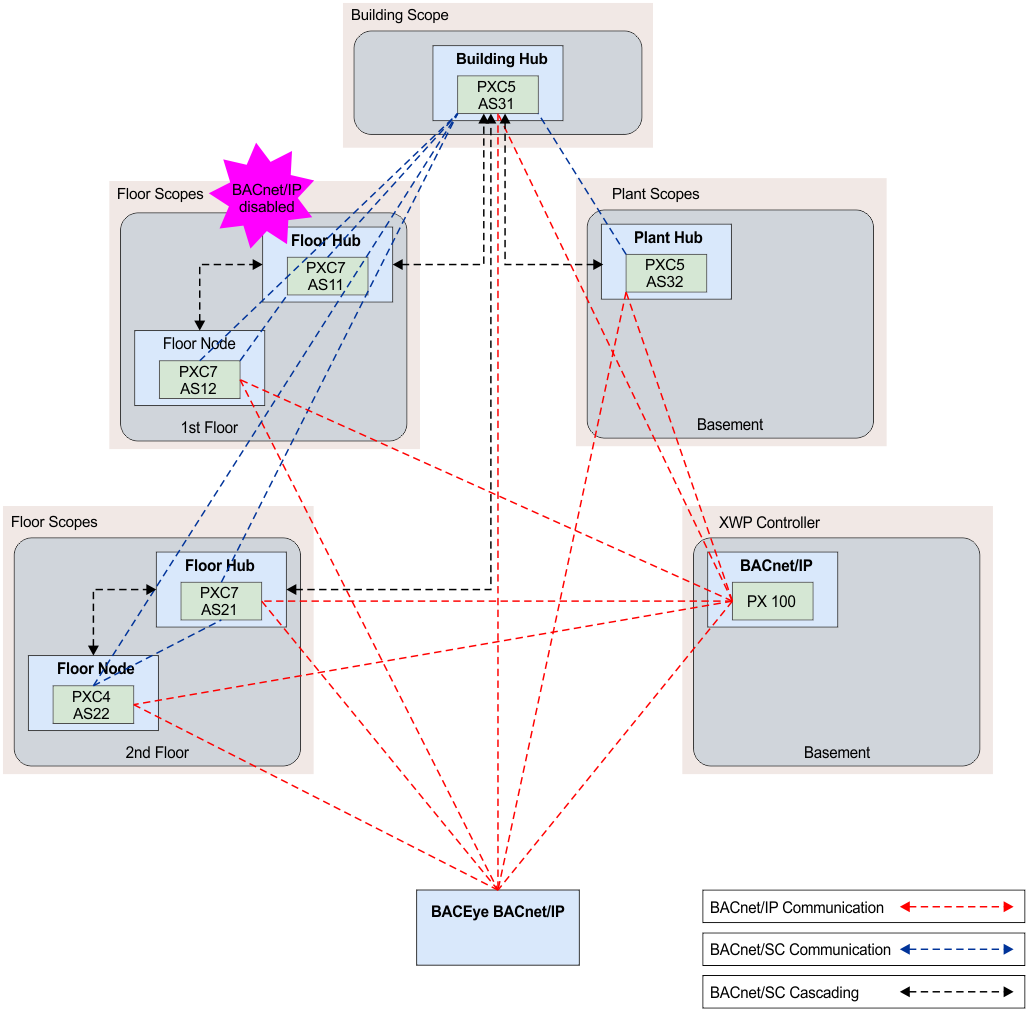

Topology and data communication

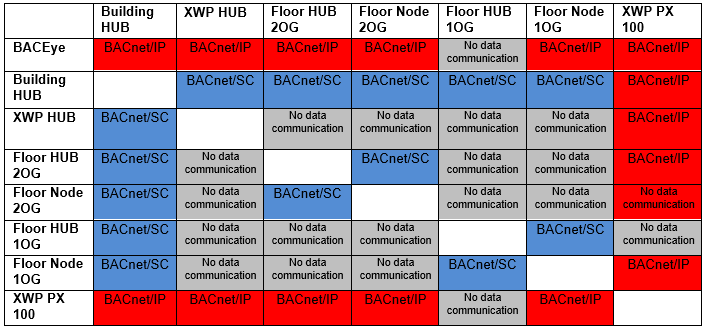

Illustrates how data is transmitted between devices. Disabling BACnet/IP on AS_11 – Floor Hub 1st floor renders the device and BACnet objects invisible from the BACnet/IP viewpoint. The device can no longer be accessed via BACEye and the BACnet reference from the XWP PX 100 controller on Floor hub, 1st floor no longer operates (reliability).



info

The BACnet/SC connection from the building hub to the floor node illustrates a visual communication path to depict functionality only. Data is always transmitted via the floor hub!



Status of BACnet/SC implementation



BACnet/IP

BACnet/SC compliant

Building hub

Yes

No

Basement (Plant hub)

Yes

No

XWP controller

Yes

No

1. floor

Yes

No

2. floor

Yes

No
