Transition building hub to BACnet/SC

Configuration ABT Site – BACnet/SC

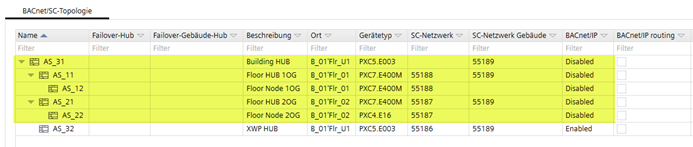

Shows the BACnet/SC configuration in ABT Site. BACnet/IP is enabled on device AS_32 – XWP hub, but the other devices are disabled. In addition, BACnet/IP routing is disabled on all devices.



Topology and data communication

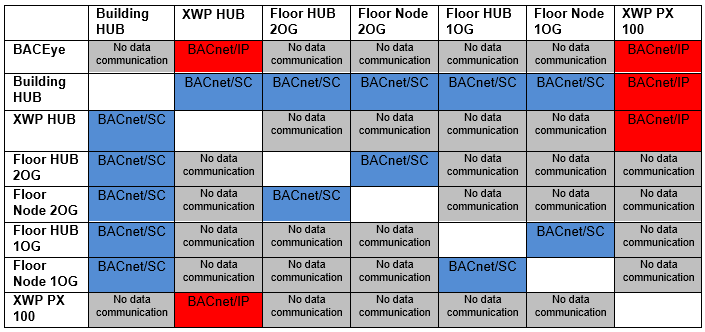

Illustrates which devices can communicate data as well how the data is transmitted. Enabling BACnet/IP on device AS_32 – XWP hub render the device with BACnet objects visible via BACnet/IP. The remaining controller cannot be reached via BACnet/IP and are therefore not visible.



info

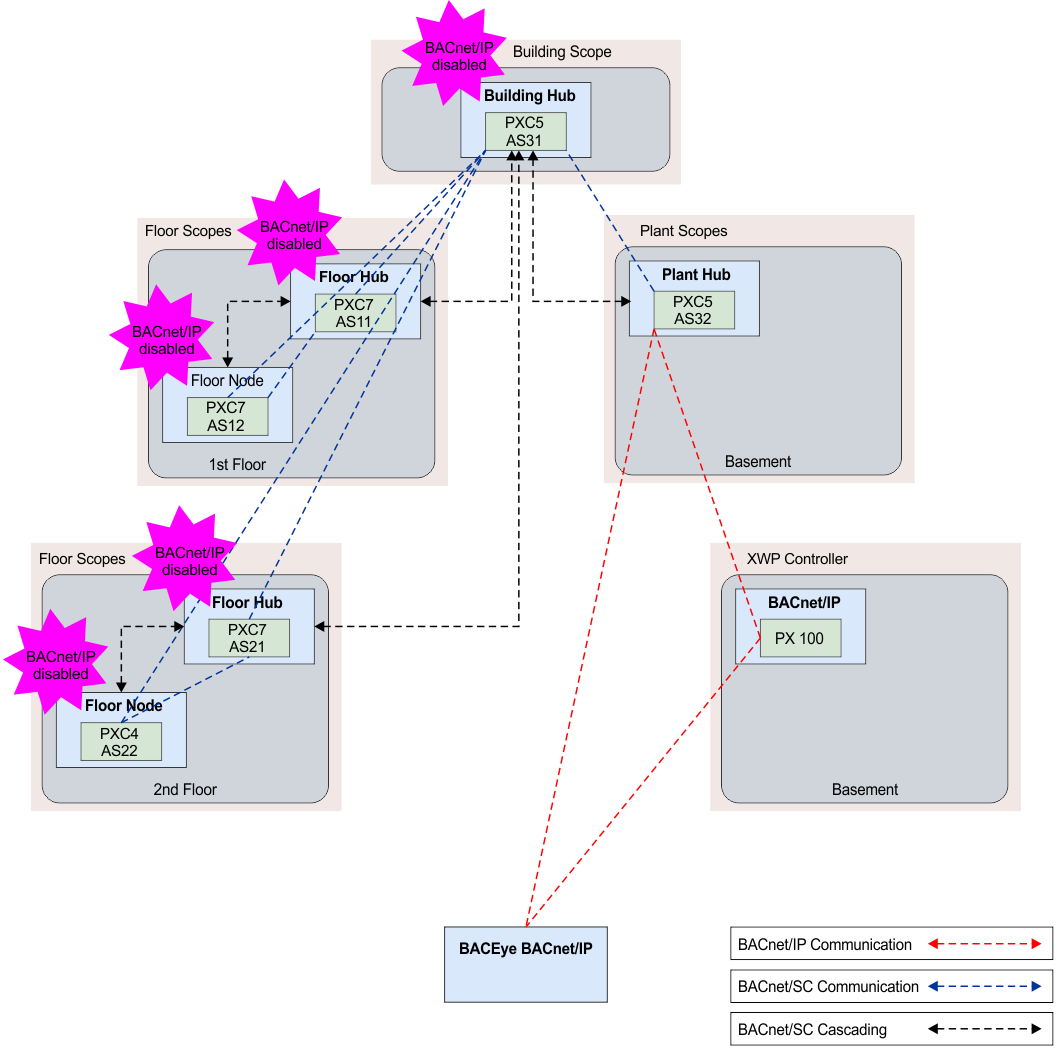

The BACnet/SC connection from the building hub to the floor node illustrates a visual communication path to depict functionality only. Data is always transmitted via the floor hub!



Status of BACnet/SC implementation



BACnet/IP

BACnet/SC compliant

Building hub

No

Yes

Basement (Plant hub)

Yes

No

XWP controller

Yes

No

1. floor

No

Yes

2. floor

No

Yes
