Example of the device chart RDG264KN

Example of the device chart RDG264KN

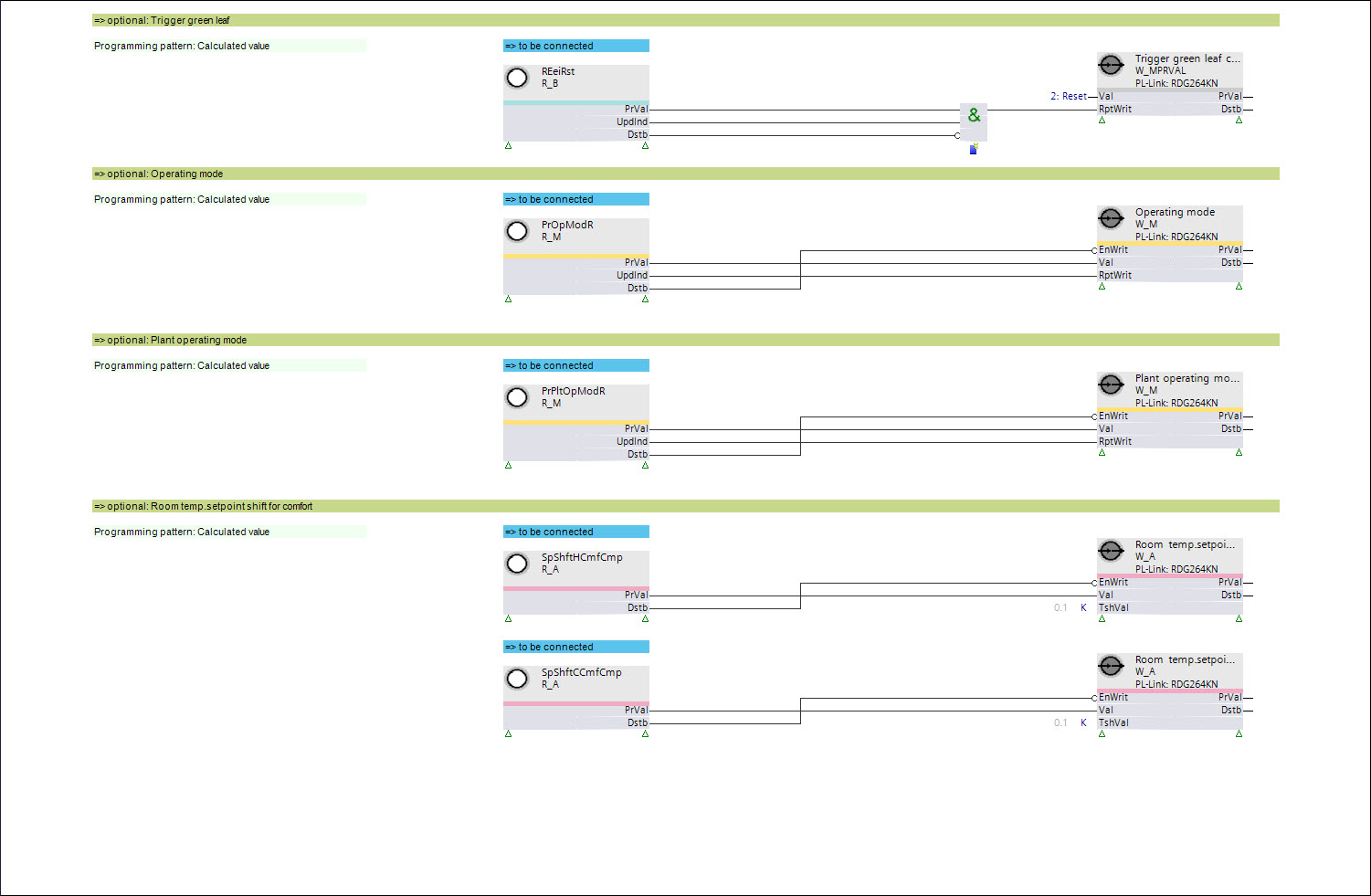

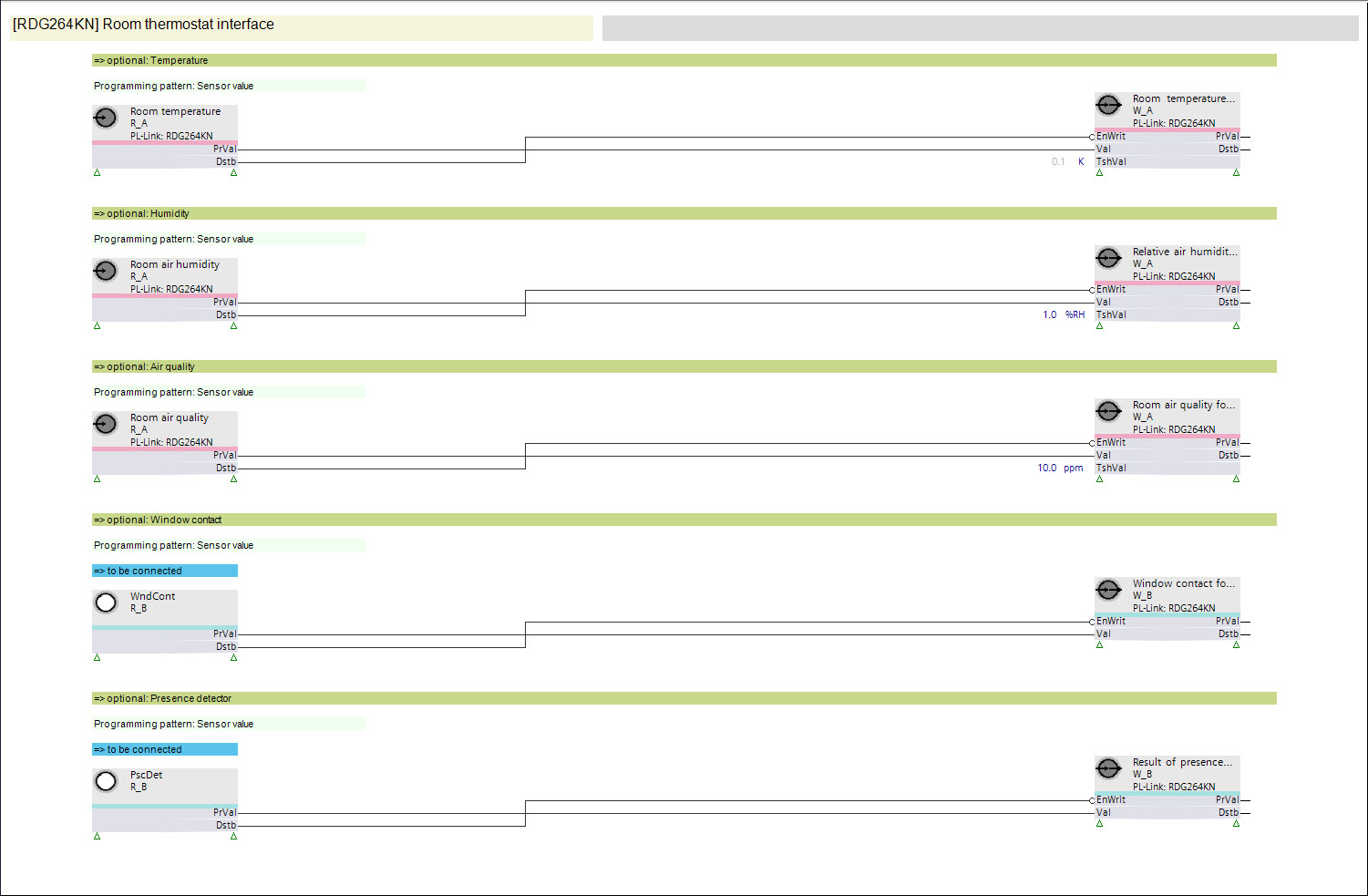

Example and layout of the programmed device chart for the RDG264KN, aligned with the configuration according to the instance in the Field Device Catalog.

• Read function blocks from the PL-Link device
  The read function blocks to the left are pre-assigned to the corresponding BACnet objects of the PL-Link device or prepared for a manual assignment.
• Write / command function blocks to the PL-Link device
  The write / command function blocks to the right are all pre-assigned to the corresponding BACnet objects of the PL-Link device.
• Read / command function blocks from/to the plant
  The read / command function blocks in the middle are prepared to be manually assigned to the corresponding plant BACnet objects.

The same layout is applied correspondingly to all PL-Link instances in the Field Device Catalog.
