M-bus topologies
The M-bus permits various network topologies. The devices can be connected to the level converter in a line, bus, star, or tree topology, or a combination thereof.
Ring topology is not permitted.

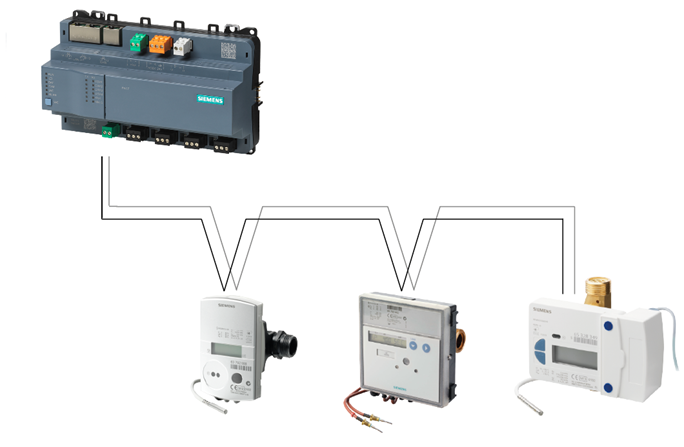

Line topology |
|

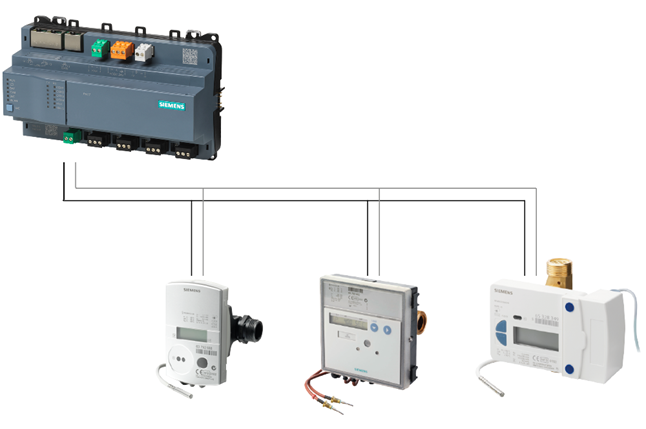

Bus topology |
|

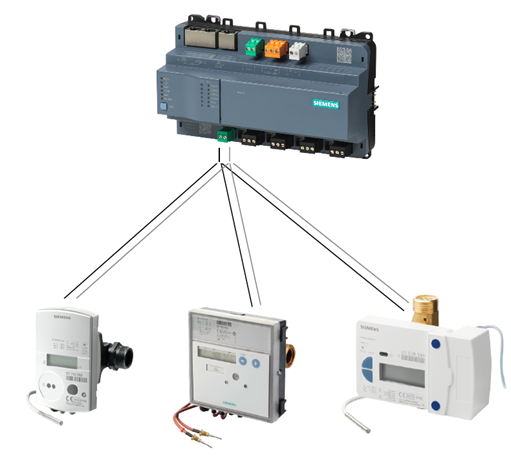

Star topology |
|

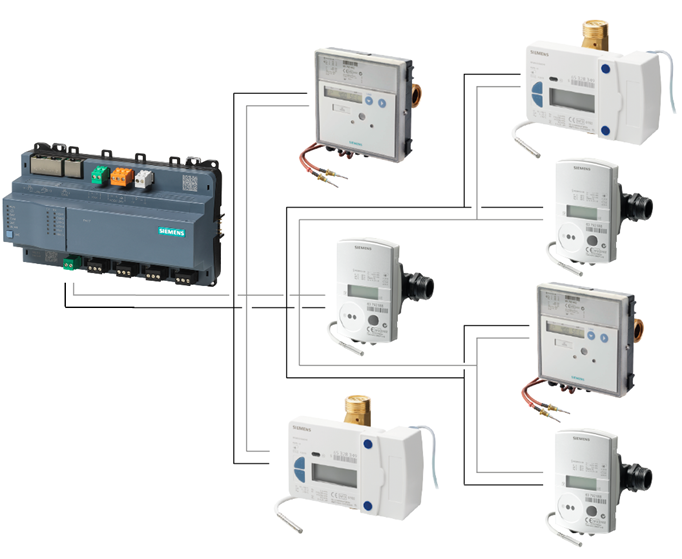

Tree topology |
|

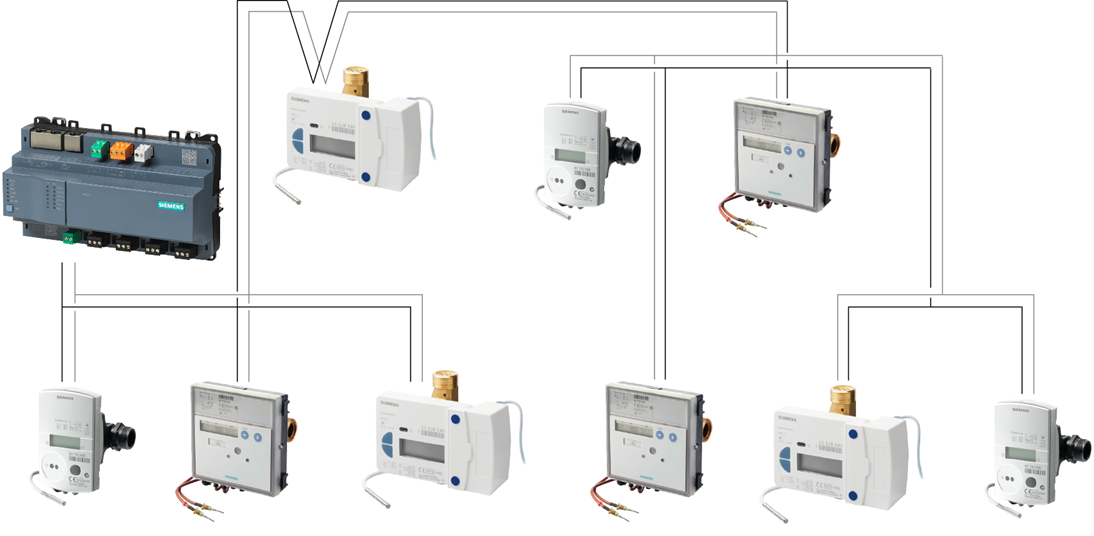

Combination of topologies |
|

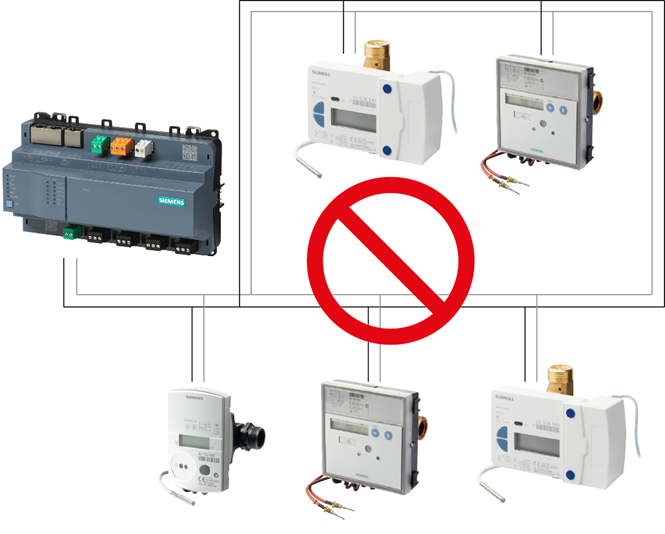

Ring topology |
|
Bus cable polarity is not relevant, simplifying installation.
