Pre-configuration file

You can select an existing pre-configuration file in the Settings > Device default > Device. Pre-configuration definition files are used to configure library content in the selected project.

The pre-configuration files are sorted by description and only the highest version of each file description is listed in the drop-down list.
Each project contains only one active pre-configuration file at a time.

Selecting a pre-configuration file

Go to Settings > Device default > Device.
In the Pre-configuration definition field, select an existing pre-configuration file from the drop-down list.

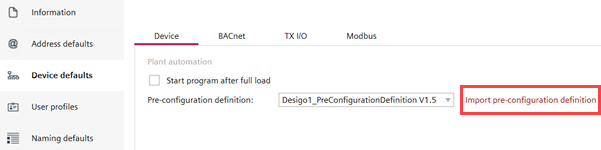

To import a user-defined pre-configuration file, click Import pre-configuration definition.

Select the required pre-configuration definition file from your desktop and click Open.

The pre-configuration file displays at the top of the drop-down list.

Replacing a manually imported pre-configuration file with an existing pre-configuration file

You have selected an existing pre-configuration file or imported a pre-configuration file.

Go to Settings > Device default > Device.

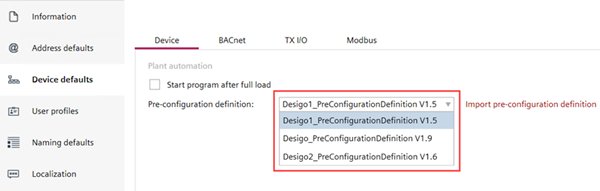

In the Pre-configuration definition field, select another pre-configuration file to replace the current selection.
A Replace pre-configuration definition dialog box displays with the old and new pre-configuration file details, requesting the user to confirm the replacement action.

Click OK.
