TX/IO compatibility
The TX/IO modules hardware version can be interpreted easily with its corresponding series.

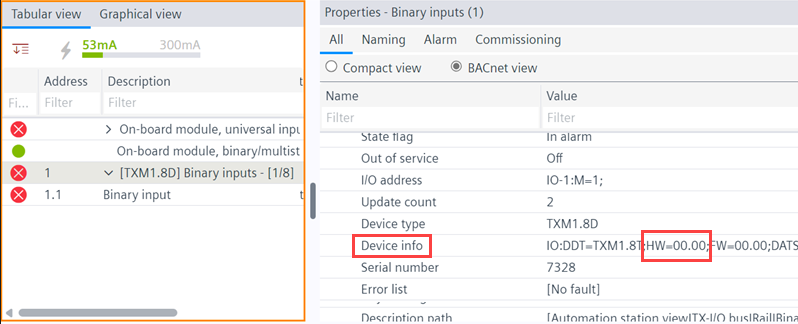

The TX/IO hardware version is available in the property Device info. The property Device info is an online property only.
Series | Hardware version |
|---|---|
Series Z | 00 |
Series A | 01 |
Series B | 02 |
Series C | 03 |
Series D | 04 |
Series E | 05 |
The series information is visible on the device The hardware version is an online property.

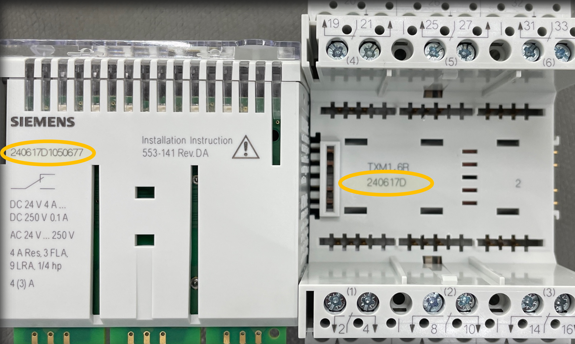

Find a serial number on the TXM module
How to read the numbers
For example, the serial number on the device is 240617D1050677:
- 24 - last two digits of the year (2024)
- 06 - month (June)
- 17 - day (17th day of June)
- D - series (see table above)
- 1050677 - unique number for model type

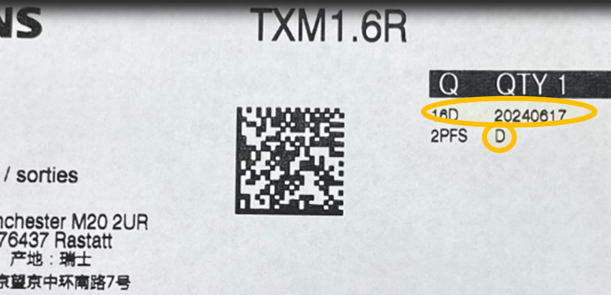

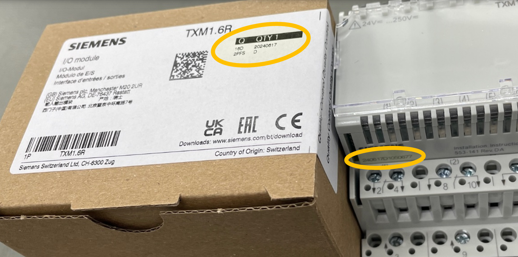

How to read the numbers from the packaging label
For example, D represents series (see table above) and 20240617 represents:
- 2024 - year
- 06 - month (June)
- 17 - day (17th day of June)
