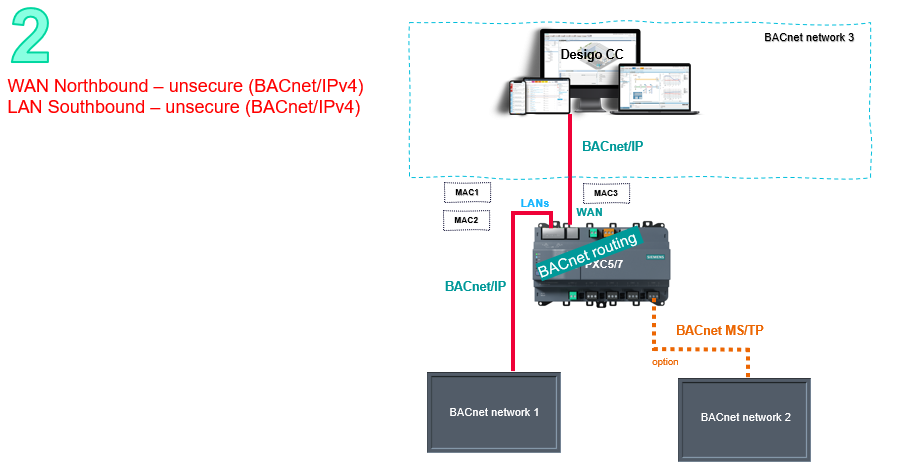

Scenario 2: Two BACnet networks on different Ethernet ports
BACnet networks are logically routed and physically separated. BACnet routing is only possible between the Ethernet ports: /IP on one Ethernet port and /IP on the WAN port.
Configure flexible ports
The WAN and LAN port has unencrypted BACnet/IP traffic and is not intended to use for external network access.

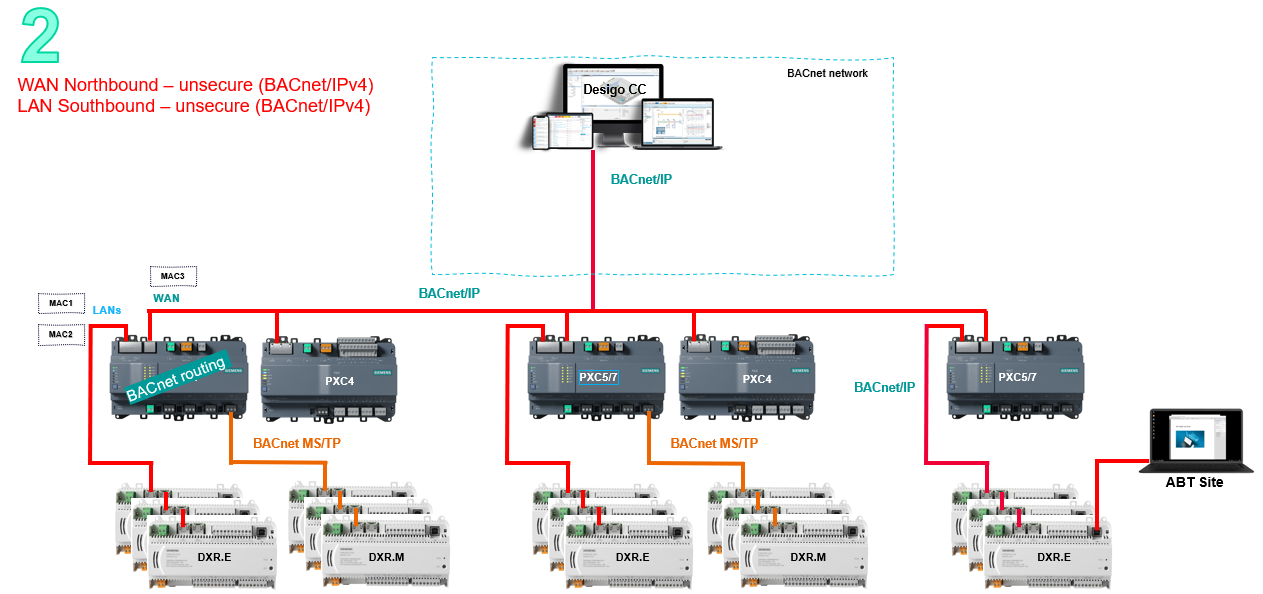

Separate BACnet/IP traffic on IT/OT networks
This topology supports:
- Separating BACnet/IP traffic on individual Ethernet ports with individual MAC addresses.
- Only the PXC4/5/7 devices are visible to IT network monitoring.
- Only BACnet application data between PXC5/7 Ethernet ports (BACnet data broker).
