Central solar radiation from weather station (CenSolWths11)
Overview

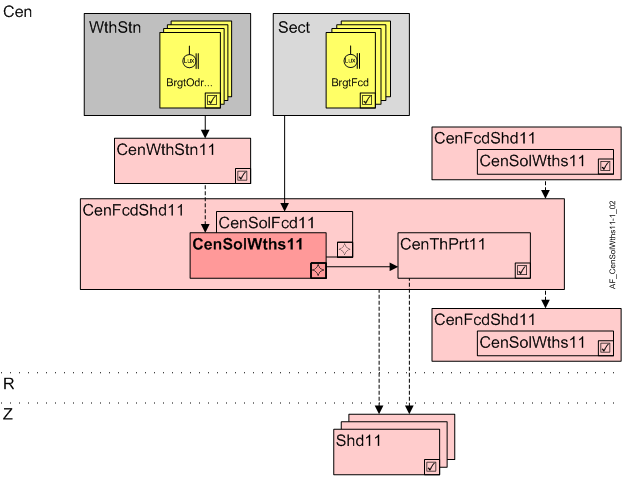

Application function "Central solar radiation from weather station 11" (CenSolWths11) calculates solar radiation against the facade based on a central global radiation sensor on a weather station.
Cen | Central functions |
WthStn | Weather station |
GlbSolRdn | Global solar radiation |
Sect | Facade sector |
SolRdnFcd | Solar radiation in the facade sector |
CenWthStn11 | Central weather station 11, measurements for outside air temperature, brightness, solar radiation, wind speed, precipitation |
CenFcdShd11 | Central facade shading for automatic 11 |
CenSolWths11 | Central solar radiation from weather station 11 |
CenSolFcd11 | Central solar radiation on facade 11 |
CenThPrt11 | Central thermal protection 11 |
R | Room |
Z | Shading zone in room segment |
Shd11 | Shading 11, for shading and daylight use with venetian blinds or awnings, group member in a facade sector |
Function
A sensor on a weather station measures global radiation.
The AF calculates global radiation against the facade.
Note: AF CenGlrPrt11 provides the calculated effective solar radiation on the facade in SolRdnEff.
Hierarchical grouping
This AF supports hierarchical grouping. For detailed information, see Hierarchical grouping.
Configuration
None.
Interface
Interface | Description | Type | Ref. | Owner |
|---|---|---|---|---|
SolRdn | Solar radiation | AI | ◉ | Central function / Device |
Engineering and commissioning
Hierarchical grouping
Within CenFcd11, a nested AF CenSolWths11 is required for CenThPrt11.
It distributes its data to subordinate central AFs or directly to the connected room segments.
