Central emergency switch lighting (CenEmgSwiLgt11)
Overview
The application function "Central emergency switch for lighting 11" (CenEmgSwiLgt11) handles emergency operations using an emergency switch in one emergency sector.

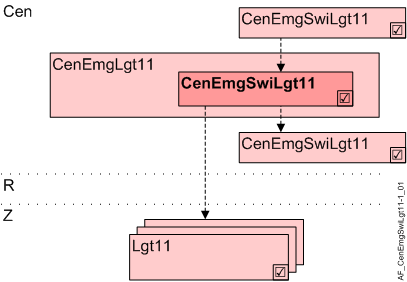

Cen | Central functions |
CenEmgLgt11 | Central emergency lighting 11. |
CenEmgSwiLgt11 | Central emergency switch for lighting 11 |
R | Room |
Z | Lighting zone in one room segment |
Lgt11 | Lighting 11, group members |
Function
The emergency operator can use a switch (fire service switch) with the positions enable/off/on.
- On: Lighting goes to the level defined in CenEmgCmdLgt.
- Off: Lighting is switched off.
- Enable: Lighting goes to the level prior to the emergency.
Hierarchical grouping
This AF supports hierarchical grouping. For detailed information, see Hierarchical grouping.
Configuration
None.
Interface
Interface | Description | Type | Ref. | Owner |
|---|---|---|---|---|
LgtEmgSwi | Emergency switch for lighting | MI | ◉ | Central function / Device |
Engineering and commissioning
- This AF requires CenEmgCmdLgt11
- The multistate input must be configured as follows:
1 = Enable, 2 = Off, 3 = On
