Central emergency luminaire function (CenEmgLmnr11)

Overview

The application function "Central emergency luminaire function 11, control and test function" (CenEmgLmnr11) handles operation and testing of emergency luminaires on the DALI bus.

Test results are saved in the emergency luminaires. The management station can trigger batch testing and test protocols.

The AF is only available in ABT Pro, since only PXC3...A room automation stations have a DALI interface.

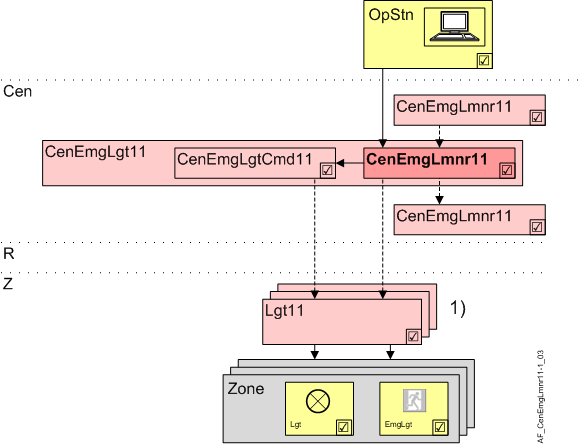

OpStn	Operator unit
Cen	Central functions
CenEmgLgt11	Central emergency lighting 11. This AF can be a group member of a superordinate AF CenOpLgt11 or the group manager for subordinate AFs CenOpLgt11.
CenEmgCmdLgt11 ¹⁾	Central emergency command for lighting 11
CenEmgLmnr11 ¹⁾	Central emergency luminaire function 11, control and test function
R	Room
Z	Lighting zone in one room segment
Lgt11 ¹⁾	Lighting 11, group members
Lgt	Lamp
EmgLgt	Emergency luminaires

¹⁾	CenEmgCmdLgt11 and CenEmgLmnr11 either act on AFs Lgt11 as group member or direct on lighting zones (BACnet objects) as group members. In the second case, ABT Pro is required for engineering.

Function

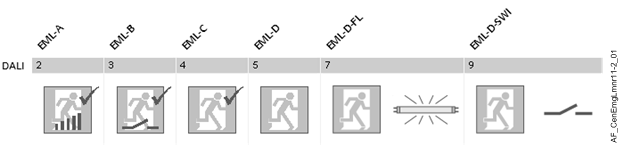

Supported emergency luminaires

Continuous switching (emergency luminaires continuously switched on)	Standby switching (emergency luminaires ON during a power outage)
EML-A	Emergency luminaires	EML-D	Emergency luminaires
EML-B	Emergency luminaires + dimmable lamps	EML-D-FL	Emergency luminaires + dimmable lamps
EML-C	Emergency luminaires + switchable lamps	EML-D-SWI	Emergency luminaires + switchable lamps

Continuous switching

(emergency luminaires continuously switched on)

Standby switching

(emergency luminaires ON during a power outage)

EML-A

Emergency luminaires

EML-D

Emergency luminaires

EML-B

Emergency luminaires + dimmable lamps

EML-D-FL

Emergency luminaires + dimmable lamps

EML-C

Emergency luminaires + switchable lamps

EML-D-SWI

Emergency luminaires + switchable lamps

Test and operation

DALI emergency luminaires have integrated test and operating functions. Depending on the actual device, only a portion of the list below is supported.

The AF works with grouping so that a large number of emergency luminaires can be tested simultaneously.

Enter the commands supported by the connected group members.

Possible commands

Ready.
State: Ready for entry of a command.
Start function test
Briefly sets the device to power outage state.
Start duration test
Sets the device to power outage state over a long period to test battery capacity.
Start short duration test
Sets the device to power outage state long enough to be able to calculate battery capacity without fully discharging the batteries.
Stop active test
Stops an on-going function or on-going continuous test.
Go to rest mode
Overrides active power outage state and switches off the device. The command may only be ran during an active power outage state; it helps to save batteries if the situation is safe.
Go to inhibit mode
Prevents the device from switch to the power outage state (starts an inhibit timers for 15 minutes). The command can only be run while power is available. It is used for scheduled power outages.
Cancel inhibit mode (Relight)
Rescinds the inhibit mode or reset mode and switches the device to emergency operation. This command can only be run during an active power outage state.
Reset inhibit mode
Rescinds the inhibit mode and switches the device to normal operation. The command can only be run while power is available.
Reset lamp op.hours
Resets the operating hours for the emergency luminaires.

Hierarchical grouping

This AF supports hierarchical grouping. For detailed information, see Hierarchical grouping.

Configuration

Parameter

Configures which functions/commands the connect emergency luminaires supports.

Description	Parameter	Default value
Function test	FnctTst	False
Duration test	DurTst	False
Short duration test	ShrtDurTst	False
Stop active test	StpTst	False
Rest mode	RestMod	False
Inhibit mode	InhMod	False
Cancel inhibit mode (Relight)	CnclInhMod	False
Reset inhibit mode	RstInhMod	False
Lamp operating hours	LampOph	False
Switched or dimmable lamp	LampSwiDim	False

Interface

Interface	Description	Type	Ref.	Owner
EmgLmnrCtl	Emergency luminaire control command 1:Ready 2:Start function test 3:Start duration test 4:Start short duration test 5:Stop active test 6:Go to rest mode 7:Go to inhibit mode 8:Cancel inhibit mode (Relight) 9:Reset inhibit mode 10:Reset lamp op.hours	MTrgVal	●	-
CenEmgLgtMst	Manager for central emergency lighting	GrpMaster	◉	CenEmgLgt11

Description

Type

Ref.

Owner

EmgLmnrCtl

Emergency luminaire control command

1:Ready
2:Start function test
3:Start duration test
4:Start short duration test
5:Stop active test
6:Go to rest mode
7:Go to inhibit mode
8:Cancel inhibit mode (Relight)
9:Reset inhibit mode
10:Reset lamp op.hours

MTrgVal

●

CenEmgLgtMst

Manager for central emergency lighting

GrpMaster

◉

CenEmgLgt11

Engineering and commissioning

The AF is unavailable on preloaded applications.

CenEmgCmdLgt11 must be used if using emergency luminaires together with switchable/dimmable lamps in order to be able to send a switch-off command.
