DXP2 and DXR2 MS/TP product description

DXP2.. and DXR2.. are compact, programmable room automation stations for HVAC, lighting and shading applications of which DXP2 are high temperature rated automation stations.

Every DXP2.. and DXR2.. room automation station has a fixed I/O mix and preloaded application types. The assortment of preloaded application types depends on the I/O mix of the room automation station.

Product description

DXR2.M09-1, Compact room automation station

  • 1 binary input and 2 universal inputs
  • 3 relays and 3 analog outputs
  • BACnet MS/TP communications
  • AC 230 V power supply

Order number: S55376-C116

Download data sheet: CM1N9206



DXR2.M09T-1, Compact room automation station

  • 1 binary input and 2 universal inputs
  • 4 triacs, 1 relay and 1 analog output
  • BACnet MS/TP communications
  • AC 230 V power supply

Order number: S55376-C117

Download data sheet: CM1N9206



DXR2.M10-1, Compact room automation station

  • 1 binary input and 2 universal inputs
  • 4 triacs and 3 relays
  • BACnet MS/TP communications
  • AC 230 V power supply

Order number: S55376-C115

Download data sheet: CM1N9206

DXR2.M10PL-1, Actuating room automation station
DXR2.M10PLX-1, Actuating room automation station

  • 1 binary input, 2 universal inputs and 1 pressure sensor
  • 4 triacs and 1 analog output
  • 30 respectively 60 data points for used physical I/Os and
    KNX PL-Link data points
  • BACnet MS/TP communications
  • AC 24 V power supply
  • Embedded damper actuator, 10 Nm

Order numbers:
DXR2.M10PL-102B (USA and Canada): S55376-C147
DXR2.M10PLX-102B (USA and Canada): S55376-C148

Download data sheet: A6V11259964

DXR2.M11-1, Compact room automation station

  • 1 binary input and 2 universal inputs
  • 6 triacs and 2 analog inputs
  • BACnet MS/TP communications
  • AC 24 V power supply

Order numbers:
DXR2.M11-101A (worldwide, without USA and Canada): S55376-C112
DXR2.M11-101B (USA and Canada): S55376-C122

Download data sheet: CM1N9207

DXR2.M12P-1, Compact room automation station
DXR2.M12PX-1, Compact room automation station

  • 1 binary input, 2 universal inputs and 1 pressure sensor
  • 6 triacs and 2 analog outputs
  • 30 respectively 60 data points for used physical I/Os and
    KNX PL-Link data points
  • BACnet MS/TP communications
  • AC 24 V power supply

Order numbers:
DXR2.M12P-102A (worldwide, without USA and Canada): S55376-C114
DXR2.M12P-102B (USA and Canada): S55376-C123
DXR2.M12PX-102A (worldwide, without USA and Canada): S55376-C144
DXR2.M12PX-102B (USA and Canada): S55374-C251

Download data sheet: CM1N9207

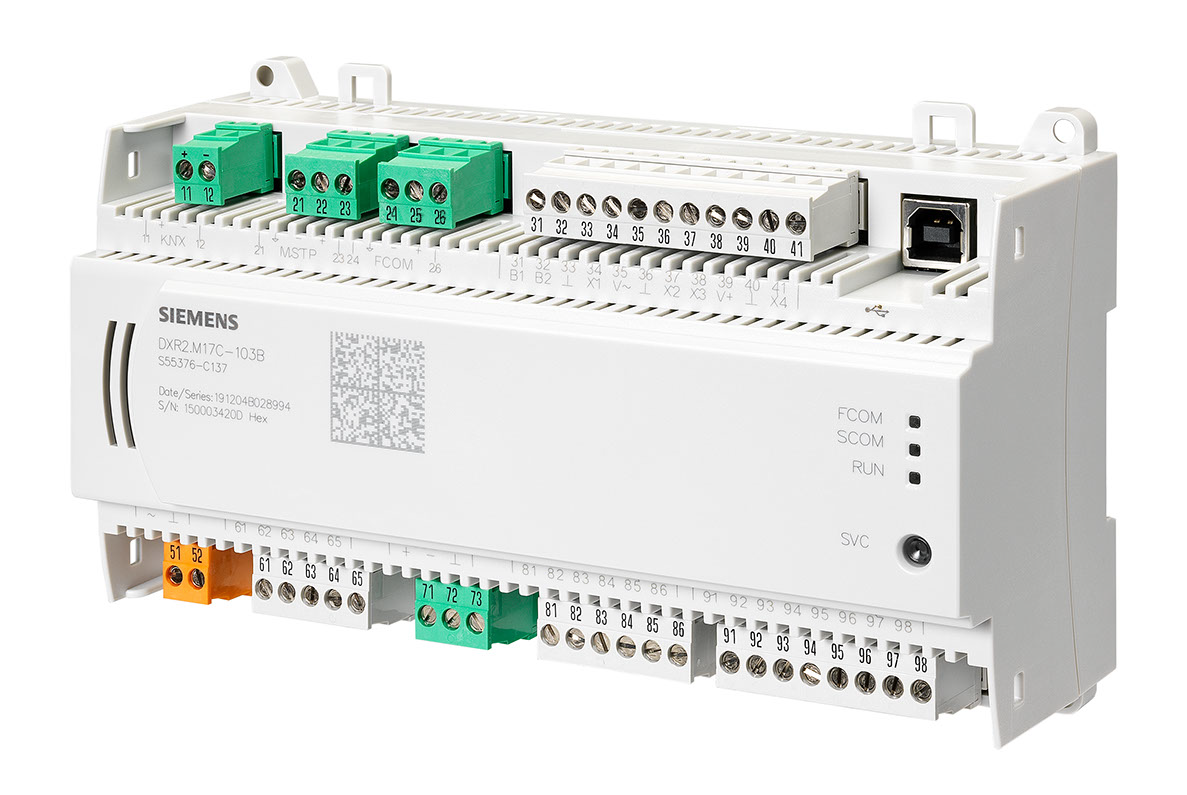

DXR2.M17C-1, Compact room automation station
DXR2.M17CX-1, Compact room automation station

  • 3 binary inputs, 4 universal inputs, and 2 resistive inputs – vertical sash
  • 4 triacs and 4 analog outputs
  • 4 analog input membrane pressure modules
  • 1 face area module
  • BACnet MS/TP communications
  • AC 24 V power supply

Order numbers:
DXR2.M17C-103A (worldwide, without USA and Canada): S55376-C135
DXR2.M17C-103B (USA and Canada): S55376-C137
DXR2.M17CX-103B (USA and Canada): S55376-C161

Download data sheet: A6V10959860



DXP2.M18-1 and DXR2.M18-1, Compact room automation station

  • 2 binary inputs and 4 universal inputs
  • 8 triacs and 4 analog outputs
  • BACnet MS/TP communications
  • AC 24 V power supply

Order numbers:
DXP2.M18-110BR: S55375-C107
DXR2.M18-101A (worldwide, without USA and Canada): S55376-C113
DXR2.M18-102A (worldwide, without USA and Canada): S55376-C129
DXR2.M18-101B (USA and Canada): S55376-C124

Download data sheet: CM1N9207

Additional information

On-board I/O functions

CM110569

DRA installation guide

CM111043

DXR2.M.. properties

DXP2 and DXR2 MS/TP properties

Subsystem-specific extension properties

KNX PL-Link (FldBusMgmt - subsystem-specific extension)

Power supply data

DXR2.

Power supply

KNX PL-Link Power supply [mA]

Field power supply

DC 24 V (W)

AC 24 V (VA)

M09-1

AC 230 V

50



4 1)

M09T-1

AC 230 V

50



4 1)

M10-1

AC 230 V

50



4 1)

M10PL-1, M10PLX-1

AC 24 V

50

-

6

M11-1

AC 24 V

50



6

M12P-1, M12PX-1

AC 24 V

50



6

M17C-1, M17CX-1

AC 24 V

50

2.4

6

M18-1

AC 24 V

50

2.4

6

1) Max. 4 A for the common load of the Triacs and field supply. See data sheets for details.

NOTICE

notice

Equipment damage due to parallel operation of internal and external KNX power supply

Operating internal and external KNX power supply in parallel may lead to severe damage of the automation station.

  1. If an external power supply is used, make sure the internal KNX power supply is turned off.

NOTICE

notice

Communications fail due to insufficient KNX power supply

Communications of the KNX rail fail if the power consumption of the connected devices with KNX PL-Link and KNX S-Mode exceeds the power supplied by the internal or external power supply.

  1. Make sure that for devices with KNX S-Mode the correct value for power consumption is set in the Hardware and network editor > Inspector window > Properties > General tab.
  2. Make sure the power supplied by the internal or external power supply is larger than the power consumed by the connected devices with KNX Pl-Link and KNX S-Mode.

Inputs and outputs

DXR2.

Inputs

Outputs

ΔP

Digital Input

Universal Input 1)

Resistive Input, Vertical Sash

Triac high side

2)

Triac low side

3)

Triac output (Total VA)

Analog output (0..10 V)

Relay (3 step fan)

Relay (1 step fan)

M09-1



1

2









3

3



M09T-1



1

2





4

4

1



1

M10-1



1

2





4

4



3



M11-1



1

2



6



4



3



M10PL-1, M10PLX-1

1

1

2



4



48

1





M12P-1 , M12PX-1

1

1

2



6



48

2





M17C-1, M17CX-1



3

4

2

4



48

4





M18-1



2

4



8



48

4





1) Configurable: Ni Pt NTC Res 0..10V DI

2) Max. 6 VA per Triac

3) Max. 4 A for the common load of the Triacs and field supply. See data sheets for details.

Supported devices

The following device types can be combined with DXR2.M.. room automation stations:
