Central room operation distribution (CenROpDstr01)
Overview
The application function "Central room operation distribution 01, Desigo TRA V5.1" (CenROpDstr01) handles distribution of the reset functions for manual operator interventions in the room for rooms with Desigo V5.1 / V5.1SP functionality.

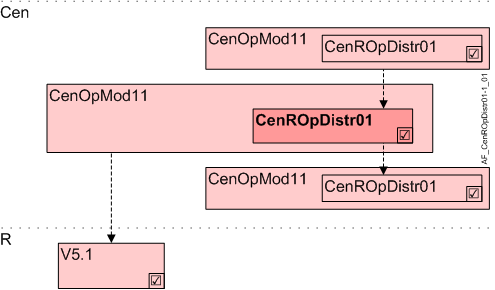

The commands are distributed either to subordinate AFs CenROpDstr01 or directly to the connected rooms.
Cen | Central functions |
CenOpMod11 | Central operating mode determination 11 |
CenROpDistr01 | Central room operation distribution 01, Desigo TRA V5.1 |
R | Room |
V5.1 | Functions V5.1 / V5.1SP |
Function
In Desigo V6 and higher, the reset for manual operator interventions in the room takes place in the room. In Desigo V5.1 / V5.1SP, it is implemented as central reset in CenOpMod01.
CenROpDstr01 is used in cases where CenOpMod11 works with V5.1 rooms as a supplement to the reset function in CenOpMod11.
The following operator interventions can be centrally reset:
- Presence button
- Setpoint shift
- Room climate operating mode
- Fan speed
Hierarchical grouping
This AF supports hierarchical grouping. For detailed information, see Hierarchical grouping.
Interface to local and superordinate functions
Description | Object | Type | Source | Evaluation upon hierarchical grouping |
|---|---|---|---|---|
Room automation condition | RAutoCnd | MPrcVal | Superordinate AF CenROpDstr01 or local determination | Superordinate AF wins, local determination is deactivated. |
Presence button | PscBtn | BPrcVal | ||
Central setpoint shift | CenSpShft | APrcVal | Superordinate AF CenROpDstr01 or | last intervention wins / decision by priority |
Central room climate operating mode | CenRClmOpMod | MPrcVal | ||
Central setpoint for fan speed | CenSpFanSpd | MPrcVal |
Configuration
None.
Interface
Interface | Description | Type | Ref. | Owner |
|---|---|---|---|---|
RAutoCnd | Room automation condition | MPrcVal | ● | - |
PscBtn | Presence button 0:Absent | BPrcVal | ● | - |
CenSpShft | Central setpoint shift | APrcVal | ● | - |
CenRClmOpMod | Central room climate operating mode | MPrcVal | ● | - |
CenSpFanSpd | Central setpoint for fan speed | MPrcVal | ● | - |
CenOpModMst | Manager for central operating mode | GrpMaster | ◉ | CenOpMod11 |
Engineering and commissioning
Engineering is normally not required.
