[CMD_M] Command multistate

Function block CMD_M commands property 'Present value' at a specific priority for a single multistate data point (or releases this priority).

CMD_M commands property 'Present value' with a specific priority for a single multistate data point (or releases this priority). CMD_M reads the transmitted present value and the present priority property to check whether these values were changed and a new commanding is required.

Functioning

Compatible data points:

Multistate output [MO]
Multistate process value [MPrcVal]
Third-party objects that include the requested properties and support the priority mechanism.

Required properties:

Present value
Status flag
Priority array
Present priority

Optional properties:

Reliability
Extension by event configuration
Event state
Acknowledged transitions
Feedback value
Extension by data aggregation
Maintenance state
Operating hours
Suppress event notification
Suppress event detection
Enable aggregation

Operate with priorities

The function block uses 2 approaches to control if operating with priorities:

1. Exclusive control (planned for priorities 1..5, 9..12, 14..16)

Only one command source is permitted for a data point priority.

A function block on a project can command this priority.
An input set of a function block can command this priority.

The function block commands the priority anew or releases it if a priority is used from a function block and another commanding source changes this priority.

2. Last win control (planned for priorities 7, 8, 13)

Multiple, command sources can use the same priority.

The last commanded value (release) remains on the priority until a new command is performed by one of the commanding sources.

	Exclusive control Priorities: 1...5, 9...12, and 14...16	Last win control Priorities: 7, 8, and 13
Behavior at plant startup	[EnIn1] = 0 Release priority.	[EnIn1] = 0 No release.
Behavior at plant startup	[EnIn1] = 1 Command priority.	[EnIn1] = 1 No command.
Command process	If [EnIn1] changes from 0 to 1.	If [EnIn1] changes from 0 to 1.
	If [EnIn1] = 1 and [ValIn1] changes.	If [EnIn1] = 1 and [ValIn1] changes.
	If [EnIn1] = 1 and [RptcIn1] = 1.	If [EnIn1] = 1 and [RptcIn1] = 1.
Release	If [EnIn1] changes from 1 to 0.	If [EnIn1] changes from 1 to 0.
Release	If [EnIn1] = 0 and [RptcIn1] = 1.	If [EnIn1] = 0 and [RptcIn1] = 1.
Behavior in the event of commanding from another source	[EnIn1] = 0 Priority remains released.	[EnIn1] = 0 Priority is not released by the function block.
Behavior in the event of commanding from another source	[EnIn1] = 1 Priority remains commanded with a value of [ValIn1].	[EnIn1] = 1 Priority is not commanded by the function block.

The data point periodically saves the value of priority 8 to controller memory. After a power outage, the value is restored in the property 'Priority array' and evaluated by the data point. All other priorities are not saved to controller memory.

Operation with other input sets of function block ([EnIn2]...[EnIn4], [ValIn2]...[ValIn4], [RptcIn2]...[RptcIn4]) is the same.

Pins

Input	Description	Data type	Default value Value range
EnIn1…EnIn4	Enable input 1…Enable input 4 [EnIn1] determines whether [ValIn1] is commanded at the priority from [PrioIn1] or the priority is released. [EnIn1] belongs to one of four input sets, each including [ValInX], [EnInX], [PrioInX] and [RptcInX]. These input sets are used to command the data point(s) at different priorities as needed. [EnIn1] can be configured by the developer or linked to the chart and calculated by the control program during runtime. The functionality of [EnIn2]…[EnIn4] is the same as [EnIn1].	Boolean	0
EnIn1…EnIn4	0 - Priority of [PrioIn1] is released if not active at the moment by setting another [EnInX] to 1. 1 - The priority for [PrioIn1] is commanded.
ValIn1…ValIn4	Value input 1…Value input 4 The value for commanding at [PrioIn1]. [ValIn1] can be configured by the developer or linked to the chart and calculated by the control program during runtime. [ValIn1] is commanded at the priority from [PrioIn1] if [EnIn1] is 1 and [ValIn1] changes. The functionality from [ValIn2]...[ValIn4] is the same as [ValIn1].	Integer	1
PrioIn1…PrioIn4	Priority input 1…Priority input 4	Integer	17
PrioIn1…PrioIn4	[PrioIn1] belongs to one of 4 input sets and receives the priority that accompanies [ValIn1]. [PrioIn1] can be configured and cannot be changed during runtime. Value 17 means that the input is not used. The functionality from [PrioIn2]...[PrioIn4] is the same as for [PrioIn1]. Priority range: 1...16 (see limitations to priorities 6 and 8 later). Exclusive control: Priorities 1...5, 9...12, and 14...16 During startup, the function block can use exclusive control to initialize the assigned priorities in ranges 1...5, 9...12 and 14...16. During runtime, the function block retains exclusive control. If external overwriting is signaled, the function block can newly command or release at the priority of [PrioIn1]. Two or more input sets on the same function block cannot have a common, exclusive control priority, as this will result in conflicts. Last wins: Priorities 7, 8, and 13 No initialization of priorities during startup. During runtime, the last valid command controls priority. If 2 or more input sets have the same priority and are commanded concurrently, only the input set with the first numeric order is performed (In1...In4). If 2 or more input sets have the same priority and the same conditions for commanding and releasing are issued concurrently, the command operation wins. Prio 6: Each BACnet object reserves command priority 6 for min. on/off time functionality. Commands at priority 6 are rejected by the BACnet object. For min. on/off time functions, the control program must contain a logic and use another priority. Prio 8: Command priority 8 is planned for manual operation and is typically unassigned on the function block. Last wins functionality allows the control program to change an operator command.
RptcIn1…RptcIn4	Repeat command input 1…Repeat command input 4 [RptcIn1] repeats a command or releases a priority. If [RptcIn1] = 1 and [EnIn1] = 1, the function block repeats a command from [ValIn1] in each programming cycle with the priority from [PrioIn1]. If [RptcIn1] = 1 and [EnIn1] = 0, the function block forces a release of the priority from [PrioIn1] on each programming cycle. The functionality from [RptcIn2]...[RptcIn4] is the same as for [RptcIn1]. Note [RptcIn1] may not be permanently forced to 1. This may impact performance or network traffic. [RptcIn1] can be linked and typically is calculated and set by the control program.	Boolean	0
EnInFb	Enable feedback input Enables the function for the value input of the feedback input. Note If the property 'Feedback value' is missing, [EnInFb] is ignored in the function. The functionality is not available if the BACnet object is on another device. The function is not available for BACnet third-party objects.	Boolean	0
ValInFb	Value feedback input Permits providing feedback values on the BACnet object. The value from [ValInFb] is written for property 'Feedback value'. Note [ValInFb] is not considered if [EnInFb] has the value 0 or property 'Feedback value' is missing. The functionality is not available if the BACnet object is on another device. The function is not available for BACnet third-party objects.	Integer	1
SupEvtDet	Suppress event detection Suppresses the detection of events. Note If the extension for 'Intrinsic reporting' is not enabled, the input value is not considered in the function of the function block. If the same BACnet object is accessed by multiple functions in a control program, only one of these function blocks may interconnect to the pin. The function is not available for BACnet third-party objects.	Boolean	0
SupEvtNtf	Suppress event notification Suppresses notification of events. Note If the extension for 'Intrinsic reporting' is not enabled, the input value is not considered in the function of the function block. If the same BACnet object is accessed by multiple function blocks in the control program, only one of these function blocks may interconnect to the pin. The function is not available for BACnet third-party objects.	Boolean	0
EnDataAgn	Enable data aggregation Permits activation or deactivation of data aggregation. Note If the extension for data aggregation is not enabled, the input value is not considered in the function of the function block. If the same BACnet object is accessed by multiple blocks in the control program, only one of these function blocks may interconnect to the pin. The function is not available for BACnet third-party objects.	Boolean	0
BaObjRef	BA-Object reference Link between function block and BACnet object.	Structure	---
BaObjRef > DeviceID	Device identifier [DeviceID] includes object type and object instance in one ID. Identifies the device object: local or remote. A local device object can also be identified by value 16#3FFFFF.	Double Word	16#3FFFFF
BaObjRef > ObjectID	Object identifier [ObjectID] includes object type and object instance in one ID. Identifies the object on a device.	Double Word	16#3FFFFF
BaObjRef > ItemID	Item identifier [ItemID] represents an index in a view node object that references the BACnet object. [ObjectID] and [ItemID] together define an indirect reference to the BACnet object. Value -1 indicates a direct interface.	Integer	-1

Output	Description	Data type	Default value Value range
PrVal	Present value Value of property 'Present value' for the referenced BACnet object. [PrVal] supplies the last valid value in the event of a fault. Note [PrVal] supplies the overridden output value if the associated object is overridden. Display of the overridden value is not available for third-party objects.	Integer	1
PrPrio	Present priority Active priority of the referenced BACnet object. [PrPrio] is set to: Active priority if access to property 'Present priority' can be accessed. 17, if all priorities are released or if no access to property 'Present priority' is possible. 0, if the BACnet object is overridden.	Integer	Default
PrPrio	Overridden Prio 1 Emergency, manual Prio 2 Emergency Prio 3 Emergency Prio 4 Protection Prio 5 Protection Prio 6 Minimum On/Off time Prio 7 Manual, switch Prio 8 Manual, system operator Prio 9 Prio 10 Prio 11 Prio 12 Prio 13 Manual, building user Prio 14 Prio 15 Prio 16 Default
Dstb	Disturbed [Dstb] indicates whether the referenced BACnet object is in fault or in state OffNormal. When the BACnet object returns to state Normal, [Dstb] retains its value until the transition to normal is acknowledged. [Dstb] = 1, if: BACnet object = Access error OR 'Status flag' = Fault OR 'Event state' <> Normal [Dstb] = 0, if the above condition is not fulfilled AND 'Acknowledged transitions' = x, x, 1. Note Properties 'Event state' and 'Acknowledged transitions' are not considered if the BA-Object has an alarm extension set to disabled. Output [Dstb] does not retain the value after a restart following a power outage if the state of the BACnet object is normal. Properties 'Event state' and 'Acknowledged transitions' are not considered on BACnet third-party objects.	Boolean	0
Flty	Faulty [Flty] indicates whether the last event on the referenced BACnet object was in fault. If the BACnet object returns to the normal state, [Flty] retains its value until the transition to normal is acknowledged. [Flty] = 1, if: BACnet object = Error during access OR 'Status flag' = Fault [Flty] = 0, if the above condition is not fulfilled AND one of the following possibilities is valid: 'Event state' = Offnormal OR 'Event state' = Normal AND 'Acknowledged transitions' = x, x, 1 Note Properties 'Event state' and 'Acknowledged transitions' are not considered if the BA-Object has an alarm extension set to disabled. Output [Flty] does not retain the value upon restart after a power outage if the state of the BACnet object is normal. Properties 'Event state' and 'Acknowledged transitions are not considered for BACnet third-party objects.	Boolean	0
OffNrml	Offnormal [OffNrml] indicates whether the last event on the reference BACnet object was Offnormal. When the BACnet object returns to state Normal, [OffNrml] retains its value until the transition to normal is acknowledged. [OffNml] = 1, if: BACnet object = Access successful AND 'Status flag' = No fault AND 'Event state' = Offnormal [OffNml] = 0, if the above condition is not fulfilled OR 'Event state' = Normal AND 'Acknowledged transitions' = x, x, 1. Note Properties 'Event state' and 'Acknowledged transitions' are not considered if the BA-Object has an alarm extension set to disabled. Output [OffNml] does not retain the value after a restart following a power outage if the state of the BACnet object is normal. The function is not available for BACnet third-party objects.	Boolean	0
Rlb	Reliability Indicates the value of property 'Reliability', if the property is available.	Integer	0: No fault detected
Oph	Operating hours Displays the value of the property operating hours for the referenced BACnet object Note The output is set to 0, if the extension for data aggregation is disabled or the property does not exist. The function is not available for BACnet third-party objects.	Double Word	0
MntnSta	Maintenance state Supplies the value for property 'Maintenance state' for the referenced BACnet object.	Integer	1
MntnSta	1: None 2: Limit present period exceeded 3: Limit exceeded Note The output is set to 1 if the extension for data aggregation is disabled or the property does not exist. The function is not available for BACnet third-party objects.
ErrCode	Error code indication	Integer	0: No error
ErrCode	= 0 - No error > 0 - XFB error codes

Troubleshooting

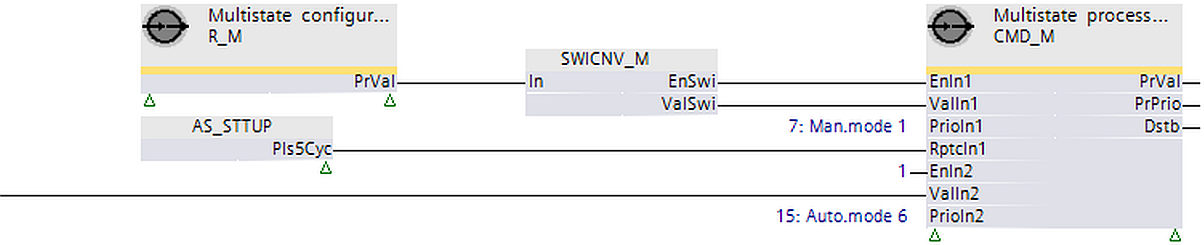

Values for manual priorities are not written after startup. Use the following programming logic to write manual priorities after startup:
