[ElPnl21x] Electrical panel (all options)
Name: [ElPnl21x] Electrical panel (all options)
Library hierarchy: Plants
ElPnl21x is a plant that contains electrical data points, alarm lamps, and an acknowledge button.
Instantiate ElPnl21x once in one automation station in the electrical cabinet.
Plant operating modes
- None

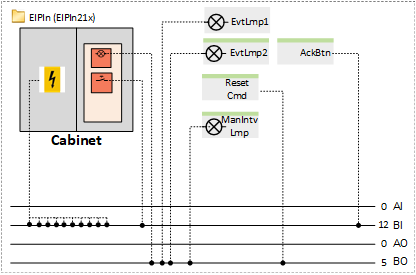

Plant diagram
Main functions | Main components |
|---|---|
|
|

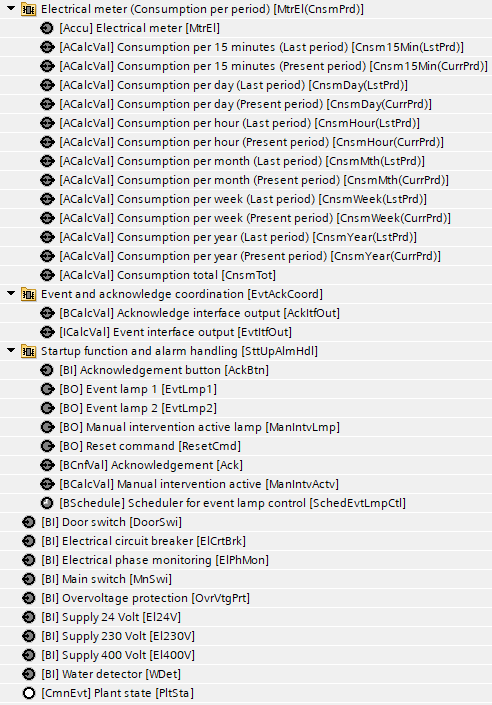

Project tree | Diagram |
|---|---|
|
| N/A |

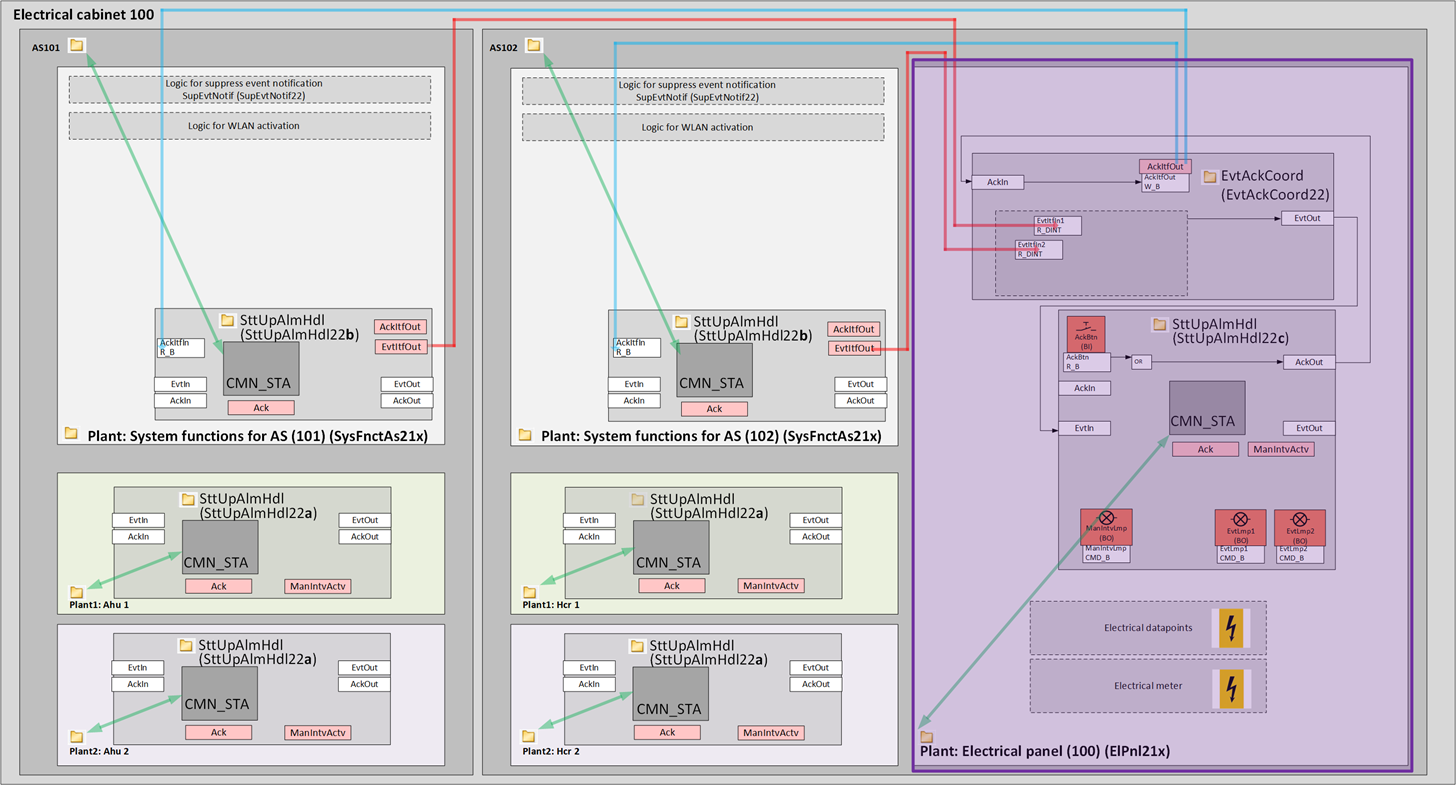

Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
SttUpAlmHdl | Startup function and alarm handling | [SttUpAlmHdl22c] Startup and alarm handling, 3 priorities at electrical cabinet | N/A | N/A | |
EvtAckCoord | Event and acknowledge coordination | [EvtAckCoord22] Event and acknowledge coordination with 3 priorities | N/A | N/A | |
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
|
Electrical equipment | ||||
ElPhMon | Electrical phase monitoring | BI: Binary input | Yes, 5 | No |
ElCrtBrk | Electrical circuit breaker | BI: Binary input | Yes, 5 | No |
OvrVtgPrt | Overvoltage protection | BI: Binary input | Yes, 5 | No |
MnSwi | Main switch | BI: Binary input | Yes, 5 | No |
El24V | Supply 24 Volt | BI: Binary input | Yes, 5 | No |
El230V | Supply 230 Volt | BI: Binary input | Yes, 5 | No |
El400V | Supply 400 Volt | BI: Binary input | Yes, 5 | No |
WDet | Water detector | BI: Binary input | Yes, 5 | No |
DoorSwi | Door switch | BI: Binary input | No | Yes, 4 |
MtrEl (CnsmPrd) | Electric meter (Consumption per period) | N/A | N/A | |
