[CGen21x] Refrigeration generation, 1 chiller with external compressor control (on/off command, setpoint, feedback, common fault), chilled water storage tank

Name: [CGen21x] Refrigeration generation, 1 chiller with external compressor control (on/off command, setpoint, feedback, common fault), chilled water storage tank (all options)

Library hierarchy: Plants

Plant operating modes

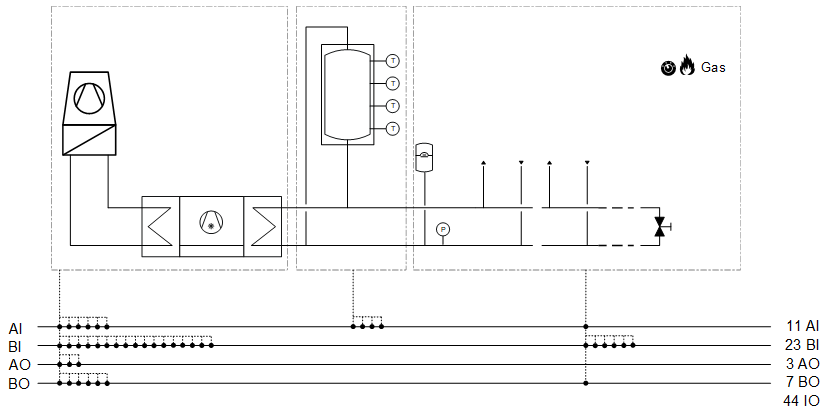

Plant diagram

Main functions

Main components

  • Collect chilled water requests
  • Control to the corresponding setpoint
  • Chiller
  • Chilled water storage tank with four sensors

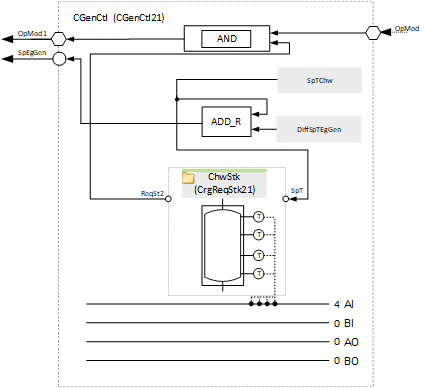

Program blocks
