Setting filters for BACnet objects

Go to Building > Building structure.
Right-click the device and select Go to engineering.
Open the BACnet objects task.

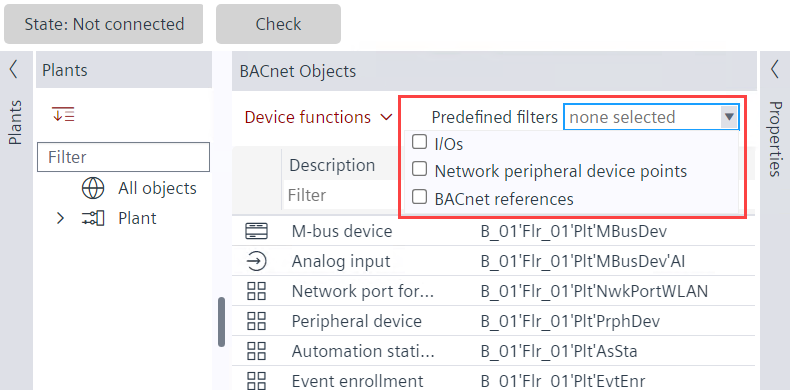

The combo box shows the following predefined filters for the BACnet objects:

I/Os: Filters all the I/Os in the selected scope.
Network peripheral device points: Filters all the network field device points in the selected scope (excluding the network field devices).
BACnet references: Filters all the BACnet reference objects in the selected scope.

In the Plants navigation view, select the plant or folder where you want to set the filter.
Go to Predefined filters.
Select the required filter from the following:

I/Os

Network peripheral device points

BACnet references

To change the description of the data points, click on the data point under the Description column and make changes.

Online engineering filters

Go to Engineering.
Open the BACnet objects task and go online.
Set filters in the following columns:

Value/Unit

Commissioning

For table filters, see Setting table filters in the Engineering tab.
