I/O assignment (Details pane)
Some I/O's are assigned manually. Lighting and shading are typical disciplines that require project-specific assignments of I/O's. Also presence detectors and brightness sensors can be assigned
Assigning I/O's
I/O's can be assigned in two ways:
- Individually for each automation station in the I/O assignment tab of the Details pane of a room.
Assigning I/O's (areas) - Per application template in the I/O assignment task.
Assigning I/O's (template)
1 | View selection area | 2 | Toolbar |
3 | Table area (source list and target list) |
| |
① View selection area
View | Description |
|---|---|
Template | Opens the Template view where you can load a saved I/O assignment. |
Custom | Opens the Custom view of the I/O assignment where you can assign I/O's. |

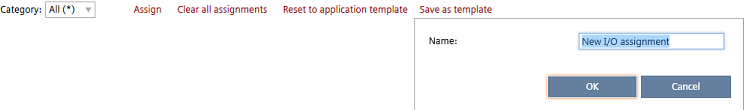

② Toolbar
Command | Description |
|---|---|
Category | Drop-down list where you can filter for the defined button type, e.g. LgtBtn, BlsBtn. |
Assign | Assigns the selected I/O to the selected actuator. |
Clear all assignments | Clears all I/O assignments. |
Reset to application template | Resets the I/O assignment to the default I/O assignment of the application template. |
Save as template | Opens a small dialog box where you can save the I/O assignment. Type a name in the Name field and click Save to save the I/O assignment for future use. |
③ Table area (source list and target list)
Column | Description |
|---|---|
Area | Defined room or room segment. |
Description | Description of the button (I/O) or button collection. |
Input / Output | Name of the I/O for example a button or sensor. |
Actuator / IO | Name of the actuator or button collection. |
Select an I/O and an actuator and click Assign to assign I/O's.
Click Remove to remove the selected I/O assignment.
Click Clear to remove all I/O assignments of the button collection.
Click Reset to reset the selected button collection to the settings of the application template.
The buttons are located in the Description column of the target table next to assigned I/O's and button collections.
Initially the source and target lists are read from the application type and application template. The application type defines an auto-connect rule, typically a one-to-one connection between source and collection, e.g., LgtBtn(1) and LgtBtnCol. Assignments with auto-connect rules are marked by the
icon.
