Exporting modules and I/Os (for TXB3.M only)

You can also export the I/O configuration data to an xml file. In a second step you can edit the file in an xml editor or a text editor, and reimport the changed configuration.

info

You cannot import or export accessories into a bus interface module.


The procedure is the same as for creating data exports.

Create a data export

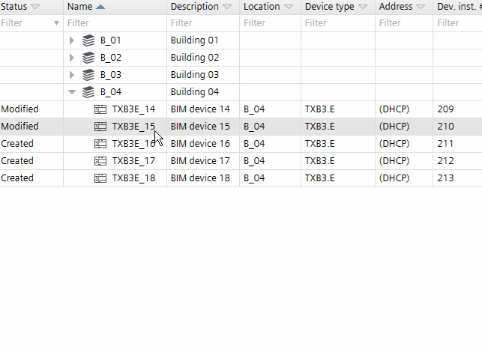

  1. Go to Building > Building structure
  2. Select a device or a hierarchy object.
  3. Right-click and select Create export.
  4. The Create export dialog box opens.
  5. Select the type of content to export:
    Select contents
    • Management station/Management platform (Desigo Insight or Desigo CC)
    • Electrical data (CAD)
    • BACnet engineering data exchange (EDE)
      Note: Verify if the Object structure on BACnet is set correctly. KBOB does not allow additional hierarchies (structured view object).
      See Device details
      See BACnet object instances.
    • BACnet object names (PXC4/5/7 only)
    • BACnet object properties (PXC4/5/7 only)
    • I/O configuration (TXB3.M/E)
      Scope
    • Selected devices (rooms)
    • All devices from the project
  6. (Optional) Enter a comment.
  7. Click OK.
  1. The selected content is exported to the default directory for exports.
  2. A dialog box displays allowing you to open the containing folder.

xml file structure
