[Dhw22x] Domestic hot water, storage tank charge, external heat exchanger

Name: [Dhw22x] Domestic hot water, storage tank charge, external heat exchanger (all options)

Library hierarchy: Plants

Plant operating modes

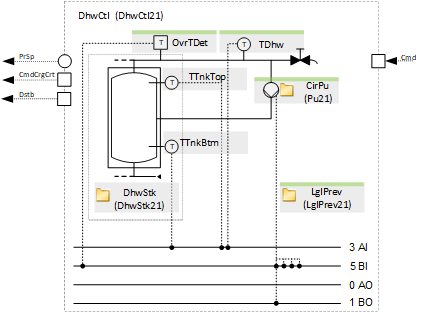

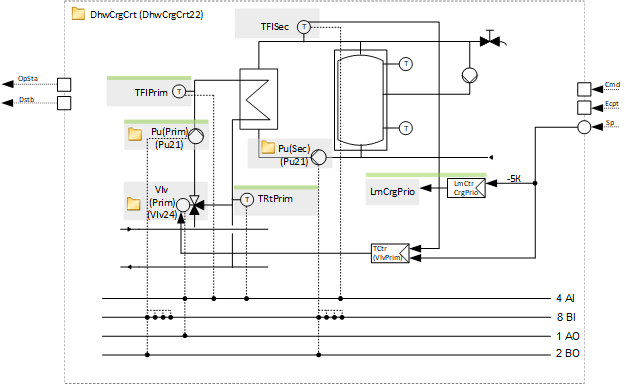

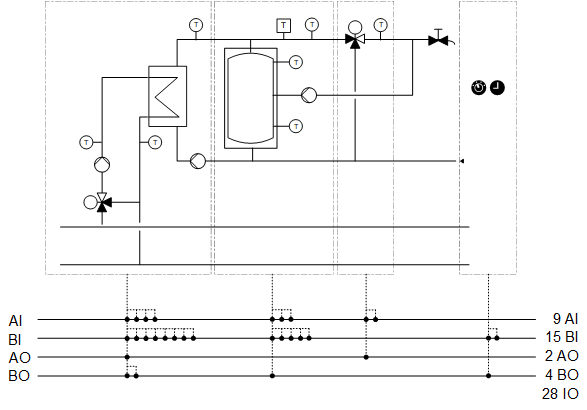

Plant diagram

Main functions

Main components

  • Storage tank charge
  • Legionella prevention
  • Hot water storage tank with external heat exchanger and two sensors
  • Storage tank charging circuit
  • Circulating pump
  • Mixing valve for scalding protection

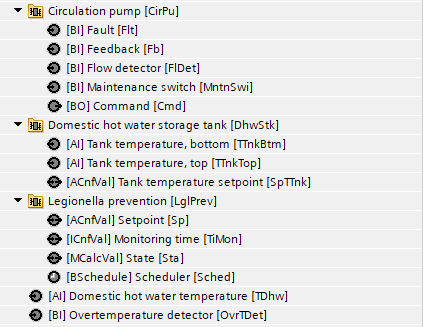

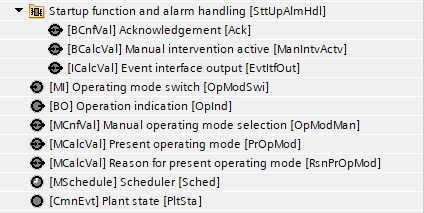

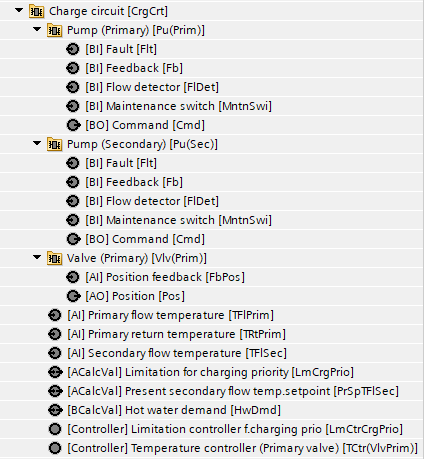

Program blocks
