[ScaPrt21] Scalding protection
Program block, name / node subtype: [ScaPrt21] Scalding protection
Library hierarchy: Heating equipment
Family: ScaPrt
Project tree | Diagram |
|---|---|
|
|
|

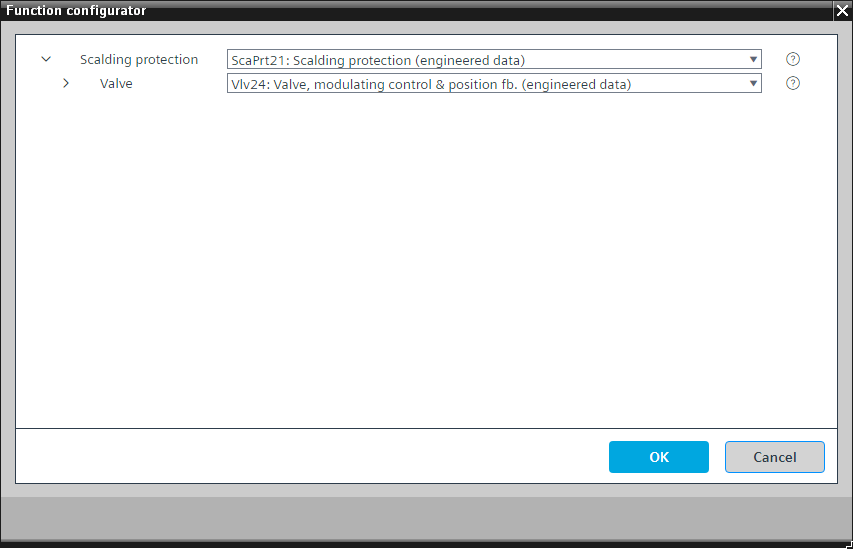

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Provides protection from scalding.
A PID controller compares the consumer domestic hot water temperature with a given setpoint, e.g., 65 °C, opens, and closes a valve to limit it to this setpoint (Vlv24).
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Vlv | Valve | N/A | N/A | ||
TDhwCns | Consumer domestic hot water temperature | AI: Analog input | Yes, 8 | Yes, 2 | |
TCtr (ScaPrt) | Temperature controller (Scalding protection) | Ctr: Controller | No | No | |
