[Vlv24] Valve, modulating control & position feedback
Program block, name / node subtype: [Vlv24] Valve, modulating control & position feedback
Library hierarchy: Universal equipment
Family: Vlv
Project tree | Diagram |
|---|---|
|
|
|

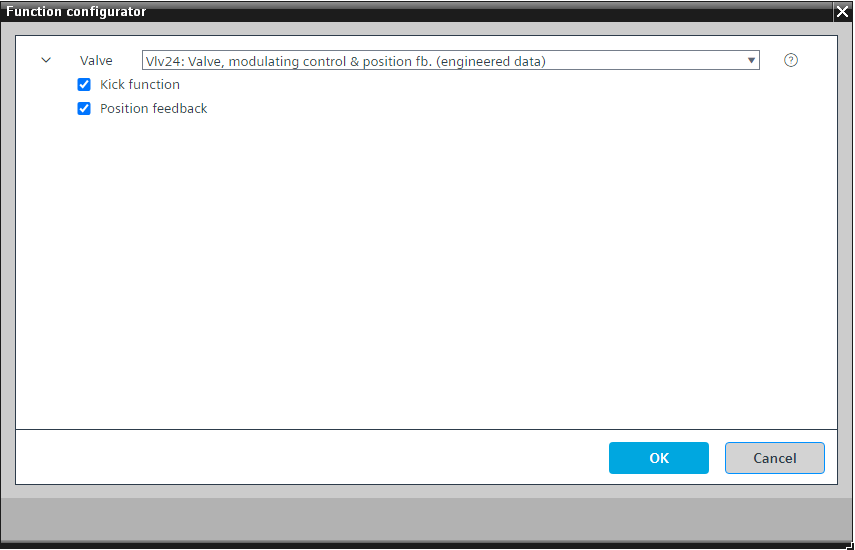

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls the position of a valve (0-100 %).
This program block has the following optional functions:
Option: Kick function
Prevents standstill damage by generating a pulse that opens the valve at a configured time with a defined pulse length after a minimum off time has elapsed.
This is configured in the program.
Option: Position feedback (1xAI)
Reads the position of the valve.
"Position feedback" only reads the position and does not generate an alarm.
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Pos | Position | AO: Analog output | No | Yes, 2 | |
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
FbPos | Position feedback | AI: Analog input | No | Yes, 3 | |
Description |
|---|
Kick function |
