[HGen23x] Heat generation, 1 boilers with external boiler control (on/off command, setpoint, feedback, common fault)
Name: [HGen23x] Heat generation, 1 boilers with external boiler control (on/off command, setpoint, feedback, common fault) (all options)
Library hierarchy: Plants
Plant operating modes
- Off
- On

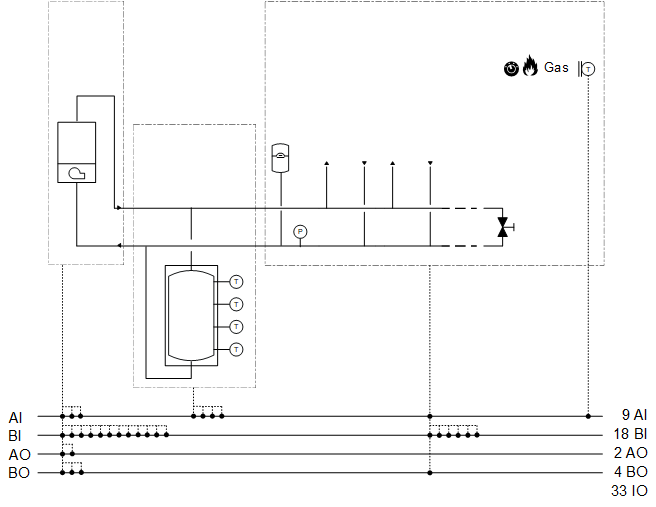

Plant diagram
Main functions | Main components |
|---|---|
|
|
Program blocks
|
Boiler | |
|
|
Sensors, setpoints and control | |

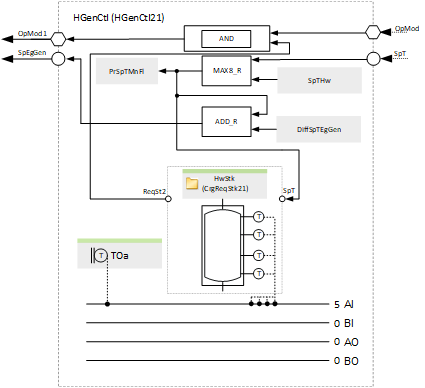

[HGenCtl21] Sensors, setpoints and control for single heat generator | |
|
|
Plant operating mode | |
[HGenPltMod21] Plant operating mode determination for heat generation | |
|
|

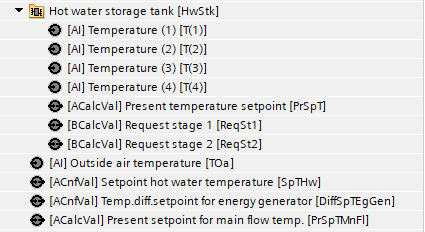

Supply chain for hot water (Optional) | |
|
|
