[CGen22x] Refrigeration generation, multiple chillers, chilled water storage tank
Name: [CGen22x] Refrigeration generation, multiple chillers, chilled water storage tank (all options)
Library hierarchy: Plants
Plant operating modes
- Off
- On

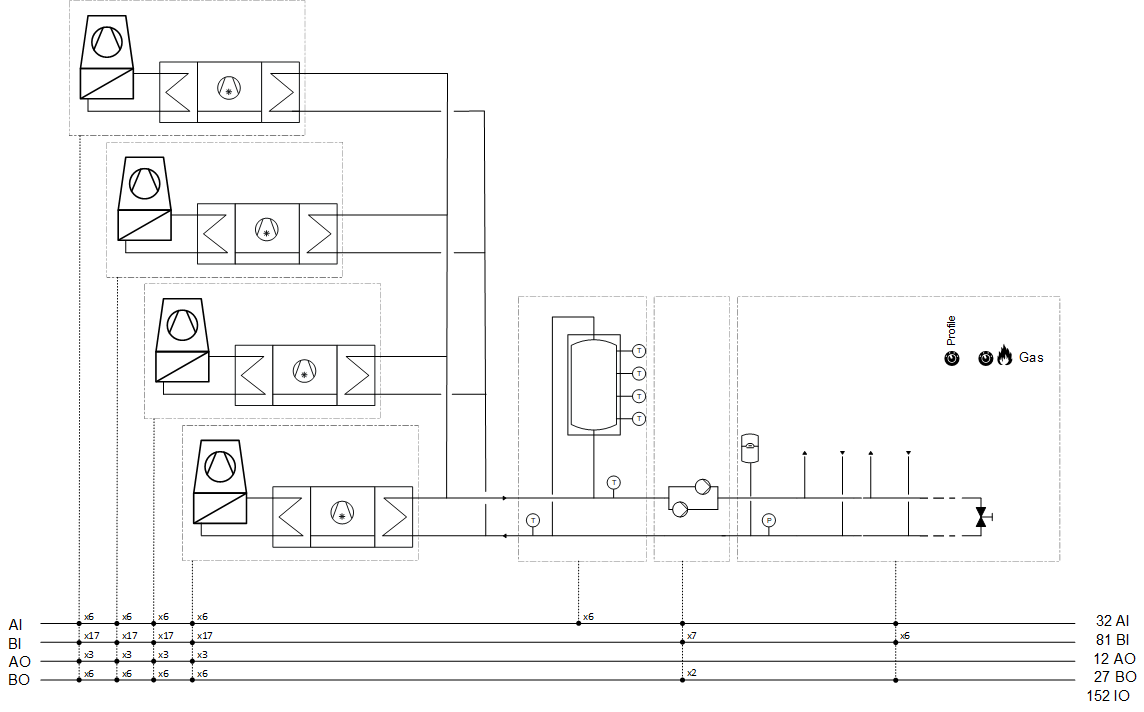

Plant diagram
Main functions | Main components |
|---|---|
|
|
Program blocks
|
Chiller 1 | |
|
|
Chiller 2 (Optional) | |
|
|
Chiller 3 (Optional) | |
|
|
Chiller 4 (Optional) | |
|
|

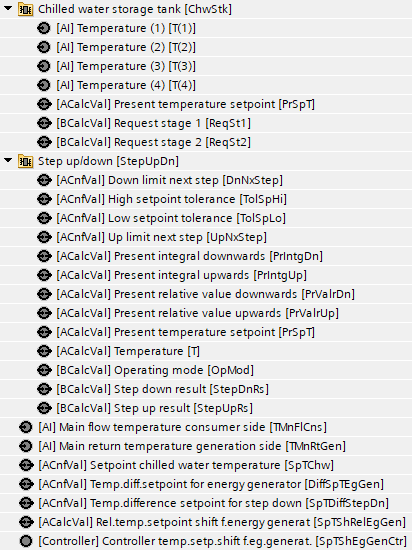

Sensors, setpoints and control | |

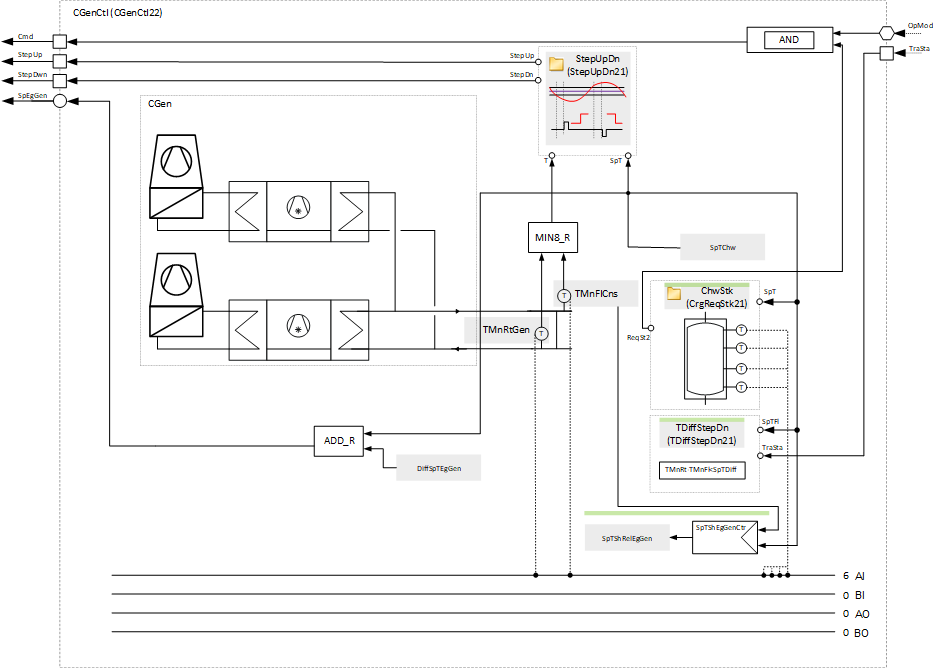

[CGenCtl22] Sensors, setpoints and control for multiple refrigeration generators | |
|
|
Plant operating mode | |

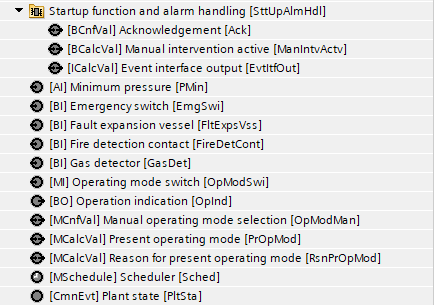

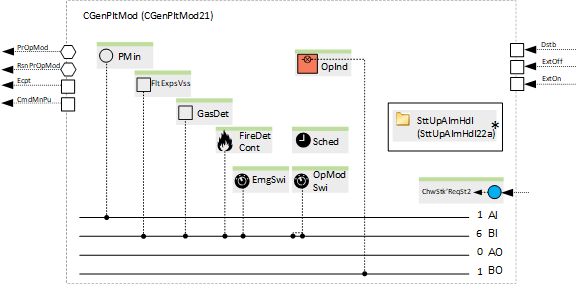

[CGenPltMod21] Plant operating mode determination for refrigeration generation | |
|
|
Power control and compensation | |

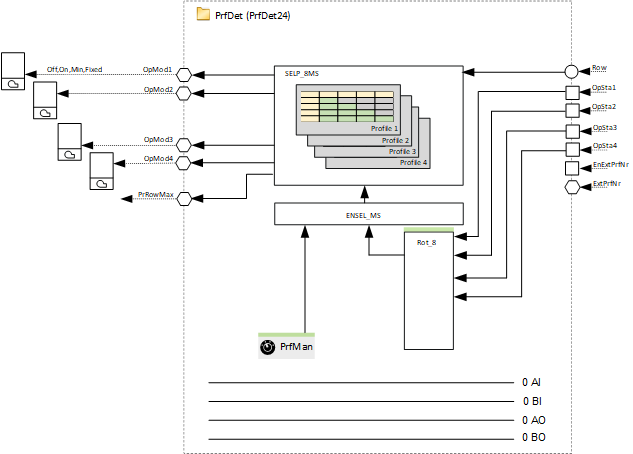

Profile determination | |
|
|

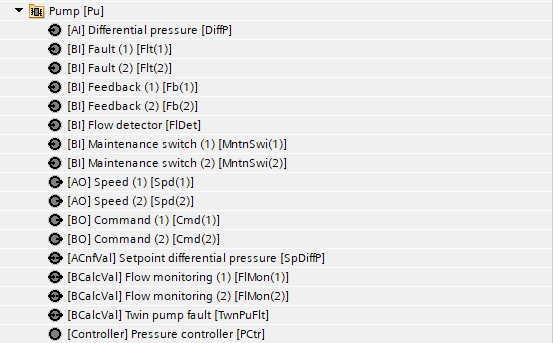

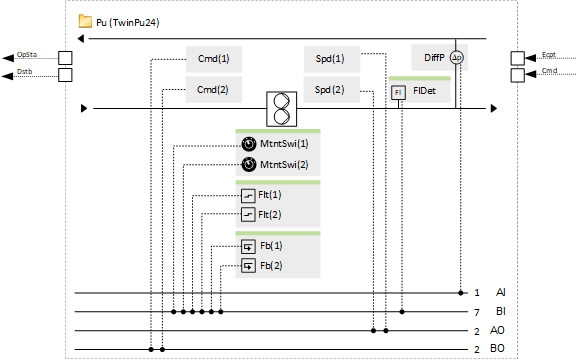

Main pump group | |
|
|

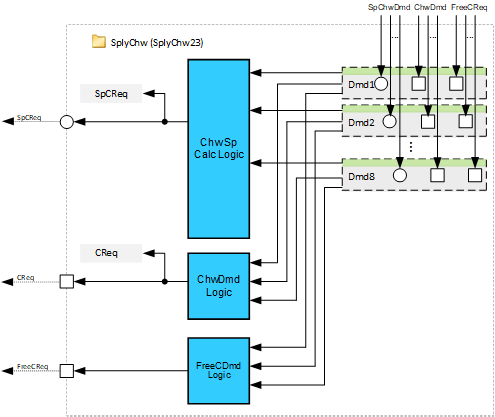

Supply chain for chilled water (Optional) | |
|
|
