[SysFnctAs21x] System functions for automation station (all options)

Name: [SysFnctAs21x] System functions for automation station (all options)

Library hierarchy: Plants

Plant operating modes

Plant diagram

Main functions

Main components

  • Collect events and alarm indications from the automation station and acknowledge all events (by reading or writing from or to AS_VIEW).
  • Distribute acknowledge information to the plants in their own automation station.
  • Suppress event notifications.
  • Logic for WLAN activation

N/A

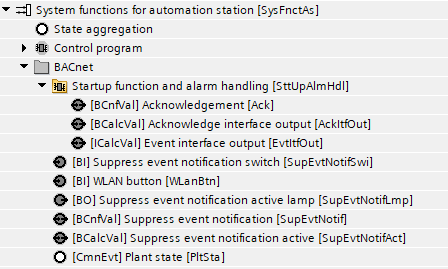

Project tree

Diagram

N/A

info

Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.

Optional elements

Name

Description

Type

Alarm / Notification class

Trend / Type

SttUpAlmHdl

Startup function and alarm handling

[SttUpAlmHdl22b] Startup and alarm handling, 3 priorities at device level

N/A

N/A

SupEvtNotif

Suppress event notification

[SupEvtNotif22] Suppress event notification, 3 priorities

N/A

N/A

WLAN activation

WLanBtn

WLAN button

BI: Binary input

No

Yes, 4

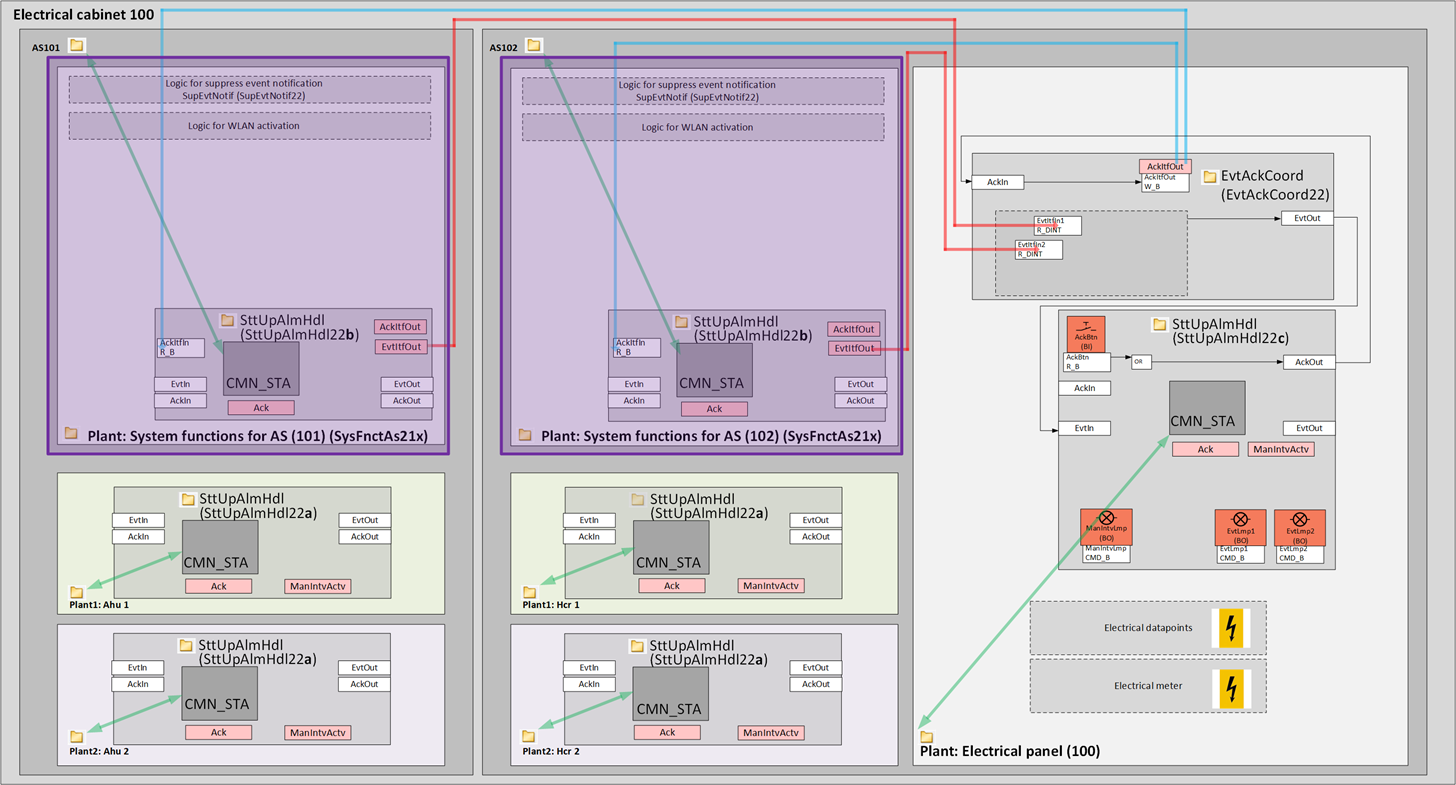

SysFnctAs21x as part of an example for an electrical cabinet
