[SupEvtNotif22] Suppress event notification, 3 priorities
Program block, name / node subtype: [SupEvtNotif22] Suppress event notification, 3 priorities
Library hierarchy: Universal equipment
Family: SupEvtNotif
Project tree | Diagram |
|---|---|
|
|
|

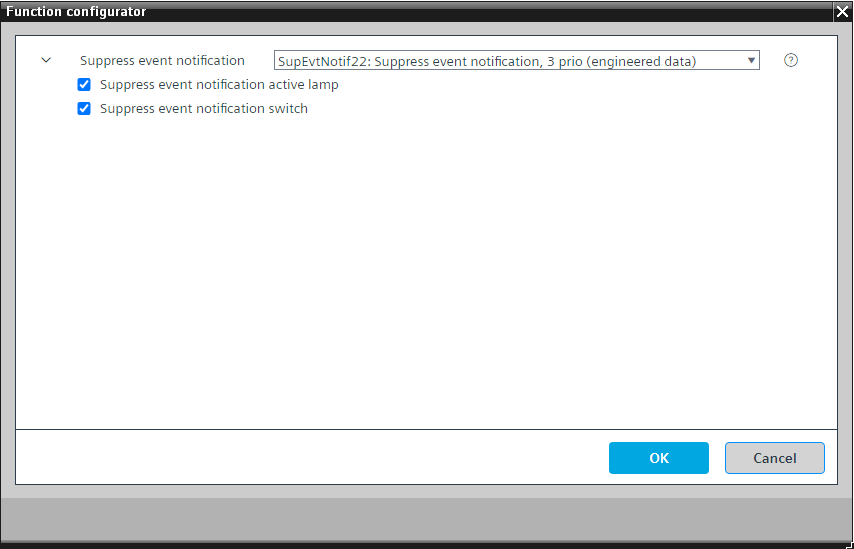

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Suppresses the event notification for all objects in a structured view, e.g., an automation station.
Use this function with device version 1.5 or higher.
When activated over a configuration value or optional switch, the logic writes to the pin "SupEvtNtf" of a CMN_STA that is connected to the structured view.
This program block is part of the plant SysFnctAS21x.
Connect the function block CMN_STA to the highest structured view of the automation station, i.e. AS_VIEW, to suppress the event notification for the whole automation station.
An unsuppressed value object generates an alarm that the event notification suppression is active.
This program block has the following optional functions:
Option: Suppress event notification active lamp (1xBO)
Commands a binary output that turns on a lamp, e.g., at the front of the electrical cabinet.
Option: Suppress event notification switch (1xBI)
Reads the signal from a switch and activates the event notification suppression.
SupEvtNotif22 as part of an example of an electrical cabinet
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
SupEvtNotif | Suppress event notification | BCnfVal: Binary configuration value
| No | No | |
SupEvtNotifAct | Suppress event notification active | BCalcVal: Binary calculated value
| Yes, 8 | No | |
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
SupEvtNotifSwi | Suppress event notification switch | BI: Binary input | No | No | |
SupEvtNotifLmp | Suppress event notification active lamp | BO: Binary output | No | Yes, 4 | |
