[Ahu22] Air handling unit, temperature cascade control, with 2-speed fans, mixed air dampers for air quality control

Plant example Ahu22 has 2-stage fans, chilled water cooling coil, hot water heating coil, energy recovery with a plate heat exchanger, mixed air dampers, shutoff dampers and fire dampers.

Functions

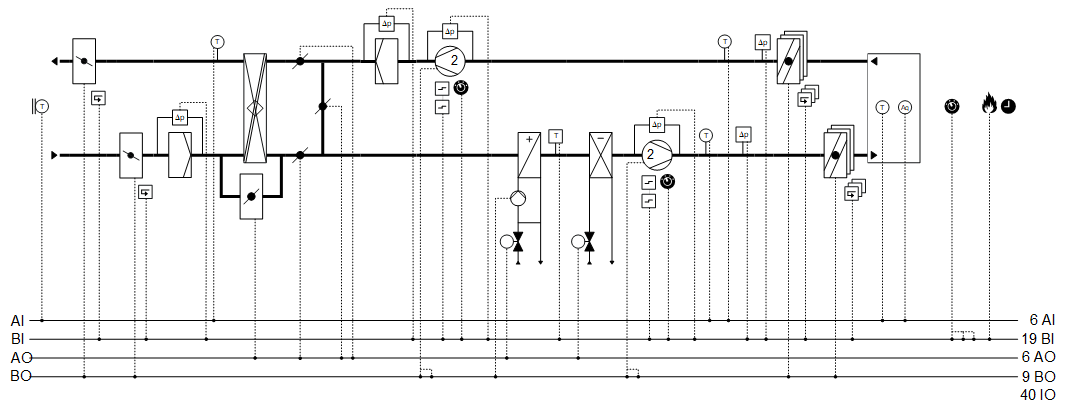

Plant diagram

Components

Components and functions

Components and functions of the plant example:

Component

Function

BACnet object

Fire detection contact

Switches the plant to: Off

[BI] Fire detection contact

Operating mode switch

Switches the plant to: Auto | Off | Speed 1, speed 2.

[MI] Operating mode switch



Manual operating mode selection

Switches the plant to: Auto | Off | Speed 1, speed 2.

[MCnfVal] Manual operating mode selection

Scheduler program

Switches the plant to: Off | On | Speed 1, speed 2.

[MSchedule] Scheduler



Present operating mode

Reports the present operating mode: Off | On

Plant operating modes and control sequence

[MCalcVal] Present operating mode



Reason for present operating mode

Reports the reason for the present operating mode: Exception | Operating mode switch | Manual operating mode selection | Room temperature sustained mode | Night setback | Scheduler | Switching action operating

[MCalcVal] Reason for present operating mode



Temperature control basic setpoints (1)

Setpoints for upper and lower room temperature

Function diagram for temperature control basic setpoints (1)

[ACnfVal] Setpoint for cooling

[ACnfVal] Setpoint for heating



Seasonal temperature compensation (2)

Corrects the high and low room temperature setpoint per the outside temperature.

Function diagram for seasonal temperature compensation

[BCalcVal] Seasonal temperature compensation



Temperature cascade control (3)

(Room/supply air temperature cascade)

Calculates the high and low supply air setpoint per the outside temperature.

Function diagram for temperature cascade control

Temperature control (Folder)

> [ACalcVal] Present setpoint high for room temperature

> [ACalcVal] Present setpoint low for room temperature

> [ACalcVal] Present setpoint high for supply air temperature

> [ACalcVal] Present setpoint low for supply air temperature

> [ACnfVal] Gain

> [ICnfVal] Integral action time Tn

> [ACnfVal] Minimum supply air temperature setpoint

> [ACnfVal] Maximum supply air temperature setpoint



Night cooling

Switches on the fans, if the conditions are met to cool the room air (outside the operating mode On).

[BSchedule] Scheduler

> [ACnfVal] Outside air temperature low limit

> [ACnfVal] Switch-on via temperature difference



Air quality control

Air quality control (Folder):



Controls deteriorating room air quality by:

  1. Increasing the outside air portion using mixed air dampers
  2. Changeover from stage 1 to stage 2

[ACnfVal] Setpoint for room air quality

> [Controller] Air quality controller

Room temperature sensor

Measures room temperature.

Sustained mode:

Switches on the plant when the setpoint is breeched.

[AI] Room temperature

> [ACnfVal] Room temperature setpoint sustained mode

Room air quality sensor

Measures the room air quality.

[AI] Room air quality

Supply air fire dampers

Opens and closes the fire damper group in the supply air.

Monitors the position open.

Adjustable damper runtime in the program.

Supply air fire dampers (Folder)

> [BO] Command

> [BI] Feedback open

> [BCalcVal] Position monitoring

Extract air fire dampers

Opens and closes the fire damper group in the extract air.

Monitors the position open.

Adjustable damper runtime in the program.

Extract air fire dampers (Folder)

> [BO] Command

> [BI] Feedback open

> [BCalcVal] Position monitoring

Extract air maximum pressure monitor

At too high a pressure, switches the plant to: Off

(Located in extract air fan)

Supply air maximum pressure monitor

At too high a pressure, switches the plant to: Off

(Located in Supply air fan)

Extract air temperature sensor

Measures extract air temperature.

> [AI] Extract air temperature

Supply air temperature sensor

Measures the supply air temperature.

> [AI] Supply air temperature

Supply air fan

Supply air fan (Folder)

Monitor differential pressure

The plant is switched to off if the differential pressure does not build after switching on the fan.

> [BI] Differential pressure monitor

Command

Switches the fan as needed to Off, Stage 1, and Stage 2.

> [MO] Command

Maintenance switch

Switches off the fan and the plant.

The fan outputs are blocked locally at a high priority (Prio 2).

> [BI] Maintenance switch

Fault message

Reports faults.

Switches off the fan and plant.

> [BI] Fault

Cooling coil

Cooling coil (Folder)



Reports chilled water demand to cooling distribution.

> [BCalcVal] Chilled water demand

Valve

Valve (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Valve position

Controls the valve position: 0...100 [%]

> [AO] Position

Heating coil



Heating coil (Folder)



Reports hot water demand to heat distribution.

> [BCalcVal] Hot water demand

Frost protection

Prevents the hot water heating coil from freezing.

If the frost protection monitor triggers:

  • The plant switches off.
  • The valve fully opens (100%) and the pump is also switched on. Both at high priority (Prio 4).

> [BI] Frost protection monitor

Purge optimization

Purges the heating coil with hot water at cold outside temperature prior to switching on fans.

Duration and valve opening are optimized using function [PURGE] purge optimization.

[PURGE] Purge optimization

> [BCalcVal] Startup purge active

Pump

Pump (Folder)

Pump command

Switches on/off the pump as needed.

> [BO] Command

Pump run when the outside air temperature is low:

Pump always operates at low outside temperatures (frost protection).



Kick function (pump kick)

Prevents the pump from seizing during long idle periods.

[KICKFNCT] Kick function



Valve

Valve (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Valve position

Controls the valve position: 0...100 [%]

> [AO] Position

Extract air fan

Extract air fan (Folder)

Monitor differential pressure

The plant is switched to off if the differential pressure does not build after switching on the fan.

> [BI] Differential pressure monitor

Command

Switches the fan as needed to Off, Stage 1, and Stage 2.

> [MO] Command

Maintenance switch

Switches off the fan and the plant.

The fan outputs are blocked locally at a high priority (Prio 2).

> [BI] Maintenance switch

Fault message

Reports faults.

Switches off the fan and plant.

> [BI] Fault

Extract air filter

Extract air filter (Folder)

Monitors the differential pressure through the extract air filter and reports a dirty filter.

> [BI] Filter detector

Mixed air damper

Modulates the dampers to control air quality.

Mixed air dampers (Folder)

> [AO] Position for outside air

> [AO] Position for recirculated air

> [AO] Position for exhaust air

Minimum outside air portion

Ensures that a minimum outside air portion is available.

> [ACnfVal] Minimum position for outside air

Ramp-up of plant at low outside air temperatures

The mixed air dampers support plant ramp-up after purge optimization at low outside temperatures by moving to recirculation (with the minimum outside air portion) for a short period. Control then assumes air quality.

Energy recovery

(Plate heat exchanger).

Reuses sensible energy from extract air for supply air by transferring heat.

Changeover heating/cooling:

Determines whether it can be heated or cooled using extract air:

  • Energy recovery can be used to heat if the extract air temperature is higher than the outside temperature.
  • Energy recovery can be used to cool if the extract air temperature is lower than the outside temperature.

Energy recovery (Folder)

Temperature controller

Controls the supply air temperature.

The supply air setpoint is the result of the average of the high setpoint for supply air temperature and the low setpoint for supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Modulating control

Modulates power of energy recovery: 0...100 [%]

> [AO] Modulating

Anti-icing protection

The temperature sensor measures the exhaust air temperature after energy recovery.

The anti-icing protection controller holds the exhaust air temperature sufficiently high by lowering the power. It prevents freezing of any condensation and icing on the exchanger surface.

> [AI] Exhaust air temperature after energy recovery

> [Controller] Anti-icing protection controller

Outside air filter

Outside air filter (Folder)

Monitors the differential pressure through the extract air filter and reports a dirty filter.

> [BI] Filter detector

Outside air damper

Outside air damper (Folder)

Command

Opens and closes the outside air damper.

Monitors the position open.

Adjustable damper runtime in the program.

> [BO] Command

> [BI] Feedback open

> [BCalcVal] Position monitoring

Exhaust air damper

Exhaust air damper (Folder)

Command

Opens and closes the exhaust air damper.

Monitors the position open.

Adjustable damper runtime in the program.

> [BO] Command

> [BI] Feedback open

> [BCalcVal] Position monitoring

Sensor for outside temperature

Measures outside temperature.

> [AI] Outside air temperature

Functions and diagrams

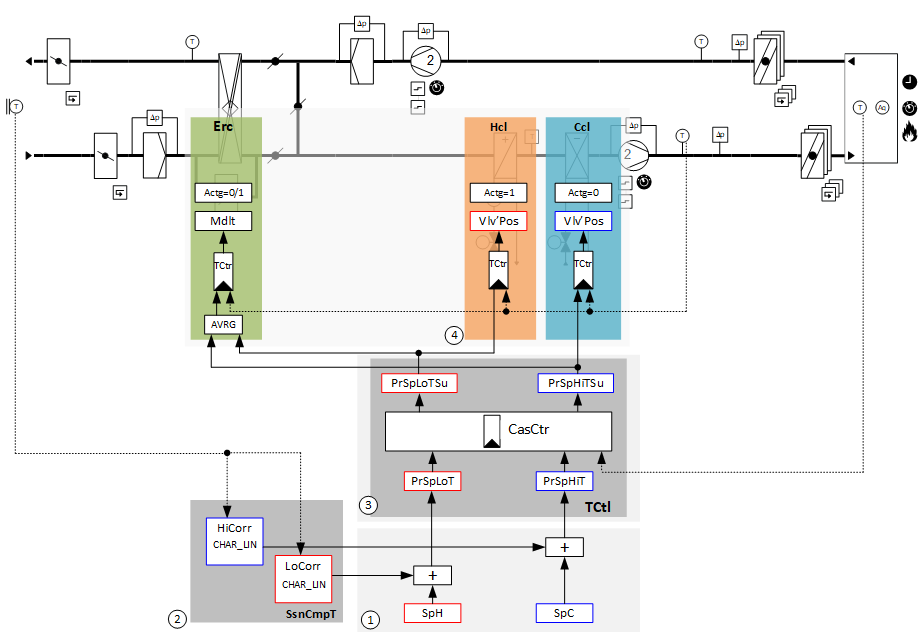

Overview

Room/supply air temperature cascade control with seasonal temperature compensation:

Key

Mdlt

Modulating

TCtr

Temperature controller

1

Basic setpoints for temperature control

SpH

Setpoint for heating

SpC

Setpoint for cooling

2

Seasonal temperature compensation

HiCorr

High correction value

LoCorr

Low correction value

3

Temperature cascade control

PrSpLoTSu

Present setpoint low for supply air temperature

PrSpHiTSu

Present setpoint high for supply air temperature

PrSpLoT

Present setpoint low for room temperature

PrSpHiT

Present setpoint high for room temperature

4

Supply air temperature control

VlvPos

Valve position

Plant example Ahu22 is used as room/supply air temperature cascade control.

Ahu22 can be adapted to the following applications with just a few modifications:

  • Extract air/supply air temperature cascade control
  • Pure supply air temperature control
  • Pure room temperature control

Temperature control basic setpoints (1)

Basic setpoints, that, for example, are operated by the operator:

BACnet objects

Name

Description

Object type

Default value

SpC

Setpoint for cooling

ACnfVal

24 [°C]

SpH

Setpoint for heating

ACnfVal

21 [°C]

This plant example deals with basic setpoints for temperature control of the room temperature setpoints.

Seasonal temperature compensation (2)

Seasonal temperature compensation corrects the high and low room temperature setpoint per the outside temperature.

The correction begins on the outside temperature start point [TOa...SttPnt] and ends with the outside temperature end point [TOa...EndPnt]. [Sp…CorrEndPnt] determines the height of the correction.

Key

PrSpShftHi

Output of the function seasonal temperature compensation

CHAR_LIN

Function block

SpHiCorrEndPnt

High correction value at the outside air end point

TOaHiEndPnt

Outside air temperature high for end point

TOa

Outside air temperature

TOaHiSttPnt

Outside air temperature high for start point

PrSpShftLo

Output of the function seasonal temperature compensation

SpLoCorrEndPnt

Low correction value at the outside air end point

TOaLoEndPnt

Outside temperature up to which the temperature compensation increases the low setpoint.

TOaLoSttPnt

Outside temperature at which the temperature compensation increases the low setpoint.

BACnet objects

Name

Description

Object type

Default value

SsnCmpT

Seasonal temperature compensation

The seasonal temperature compensation is active if a correction is not equal to zero.

BCalcVal

Inactive

Set values on function block CHAR_LIN

Name

Description

Default value

TOaHiSttPnt

Outside air temperature high for start point (X1 on CHAR_LIN)

Outside temperature at which the temperature compensation increases the high setpoint.

26 [°C]

TOaHiEndPnt

Outside air temperature high for end point (X2 on CHAR_LIN)

Outside temperature up to which the temperature compensation increases the high setpoint.

32 [°C]

SpHiCorrEndPnt

High correction value at the outside temperature end point = > Height of the correction (Y2 on CHAR_LIN)

3 [K]

TOaLoSttPnt

Outside air temperature low for start point (X1 on CHAR_LIN)

Outside temperature at which the temperature compensation increases the low setpoint.

26 [°C]

TOaLoEndPnt

Outside air temperature low for end point (X2 on CHAR_LIN)

Outside temperature up to which the temperature compensation increases the low setpoint.

32 [°C]

SpLoCorrEndPnt

Low correction value at the outside temperature end point = > Height of the correction (Y2 on CHAR_LIN)

1 [K]

Combination of basic setpoints (1) and seasonal temperature compensation (2)

Key

SpTR

Room temperature setpoint or extract air temperature setpoint

PrSpHiT

Present setpoint high for room temperature

PrSpShftHi

Output of the function seasonal temperature compensation

PrSpLoT

Present setpoint low for room temperature

PrSpShftLo

Output of the function seasonal temperature compensation

TOa

Outside air temperature

BACnet objects

Name

Description

Object type

Default value

PrSpHiT

Present setpoint high for room temperature

The present setpoint high room temperature or extract air setpoint for cooling operation as corrected by the seasonal temperature compensation

ACalcVal

23 [°C]

PrSpLoT

Present setpoint low for room temperature

The present setpoint low room temperature or extract air setpoint for heating operation as corrected by the seasonal temperature compensation

ACalcVal

22 [°C]

The comfort area for the room is defined using the two basic setpoints for the room or extract air temperature; both of which are compensated to account for outside temperature.

Temperature cascade control (3)

Temperature cascade control of the room supply air calculates the high and low supply air temperature setpoint as per the room temperature.

Function block CAS_CTR calculates the following setpoints:

  • [PrSpHiTSu] Present setpoint high for supply air temperature
  • [PrSpLoTSu] Present setpoint low for supply air temperature

[CAS_CTR] Cascade controller

The supply air setpoints [PrSpLoTSu] and [PrSpHiTSu] are limited on the low side by the minimum supply air temperature setpoint [SpTSuMin] and by the maximum supply air temperature setpoint [SpTSuMax] on the high side.

If the room or extract air temperature [TR] exceeds the present setpoint high for the room temperature [PrSpHiT], the present setpoint high for supply air [PrSpHiTSu] is continuously reduced until the minimum setpoint low for supply air [SpTSuMin] is reached.

If the room or extract air temperature [TR] drops below the present setpoint low for room temperature [PrSpLoT], the present setpoint low for supply air [PrSpLoTSu] is continuously increased until the maximum setpoint for supply air [SpTSuMax] is reached.

Setpoints are forwarded to the components responsible for supply air temperature control (4).

The setpoint for energy recovery with rotary heat exchanger is calculated using the average of [PrSpHiTSu] and [PrSpLoTSu].

Key

TSu

Supply air temperature

SpTSuMax

Maximum supply air temperature setpoint

PrSpLoTSu

Present setpoint low for supply air temperature

PrSpHiTSu

Present setpoint high for supply air temperature

SpTSuMin

Minimum supply air temperature setpoint

PrSpLoT

Present setpoint low for room temperature

PrSpHiT

Present setpoint high for room temperature

TR

Room temperature (or extract air temperature TEx)

BACnet objects

Name

Description

Object type

Default value

PrSpHiT

Present setpoint high for room temperature

The present setpoint high room temperature or extract air setpoint for cooling operation as corrected by the seasonal temperature compensation

ACalcVal

23 [°C]

PrSpLoT

Present setpoint low for room temperature

The present setpoint low room temperature or extract air setpoint for heating operation as corrected by the seasonal temperature compensation

ACalcVal

22 [°C]

PrSpHiTSu

Present setpoint high for supply air temperature

Calculated supply air setpoint for cooling

ACalcVal

18 [°C]

PrSpLoTSu

Present setpoint low for supply air temperature

Calculated supply air setpoint for heating

ACalcVal

18 [°C]

SpTSuMax

Maximum supply air temperature setpoint

Limits supply air on the high side.

ACnfVal

32 [°C]

SpTSuMin

Minimum supply air temperature setpoint

Limits supply air on the low side.

ACnfVal

15 [°C]

Gain

Gain

Gain factor for the cascade controller

ACnfVal

3 [K/K]

Tn

Integral action time Tn

Integral action time for the cascade controller

ICnfVal

1200 [s]

Supply air temperature control (4)

Key

Vlv'Pos, Erc'Pos

Positions

Actg =1

Control action for the plate heat exchanger is heating.

Actg =0

Control action for the plate heat exchanger is cooling.

Hcl'Vlv'Pos

Heating coil valve position

Erc'Mdlt

Modulation of energy recovery with plate heat exchanger

Ccl'Vlv'Pos

Cooling coil valve position

PrSpLoTSu

Present setpoint low for supply air temperature

PrSpHiTSu

Present setpoint high for supply air temperature

TSu

Supply air temperature

BACnet objects

Name

Description

Object type

Default value

Hcl'Vlv'TCtr

Temperature controller for heating coil

Controls the supply air temperature.

Controller

N/A

The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint [SpTSu] against the supply air temperature [TSu] and calculates the valve position [Hcl'Vlv'Pos] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

The controller is locked in the following cases:
- High outside temperature

Erc'TCtr

Temperature controller for energy recovery

Controls the supply air temperature.

Controller

N/A

Conditions for heating are fulfilled:
The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint (average of [PrSpHiTSu] and [PrSpLoTSu]) against the supply air temperature [TSu] and calculates the modulating control [Erc'Mdlt] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

Conditions for cooling are fulfilled:
The temperature controller changes over to a 2-position controller (CtlMod = 2-position control) and compares the temperature setpoint (average of [PrSpHiTSu] and [PrSpLoTSu]) against the supply air temperature [TSu] and calculates the modulating control [Erc'Mdlt] on the output. Control switches in this case between 0 and 100 [%].

The following controller variables are preset:
- Hysteresis [SwiOnHys]: 0.5 [K]
- Hysteresis [SwiOffHys]: 0.5 [K]
- Delay [SwiDly]: 5 [s]

Behavior at plant startup:

Ramp-up at low outside temperature and if purge optimization [PURGE] occurred:
Energy recovery is started at 100% and the temperature controller-heating coil immediately assumes temperature control.

Ramp-up if no purge optimization [PURGE] occurred:
Temperature controller-energy recovery is normally enabled and assumes temperature control.

Ccl'TCtr

Temperature controller for cooling coil

Controls the supply air temperature.

Controller

N/A

The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint [PrSpHiTSu] against the supply air temperature [TSu] and calculates the valve position [Ccl'Vlv'Pos] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

The controller is locked in the following cases:
- Low outside temperature

Icing protection on energy recovery with plate heat exchanger

Holds the exhaust air temperature sufficiently high by lowering the power.

Prevents freezing of any condensation and thus icing on the exchanger surface.

BACnet objects

Name

Description

Object type

Default value

Erc'lcPrtCtr

Anti-icing protection controller

Prevents icing on the exchanger surface.

Controller

N/A

The anti-icing protection controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint set on input [Sp] against the exhaust air temperature after energy recovery [TEhAfErc] and calculates value [YCtrMax] on the output on BACnet object Erc'TCtr (temperature controller for energy recovery).

The following controller variables are preset:
- Controller gain: 20 [%/K]
- Integral action time Tn: 120 [s]

Air quality control

Controls room air quality using mixed air dampers and fan stages.

Key

DmpMx'PosOa

Mixed air dampers, position for outside air

Fan'Cmd [1→2]

Fan, command, changeover Stage 1 to Stage 2

DmpMx'PosOaMin

Mixed air dampers, minimum position for outside air

SpAQualR

Setpoint for room air quality

AQualR

Room air quality

BACnet objects

Name

Description

Object type

Default value

AQualCtl'AQualCtr

Air quality controller for air quality control

Controls room air quality.

Controller

N/A

The air quality controller acts as a PI controller (PID with derivative action time Tv=0) and compares the room air quality setpoint [SpAQualR] against the room air quality [AQualR] and calculates the position for outside air [DmpMx'PosOa] on the output.

The following controller variables are preset:
- Controller gain: 0.25 [%/ppm]
- Integral action time Tn: 3600 [s]

Stage switching [1→2→1]:

It switches from Stage 1 to Stage 2 if the output of the air quality controller exceeds a value, e.g. 80%. It is switched to Stage 1 if the controller output declines and slightly exceeds, e.g. by 5%, the set value for the minimum position for outside air.

Plant operating modes and control sequence

Plant operating modes:

  • Off (1)
  • On (2)

The operating modes are reported on [MCalcVal] object 'Present operating mode'.

At the same time, the reason for the present operating mode is reported to another [MCalcVal] object:

  • Exception (1)
  • Operating mode switch (2), resulting from an active (not equal to Auto) operating mode switch
  • Manual operating mode selection (3), resulting from an active (not equal to Auto) manual operating mode selection
  • Room temperature sustained mode (4)
  • Night cooling (5)
  • Scheduler (6), resulting from an active scheduler
  • Switching action is performed (7) and is the result of a transition state on the plant, e.g. longer switch-off due to a delay to dry out the cooler

The components for control are connected to function block CMDSEQ_B and are also acquired by this function block. See table below.
[CMDSEQ_B] Command sequence for binary

There is a normal mode and exception mode.

Normal operation

Sources for normal mode:

  • [MI] Operating mode switch
  • [MCnfVal] Manual operating mode selection
  • Logic for room temperature sustained mode
  • [MSchedule] Scheduler
  • [BSchedule] Night cooling scheduler

In normal mode, the components are controlled at priority 15 per the operating mode, sequence, and function in function block CMDSEQ_B. The set timeouts and/or delays are considered.

Exception mode

Sources for exception mode:

  • Fire detection contact
  • Smoke detector
  • Faults in the components, e.g. fault contact, frost protection monitor, maintenance switch
  • Faulty monitoring signals, e.g. fire dampers not open, differential pressure and positive pressure monitoring

In exception mode, all outputs are switched off directly at priority 5 and the present operating mode is set to 'Off'. This is reported to function block CMDSEQ_B on input [RpdOff] and the components are switched off immediately as of the function block at priority 15.

The set timeouts and/or delays are not considered.

Special case frost protection:

In this case, outputs [AO] valve position and [BO] pump command are switched on by the heating coil at priority 4.

Special case maintenance switch:

In this case, outputs [AO] speed and [BO] command are switched off by the fans at priority 2.

Components, sequence, and function in CMDSEQ_B

Plant operating mode

Component



Hcl

DmpOa + FdpsSu

DmpEh + FdpsEx

Erc + DmpMx

FanSu

FanEh

Ccl

Off

Off

Off

Off

Off

Off

Off

Off

On

On

On

On

On

On

On

On



Sequences

Start sequence

1

2

2

3

3

3

3

Start function

Feedback or Timeout

AND (Group with next aggregate)

Feedback

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

Start delay

5m

-

-

-

-

-

-



Stop sequence

3

3

3

2

2

2

1

Stop function

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

Delay

AND (Group with next aggregate)

AND (Group with next aggregate)

Feedback or Timeout

Stop delay

-

-

-

1m

-

-

5m

Start sequence

  1. The heating coil switches on.
    It is further switched if an operating message from the heating coil arrives on the input pin of CMDSEQ_B or, at the latest after 5 minutes (function Feedback or Timeout). The ramp-up purge generates the operating message.
  2. The shutoff dampers switch on at the same time (function AND).
  3. In this plant example, the shutoff dampers have an end switch. It is still switched if the message open is on both dampers.
  4. The fans, energy recovery, and mixed air dampers and cooling coils switch on at the same time (function AND, Group with next aggregate).

Stop sequence

  1. The cooling coil switches off.
    It is further switched if an operating message (Off) from the cooling coil arrives on the input pin for CMDSEQ_B or, at the latest after 5 minutes (function Feedback or Timeout).
    When switching off the corresponding components (cooling coil), the operating message (On) is maintained up to 5 minutes It can dry out if it was operating. If it is not operating, its operating message is immediately set to Off without a delay to the stop sequence
  2. The fans, energy recovery, mixed air dampers, and reheater switch off at the same time (function AND, Group with next aggregate). It waits for 1 minute (function delay).
  3. The shutoff dampers and fire dampers close and the reheater switches off (function AND, Group with next aggregate).
Start-up control and alarm handling

Start-up control (nested chart SttUpAlmHdl)

The following functionality is available for an automatic startup of the plant, e.g. after a loss of power and return of power:

  1. Fixed switch-on delay (can be set on input pin [DlySttUp])
  2. The plant remains off to ensure communications are reliable and cross-check references are triggered. 'Exception' is reported as the reason for the present operating mode.
  3. Automatic acknowledge (2x) of possible pending alarms during a fixed switch-on delay.
  4. Additional adjustable delay for staged plant ramp-up (can be set on input pin [DlyOn])

Alarm handling (nested chart SttUpAlmHdl)

The state of events on the plant is acquired by BACnet object 'Plant state'. The state is mapped on function block CMN_EVT.
[CMN_EVT] Common event

The following functions are available:

  1. Automatic acknowledge (2x) after startup
  2. Alarm acknowledgement with a value object
  3. Alarm indication:
    - For pending alarms On
    - For unprocessed alarms flashing
  4. Ability to connect the acknowledge button [BI]
  5. Ability to connect to an alarm indication [BO], e.g. an alarm lamp through an output block [BO]
  6. Ability to connect to other alarm handling functions on other plants, e.g. acknowledge button and alarm indication for multiple plants in the same control cabinet

Startup function and alarm handling for flat plants

I/O data points

Name

Description

Type

Signal/connection

State text

Engineering unit

FireDetCont

Fire detection contact

Alarm function: Extended (Notification class 7)

Reference value: Tripped

Time deviation: 0 [s]

BI

NC contact

Normal | Tripped

N/A

OpModSwi

Operating mode switch

MI

N/A

Auto | Off | Stage 1 | Stage 2

N/A

TR

Room temperature

AI

LG-Ni1000

N/A

0...50 [°C]

AQualR

Room air quality

AI

0...10 [V]

N/A

0...2000 [ppm]

Fdp’Ex‘Cmd

Extract air fire dampers command

BO

NO contact

Close | Open

N/A

Fdp'Ex'FbOpnd

Extract air fire damper feedback open

BI

NO contact

Closed | Opened

N/A

Fdp'Su'Cmd

Supply air fire damper command

BO

NO contact

Close | Open

N/A

Fdp'Su'FbOpnd

Supply air fire damper feedback open

BI

NO contact

Closed | Opened

N/A

FanEx'PMaxMon

Extract air fan maximum pressure monitor

Alarm function: Extended (Notification class 7)

Reference value: Triggered

Time deviation: 10 [s]

BI

NO contact

Normal | Tripped

N/A

FanSu'PMaxMon

Supply air fan maximum pressure monitor

Alarm function: Extended (Notification class 7)

Reference value: Triggered

Time deviation: 10 [s]

BI

NO contact

Normal | Tripped

N/A

TEx

Extract air temperature

AI

LG-Ni1000

N/A

0...50 [°C]

TSu

Supply air temperature

AI

LG-Ni1000

N/A

0...50 [°C]

FanSu'Cmd

Supply air fan command

MO

NO contact

Off | Stage 1 |Stage 2

N/A

FanSu'MntnSwi

Supply air fan maintenance switch

Alarm function: Basic (Notification class 8)

Reference value: Maintenance

Time deviation: 0 [s]

BI

NO contact

Normal | Maintenance

N/A

FanSu'Flt

Supply air fan fault

Alarm function: Basic (Notification class 8)

Reference value: Tripped

Time deviation: 0 [s]

BI

NO contact

Normal | Tripped

N/A

Fa'Su'DiffPMon

Supply air fan differential pressure monitor

Alarm function: Extended (Notification class 7)

Reference value: Dynamically switched

Time deviation: 30 [s]

BI

NO contact

Off | On

N/A

Ccl'Vlv'Pos

Cooling coil valve position

AO

0...10 [V]

N/A

0...1000 [%]

Hcl'Vlv'Pos

Heating coil fan position

AO

0...10 [V]

N/A

0...100 [%]

Hcl'Pu'Cmd

Heating coil pump command

BO

NO contact

Off | On

N/A

Hcl'FrPrtMon

Frost protection monitor

Alarm function: Extended (Notification class 7)

Reference value: Tripped

Time deviation: 0 [s]

BI

NC contact

Normal | Tripped

N/A

FanEx'Cmd

Extract air fan command

MO

NO contact

Off | Stage 1 |Stage 2

N/A

FanEx'MntnSwi

Extract air fan maintenance switch

Alarm function: Basic (Notification class 8)

Reference value: Maintenance

Time deviation: 0 [s]

BI

NO contact

Normal | Maintenance

N/A

FanEx'Flt

Extract air fan fault

Alarm function: Basic (Notification class 8)

Reference value: Triggered

Time deviation: 0 [s]

BI

NO contact

Normal | Tripped

N/A

FanEx'DiffPMon

Extract air fan differential pressure monitor

Alarm function: Extended (Notification class 7)

Reference value: Dynamically switched

Time deviation: 30 [s]

BI

NO contact

Off | On

N/A

FilEx'FilDet

Extract air filter detector

BI

NO contact

Normal | Tripped

N/A

DmpMx'PosOa

Mixed air damper position for outside air

AO

0...10 [V]

N/A

0...100 [%]

DmpMx'PosRc

Mixed air damper position for mixed air

AO

0...10 [V]

N/A

0...100 [%]

DmpMx'PosEh

Mixed air damper position for exhaust air

AO

0...10 [V]

N/A

0...100 [%]

Erc'Mdlt

Energy recovery modulating control

AO

0...10 [V]

N/A

0...100 [%]

Erc'TEhAfErc

Energy recovery exhaust air temperature after heat exchanger

AI

LG-Ni1000

N/A

0...50 [°C]

DmpOa'Cmd

Outside air damper command

BO

NO contact

Close | Open

N/A

DmpOa'FbOpnd

Outside air damper feedback open

BI

NO contact

Closed | Opened

N/A

DmpEh'Cmd

Exhaust air damper command

BO

NO contact

Close | Open

N/A

DmpEh'FbOpnd

Exhaust air damper feedback open

BI

NO contact

Closed | Opened

N/A

FilOa'FilDet

Outside air filter detector

BI

NO contact

Normal | Tripped

N/A

TOa

Outside temperature

AI

LG-Ni1000

N/A

-70...70 [°C]
