[Ahu24] Air handling unit, supply air temperature and supply air humidity control, pressure control

Plant example Ahu24 has speed-controlled fans, chilled water cooling coil, hot water heating coil, hot water reheating coil, energy recovery with a run-around coil, humidifier and shutoff dampers.

Functions

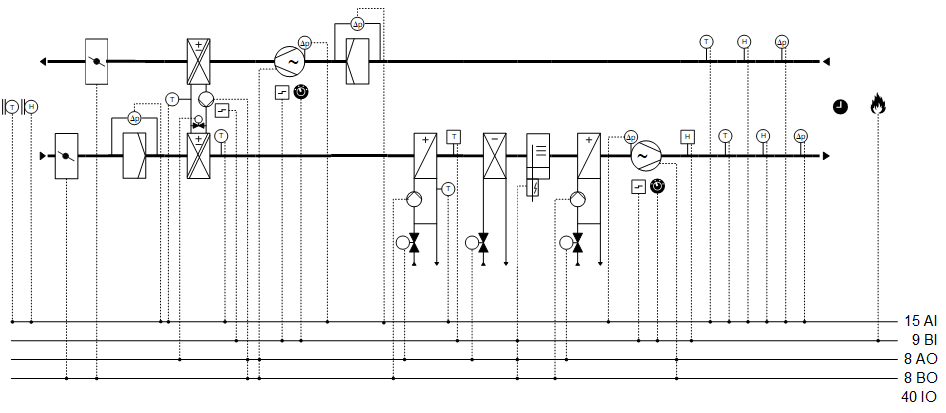

Plant diagram

Components

Components and functions

Components and functions of the plant example:

Component

Function

BACnet object

Fire detection contact

Switches the plant to: Off

[BI] Fire detection contact



Manual operating mode selection

Switches the plant to: Auto | Off | On

[MCnfVal] Manual operating mode selection

Scheduler program

Switches the plant to: Off | On

[MSchedule] Scheduler



Present operating mode

Reports the present operating mode: Off | On

Plant operating modes and control sequence

[MCalcVal] Present operating mode



Reason for present operating mode

Reports the reason for the present operating mode: Exception | Operating mode switch | Manual operating mode selection | Scheduler | Switching action operating

[MCalcVal] Reason for present operating mode



Temperature control basic setpoints (1)

Setpoints for upper (cooling setpoint) and lower (heating setpoint) extract air temperature

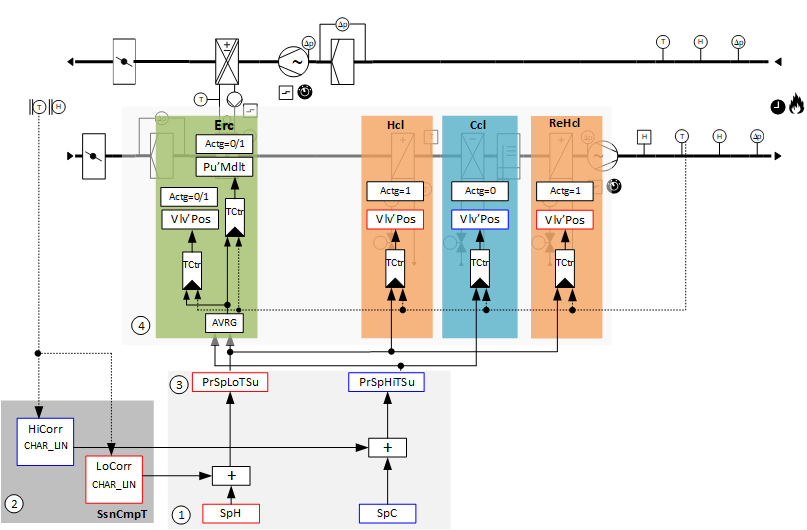

Function diagram for temperature control basic setpoints (1)

[ACnfVal] Setpoint for cooling

[ACnfVal] Setpoint for heating



Seasonal temperature compensation (2)

Corrects the high and low extract air temperature setpoint per the outside temperature.

Function diagram for seasonal temperature compensation (2)

[BCalcVal] Seasonal temperature compensation

> [ACalcVal] Present setpoint high for supply air temperature

> [ACalcVal] Present setpoint low for supply air temperature

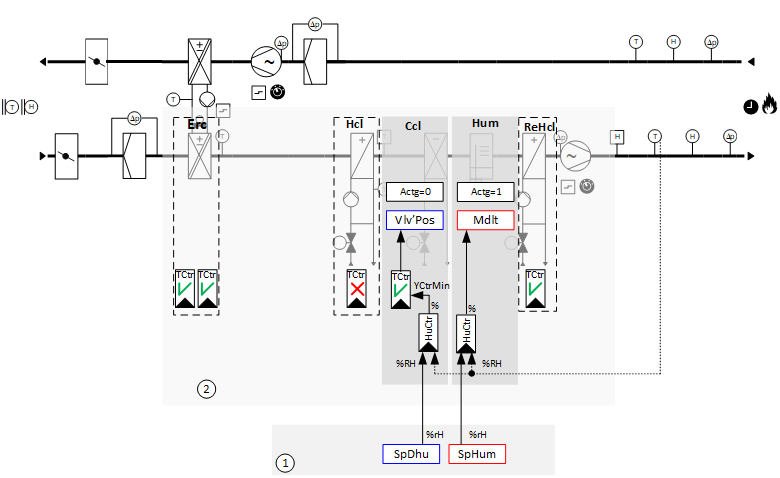

Humidity control basic setpoints (1)

Setpoints for upper (dehumidification setpoint) and lower (humidification setpoint) supply air humidity

> [ACnfVal] Setpoint for dehumidification

> [ACnfVal] Setpoint for humidification

Exhaust air differential pressure sensor

Measures the differential pressure between duct and environment.

[AI] Extract air pressure

(Located in extract air fan)

Monitor negative pressure

At too low a pressure, switches the plant to: Off



Flow monitoring extract air

The plant is switched to off if the differential pressure does not build after switching on the fan.

Monitors the dampers and the fan.

> [BCalcVal] Flow monitoring

Supply air differential pressure sensor

Measures the differential pressure between duct and environment.

> [AI] Supply air pressure

(Located in Supply air fan)

Monitor positive pressure

At too high a pressure, switches the plant to: Off



Flow monitoring supply air

The plant is switched to off if the differential pressure does not build after switching on the fan.

Monitors the dampers and the fan.

> [BCalcVal] Flow monitoring

Extract air temperature sensor

Measures extract air temperature.

> [AI] Extract air temperature

Extract air humidity sensor

Measures the extract air humidity.

> [AI] Extract air humidity

Supply air temperature sensor

Measures the supply air temperature.

> [AI] Supply air temperature

Supply air humidity sensor

Measures supply air humidity.

> [AI] Supply air humidity

Humidity detector

Limits the maximum relative supply air humidity.

> [BI] Humidity detector

(Located in Humidifier)

Supply air fan

Supply air fan (Folder)

Pressure controller

Controls the supply air pressure.

Function diagram for supply air pressure control

> [Controller] Pressure controller



Supply air pressure setpoint

Determines the setpoint for supply air pressure.

> [ACnfVal] Setpoint supply air pressure



Command

Switches on/off the fan as needed.

> [BO] Command

Speed

Controls the fan speed between 0 and 100 [%].

> [AO] Speed

Maintenance switch

Switches off the fan and the plant.

The fan outputs are blocked locally at a high priority (Prio 2).

> [BI] Maintenance switch

Fault message

Fault messages, e.g. from the external motor control (variable speed drives).

Switches off the fan and the plant.

> [BI] Fault

Volume flow calculation

Measures and calculates the volume flow.

Volume flow calculation (Folder)

Differential pressure sensor for volume flow calculation

Measures the differential pressure at one of the measuring points prepared on the fan for the volume flow measurement.

> [AI] Differential pressure for air volume flow calculation

Displays the volume flow.

> [ACalcVal] Air volume flow

Reheating coil

Reheating coils (Folder)

Reports hot water demand to heat distribution.

> [BCalcVal] Hot water demand

Pump

Pump (Folder)

Pump command

Switches on/off the pump as needed.

> [BO] Command

Pump run when the outside air temperature is low

Pump always operates at low outside temperatures (frost protection).



Kick function (pump kick)

Prevents the pump from seizing during long idle periods.

[KICKFNCT] Kick function



Valve

Valve (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Valve position

Controls the valve position: 0...100 [%]

> [AO] Position

Humidifier

Humidifier (Folder)

Humidity controller

Controls supply air humidity (humidification).

> [Controller] Humidity controller

Command

Switches on/off the humidifier as needed.

> [BO] Command

Control

Control the humidifier: 0 and 100 [%]

> [AO] Modulating

Fault message

Reports fault messages of the external humidifier fault.

> [BI] Fault

Cooling coil

Cooling coil (Folder)



Reports chilled water demand to cooling distribution.

> [BCalcVal] Chilled water demand

Valve

Valve (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Humidity controller

Controls supply air humidity (dehumidification).

Function diagram humidity control

> [Controller] Humidity controller

Valve position

Controls the valve position: 0...100 [%]

> [AO] Position

Heating coil



Heating coil (Folder)



Reports hot water demand to heat distribution.

> [BCalcVal] Hot water demand

Frost protection

Prevents the hot water heating coil from freezing.

The frost protection controller opens the valve (modulated) at a declining return temperature, e.g. below 10 [°C].

If the frost protection monitor triggers:

  • The plant switches off.
  • The valve fully opens (100%) and the pump is also switched on. Both at high priority (Prio 4).

> [BI] Frost protection monitor

> [Controller] Frost protection controller

Purge optimization

Purges the heating coil with hot water at cold outside temperature prior to switching on fans.

Duration and valve opening are optimized using function [PURGE] purge optimization.

[PURGE] Purge optimization

> [BCalcVal] Startup purge active

Return temperature sensor

Measures the return temperature.

The last purge optimization is prematurely canceled when exceeding a specific limit value, e.g. 30 [°C] during purge optimization.

Supports frost protection.

The reaction is the same as the one initiated for triggering the frost protection monitor, when dropping below a specific limit value, e.g. 4 [°C].

> [AI] Return temperature

Pump

Pump (Folder)

Pump command

Switches on/off the pump as needed.

> [BO] Command

Pump run when the outside air temperature is low

Pump always operates at low outside temperatures (frost protection).



Kick function (pump kick)

Prevents the pump from seizing during long idle periods.

[KICKFNCT] Kick function



Valve

Valve (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Valve position

Controls the valve position: 0...100 [%]

> [AO] Position

Extract air filter

Extract air filter (Folder)

Maintenance message after reaching the limit value for differential pressure.

This requires a volume flow measurement.

The present maintenance limits are derived from the smaller of the two values:

  1. Theoretical differential pressure for a clean filter from the filter characteristic curve plus the offset (typically 100 [Pa])
  2. Measured differential pressure multiplied by a factor (typically factor = 3)

Number 1 is the determinative value at average and large volume flows.

Number 2 is the determinative value at smaller volume flows.

> [AI] Differential pressure

> [ACalcVal] Present maintenance limit

> [BCalcVal] Maintenance indication

> [ACnfVal] Maintenance limit offset

> [ACnfVal] Maintenance limit factor

Extract air fan

Extract air fan (Folder)

Pressure controller

Controls extract air pressure.

Function diagram for extract air pressure control

> [Controller] Pressure controller



Setpoint extract air pressure

Determines the extract air pressure setpoint.

> [ACnfVal] Setpoint extract air pressure



Command

Switches on/off the fan as needed.

> [BO] Command

Speed

Controls the fan speed between 0 and 100 [%].

> [AO] Speed

Maintenance switch

Switches off the fan and the plant.

The fan outputs are blocked locally at a high priority (Prio 2).

> [BI] Maintenance switch

Fault message

Fault messages, e.g. from the external motor control (variable speed drives).

Switches off the fan and the plant.

> [BI] Fault

Volume flow calculation

Measures and calculates the volume flow.

Volume flow calculation (Folder)

Differential pressure sensor for volume flow calculation

Measures the differential pressure at one of the measuring points prepared on the fan for the volume flow measurement.

> [AI] Differential pressure for air volume flow calculation

Displays the volume flow.

> [ACalcVal] Air volume flow

Energy recovery

(Run-around coil system)

Reuses sensible energy from extract air for supply air by transferring heat.

Changeover heating/cooling:

Determines whether it can be heated or cooled using extract air:

  • Energy recovery can be used to heat if the extract air temperature is higher than the outside temperature.
  • Energy recovery can be used to cool if the extract air temperature is lower than the outside temperature.

Energy recovery (Folder)

Anti-icing protection

The temperature sensor measures the glycol temperature after energy recovery.

The anti-icing protection controller holds the glycol temperature sufficiently high by increasing the bypass rate.

Prevents freezing of any condensation and icing on the exchanger surface.

> [AI] Glycol temperature

> [Controller] Anti-icing protection controller

Efficiency

The thermal efficiency of heat recovery is calculated based on outside, extract, and supply air temperature after heat recovery.

> [AI] Supply air temperature after heat recovery

> [ACalcVal] Efficiency

Pump speed optimization

Limits the pump speed in the function of the extract air volume flow.

> [BCalcVal] Pump modulating limitation active

Valve

Valve (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Valve position

Controls the valve position: 0...100 [%]

> [AO] Position

Pump

Pump (Folder)

Temperature controller

Controls the supply air temperature.

Function diagram for supply air temperature control

> [Controller] Temperature controller

Pump command

Switches on/off the pump as needed.

> [BO] Command

Control

Controls the pump: 0 and 100 [%]

> [AO] Modulating

Reports pump faults.

Switches off the plant at a very low outside temperature, e.g. -15 [°C].

> [BI] Fault

Outside air filter

Outside air filter (Folder)

Maintenance message after exceeding the limit value for differential pressure.

This requires a volume flow measurement.

The present maintenance limits are derived from the smaller of the two values:

  1. Theoretical differential pressure for a clean filter from the filter characteristic curve plus the offset (typically 100 [Pa])
  2. Measured differential pressure multiplied by a factor (typically factor = 3)

Number 1 is the determinative value at average and large volume flows.

Number 2 is the determinative value at smaller volume flows.

> [AI] Differential pressure

> [ACalcVal] Present maintenance limit

> [BCalcVal] Maintenance indication

> [ACnfVal] Maintenance limit offset

> [ACnfVal] Maintenance limit factor

Outside air damper

Outside air damper (Folder)

Command

Opens and closes the outside air damper.

Adjustable damper runtime in the program.

> [BO] Command

Exhaust air damper

Exhaust air damper (Folder)

Command

Opens and closes the exhaust air damper.

Adjustable damper runtime in the program.

> [BO] Command

Sensor for outside temperature

Measures outside temperature.

> [AI] Outside air temperature

Outside air humidity

Measures outside air humidity.

> [AI] Outside air humidity

Functions and diagrams

Overview

Supply air temperature control with seasonal temperature compensation:

Key

1

Basic setpoints for temperature control

SpH

Setpoint for heating

SpC

Setpoint for cooling

2

Seasonal temperature compensation

HiCorr

High correction value

LoCorr

Low correction value

3

Present supply air temperature setpoints

PrSpLoTSu

Present setpoint low for supply air temperature

PrSpHiTSu

Present setpoint high for supply air temperature

4

Supply air temperature control

Erc

Energy recovery

Hcl

Heating coil

Ccl

Cooling coil

ReHcl

Reheating coil

Actg =1

Control action for the rotary heat exchanger is heating.

Actg =0

Control action for the rotary heat exchanger is cooling.

Pu'Mdlt

Pump, modulating control

Vlv-Pos

Valve position

TCtr

Temperature controller

Plant example Ahu24 is used as supply air temperature control.

Ahu24 can be adapted to the following applications with just a few modifications:

  • Extract air/supply air temperature cascade control
  • Room/supply air temperature cascade control
  • Pure room temperature control

Temperature control basic setpoints (1)

Basic setpoints, that, for example, are operated by the operator:

BACnet objects

Name

Description

Object type

Default value

SpC

Setpoint for cooling

ACnfVal

21 [°C]

SpH

Setpoint for heating

ACnfVal

20 [°C]

This plant example deals with basic setpoints for temperature control of the supply air setpoints.

Seasonal temperature compensation (2)

Seasonal temperature compensation corrects the high and low supply air temperature setpoint per the outside temperature.

The correction begins on the outside temperature start point [TOa...SttPnt] and ends with the outside temperature end point [TOa...EndPnt]. [Sp…CorrEndPnt] determines the height of the correction.

Key

PrSpShftHi

Output of the function seasonal temperature compensation

CHAR_LIN

Function block

TOa

Outside air temperature

SpHiCorrEndPnt

High correction value at the outside temperature end point

TOaHiEndPnt

Outside air temperature high for end point

TOaHiSttPnt

Outside air temperature high for start point

PrSpShftLo

Output of the function seasonal temperature compensation

SpLoCorrEndPnt

Low correction value at the outside temperature end point

TOaLoEndPnt

Outside temperature up to which the temperature compensation increases the low setpoint.

TOaLoSttPnt

Outside temperature at which the temperature compensation increases the low setpoint.

BACnet objects

Name

Description

Object type

Default value

SsnCmpT

Seasonal temperature compensation

The seasonal temperature compensation is active if a correction is not equal to zero.

BCalcVal

Inactive

Set values on function block CHAR_LIN

Name

Description

Default value

TOaHiSttPnt

Outside air temperature high for start point (X1 on CHAR_LIN)

Outside temperature at which the temperature compensation increases the high setpoint.

30 [°C]

TOaHiEndPnt

Outside air temperature high for end point (X2 on CHAR_LIN)

Outside temperature up to which the temperature compensation increases the high setpoint.

34 [°C]

SpHiCorrEndPnt

High correction value at the outside temperature end point = > Height of the correction (Y2 on CHAR_LIN)

-2 [K]

TOaLoSttPnt

Outside air temperature low for start point (X1 on CHAR_LIN)

Outside temperature at which the temperature compensation increases the low setpoint.

-10 [°C]

TOaLoEndPnt

Outside air temperature low for end point (X2 on CHAR_LIN)

Outside temperature up to which the temperature compensation increases the low setpoint.

-15 [°C]

SpLoCorrEndPnt

Low correction value at the outside temperature end point = > Height of the correction (Y2 on CHAR_LIN)

2 [K]

Combination of basic setpoints (1) and seasonal temperature compensation (2) and (3)

Key

SpTSu

Setpoint for supply air temperature

PrSpShftLo

Output of the function seasonal temperature compensation

SpC

Setpoint for cooling

SpH

Setpoint for heating

PrSpLoTSu

Present setpoint low for supply air temperature

PrSpHiTSu

Present setpoint high for supply air temperature

PrSpShftHi

Output of the function seasonal temperature compensation

PrSpHiTSu

Present setpoint high for supply air temperature

BACnet objects

Name

Description

Object type

Default value

PrSpHiTSu

Present setpoint high for supply air temperature

The present setpoint high for supply air temperature for cooling operation as corrected by the seasonal temperature compensation

ACalcVal

21 [°C]

PrSpLoTSu

Present setpoint low for supply air temperature

The present setpoint low for supply air temperature for heating operation as corrected by the seasonal temperature compensation

ACalcVal

20 [°C]

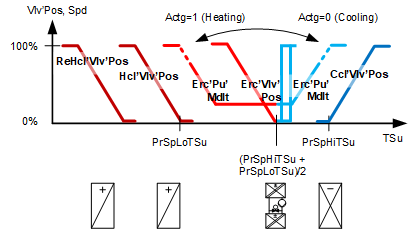

Supply air temperature control (4)

Key

Vlv'Pos, Spd

Valve position, speed

Actg =1

Control action for the rotary heat exchanger is heating.

Actg =0

Control action for the rotary heat exchanger is cooling.

ReHcl'Vlv'Pos

Reheating coil valve position

Hcl'Vlv'Pos

Heating coil valve position

Erc'Pu'Mdlt

Modulating control of energy recovery pump

Erc'Vlv'Pos

Energy recovery bypass valve position

Ccl'Vlv'Pos

Cooling coil valve position

PrSpLoTSu

Present setpoint low for supply air temperature

PrSpHiTSu

Present setpoint high for supply air temperature

TSu

Supply air temperature

BACnet objects

Name

Description

Object type

Default value

ReHcl'Vlv'TCtr

Temperature controller air reheating coil

Controls the supply air temperature.

Controller

N/A

The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint [PrSpLoTSu] against the supply air temperature [TSu] and calculates the valve position [ReHcl'Vlv'Pos] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

The controller is locked in the following cases:
- High outside air temperature (it is also released at a high outside air temperature even in the case of dehumidification)

Hcl'Vlv'TCtr

Temperature controller for heating coil

Controls the supply air temperature.

Controller

N/A

The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint [SpTSu] against the supply air temperature [TSu] and calculates the valve position [Hcl'Vlv'Pos] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

The controller is locked in the following cases:
- High outside temperature
- Dehumidification

HCl'FrPrtCtl

Frost protection heating coil

Supports frost protection.

Controller

N/A

The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint of 10 [°C] against the return air temperature [Hcl'TRt] and calculates the valve position [Hcl'Vlv'Pos] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

Erc'Pu'TCtr

Temperature controller for energy recovery pump

Controls the supply air temperature.

Controller

N/A

Conditions for heating are fulfilled:
The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint (average of [PrSpHiTSu] and [PrSpLoTSu]) against the supply air temperature [TSu] and calculates the speed [Erc'Spd] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

Conditions for cooling are fulfilled:
The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint (average of [PrSpHiTSu] and [PrSpLoTSu]) against the supply air temperature [TSu] and calculates the modulating control for the pump [Erc'Pu'Mdlt] on the output.

The pump speed is limited in the function of the extract air volume flow.

The volume flow volumes for the limitation are set specific to the project.

Behavior at plant startup:

Ramp-up at low outside temperature and if purge optimization [PURGE] occurred:
Energy recovery is started at 100% and the temperature controller-heating coil immediately assumes temperature control.

Ramp-up if no purge optimization [PURGE] occurred:
Temperature controller-energy recovery is normally enabled and assumes temperature control.

Erc'Vlv'TCtr

Temperature controller for energy recovery bypass valve

Controls the supply air temperature.

Controller

N/A

Conditions for heating are fulfilled:
The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint (average of [PrSpHiTSu] and [PrSpLoTSu]) against the supply air temperature [TSu] and calculates the speed [Erc'Spd] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

Conditions for cooling are fulfilled:
The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint (average of [PrSpHiTSu] and [PrSpLoTSu]) against the supply air temperature [TSu] and calculates the modulating control for the pump [Erc'Pu'Mdlt] on the output.

Behavior at plant startup:

Ramp-up at low outside temperature and if purge optimization [PURGE] occurred:
Energy recovery is started at 100% and the temperature controller-heating coil immediately assumes temperature control.

Ramp-up if no purge optimization [PURGE] occurred:
Temperature controller-energy recovery is normally enabled and assumes temperature control.

Ccl'TCtr

Temperature controller for cooling coil

Controls the supply air temperature.

Controller

N/A

The temperature controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint [PrSpHiTSu] against the supply air temperature [TSu] and calculates the valve position [Ccl'Vlv'Pos] on the output.

The following controller variables are preset:
- Controller gain: 5 [%/K]
- Integral action time Tn: 180 [s]

The controller is locked in the following cases:
- Low outside temperature

Icing protection on energy recovery with run-around coil

Holds the glycol temperature sufficiently high by increasing the bypass rate.

Prevents freezing of any condensation and thus icing on the exchanger surface.

BACnet objects

Name

Description

Object type

Default value

Erc'lcPrtCtr

Anti-icing protection controller

Prevents icing on the exchanger surface.

Controller

N/A

The anti-icing protection controller acts as a PI controller (PID with derivative action time Tv=0) and compares the temperature setpoint set on input [Sp] against the glycol temperature [Erc'TGly] and calculates value [YCtrMax] on the output on BACnet object Erc'Vlv'TCtr (temperature controller valve for energy recovery).

The following controller variables are preset:
- Controller gain: 10 [%/K]
- Integral action time Tn: 120 [s]

Supply air humidity control:

Key

1

Basic setpoints humidity control

SpHum

Setpoint for humidification

SpDhu

Setpoint for dehumidification

2

Supply air humidity control

Erc

Energy recovery

Hcl

Heating coil

Ccl

Cooling coil

Hum

Humidifier

ReHcl

Reheating coil

Actg =0

Control action for the rotary heat exchanger is cooling.

Actg =1

Control action for the rotary heat exchanger is heating.

Vlv-Pos

Valve position

Mdlt

Modulating

TCtr

Temperature controller

HuCtr

Humidity controller

Plant example Ahu24 is used as supply air humidity control.

Humidity control basic setpoints (1)

Basic setpoints, that, for example, are operated by the operator:

BACnet objects

Name

Description

Object type

Default value

SpDhu

Setpoint for dehumidification

ACnfVal

60 [%RH]

SpHum

Setpoint for humidification

ACnfVal

45 [%RH]

This plant example deals with basic setpoints for humidity control of the supply air setpoints.

Supply air humidity control (2)

Key

Vlv'Pos, Mdlt

Valve position, modulating control

Hum'Mdlt

Modulating control of the humidifier

Ccl'Vlv'Pos

Cooling coil valve position

SpHum

Setpoint for humidification

SpDhu

Setpoint for dehumidification

HuSu

Supply air humidity

BACnet objects

Name

Description

Object type

Default value

Hum'HuCtr

Humidity controller-humidifier

Controls supply air humidity.

Controller

N/A

The humidity controller acts as a PI controller (PID derivative actions time Tv=0) and compares the setpoint for humidification [SpHum] against the supply air humidity [HuSu] and calculates the modulating control [Hum'Mdlt] on the output.

The following controller variables are preset:
- Controller gain: 1 [%/g/kg]
- Integral action time Tn: 180 [s]

Ccl'Vlv'HuCtr

Humidity controller cooling coils

Controls supply air humidity.

Controller

N/A

The humidity controller acts as a PI controller (PID with derivative action time Tv=0) and compares the humidity setpoint [SpDHu] against the supply air humidity [HuSu] and calculates the valve position [Ccl'Vlv'Pos] on the output. It is supplied as a minimum controller output [YCtrMin] to the temperature controller (Ccl'Vlv'TCtr).

The following controller variables are preset:
- Controller gain: 1 [%/g/kg]
- Integral action time Tn: 180 [s]

Supply air pressure control

Controls the supply air pressure using the supply air fan.

Key

Spd, PrVal

Speed, Present value

SpdMax

Maximum speed

SpdMin

Minimum speed

SpP

Pressure setpoint

P

Pressure

BACnet objects

Name

Description

Object type

Default value

FanSu'PCtr

Pressure controller for supply air fan

Controls the supply air pressure.

Controller

N/A

The pressure controller acts as a PI controller (PID with derivative action time Tv=0) and compares the setpoint for supply air pressure [SpPSu] against the supply air pressure [PSu] and calculates the fan speed [Spd] on the output.

The following controller variables are preset:
- Controller gain: 0.2 [%/Pa]
- Integral action time Tn: 60 [s]

Extract air pressure controller

Controls the extract air pressure using an extract air fan.

Key

Spd, PrVal

Speed, Present value

SpdMax

Maximum speed

SpdMin

Minimum speed

SpP

Pressure setpoint

P

Pressure

BACnet objects

Name

Description

Object type

Default value

FanEx'PCtr

Pressure controller for extract air fan

Controls extract air pressure.

Controller

N/A

The pressure controller acts as a PI controller (PID with derivative action time Tv=0) and compares the setpoint for extract air pressure [SpPEx] against the extract air pressure [PEx] and calculates the fan speed [Spd] on the output.

The following controller variables are preset:
- Controller gain: 0.2 [%/Pa]
- Integral action time Tn: 60 [s]

Plant operating modes and control sequence

Plant operating modes:

  • Off (1)
  • On (2)

The operating modes are reported on [MCalcVal] object 'Present operating mode'.

At the same time, the reason for the present operating mode is reported to another [MCalcVal] object:

  • Exception (1)
  • Manual operating mode selection (2), resulting from an active (not equal to Auto) manual operating mode selection
  • Scheduler (3), resulting from an active scheduler
  • Switching action is performed (4) and is the result of a transition state on the plant (e.g. longer switch-off due to a delay to dry out the cooler)

The components for control are connected to function block CMDSEQ_B and are also acquired by this function block. See table below.
[CMDSEQ_B] Command sequence for binary

There is a normal mode and exception mode.

Normal operation

Sources for normal mode:

  • [MCnfVal] Manual operating mode selection
  • [MSchedule] Scheduler

In normal mode, the components are controlled at priority 15 per the operating mode, sequence, and function in function block CMDSEQ_B. The set timeouts and/or delays are considered.

Exception mode

Sources for exception mode:

  • Fire detection contact
  • Faults in the components, e.g. fault contact, frost protection monitor, maintenance switch
  • Faulty monitoring signals, e.g. flow monitoring

In exception mode, all outputs are switched off directly at priority 5 and the present operating mode is set to 'Off'. This is reported to function block CMDSEQ_B on input [RpdOff] and the components are switched off immediately as of the function block at priority 15.

The set timeouts and/or delays are not considered.

Special case frost protection:

In this case, outputs [AO] valve position and [BO] pump command are switched on by the heating coil at priority 4.

Special case maintenance switch:

In this case, outputs [AO] speed and [BO] command are switched off by the fans at priority 2.

Components, sequence, and function in CMDSEQ_B

Plant operating mode

Component



Hcl

DmpOa

DmpEh

Erc

FanSu

FanEx

ReHcl

Ccl

Hum

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

On

On

On

On

On

On

On

On

On

On



Sequences

Start sequence

1

2

2

3

3

3

3

3

3

Start function

Feedback or Timeout

AND (Group with next aggregate)

Feedback

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

Start delay

5m

-

-

-

-

-

-

-

-



Stop sequence

3

3

3

2

2

2

2

1

1

Stop function

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

Delay

AND (Group with next aggregate)

AND (Group with next aggregate)

AND (Group with next aggregate)

Feedback or Timeout

AND (Group with next aggregate)

Stop delay

-

-

-

1m

-

-

-

5m

-

Start sequence

  1. The heating coil switches on.
    It is further switched if an operating message from the heating coil arrives on the input pin of CMDSEQ_B or, at the latest after 5 minutes (function Feedback or Timeout). The ramp-up purge generates the operating message.
  2. The shutoff dampers switch on (function AND).
  3. In this plant example, the shutoff dampers do not have an end switch. The operating message (closed, open) is formed via commands and set runtimes for the applicable damper. It is still switched if the message (open) is on both dampers.
  4. The fans, energy recovery, air cooling coil, the reheater, and the humidifier switch on at the same time (function AND, Group with next aggregate).

Stop sequence

  1. The humidifier and cooling coil switch off at the same time (function AND, Group with next aggregate).
    It is further switched if an operating message (Off) from both components arrives on the input pin of CMDSEQ_B or, at the latest after 5 minutes (function Feedback or Timeout).
    When switching off the corresponding components (humidifier and cooling coil), the operating message (On) is maintained up to 5 minutes. The component can dry out if it was operating. If the component is not operating, its operating message is immediately set to Off without a delay to the stop sequence.
  2. The fans, energy recovery, and reheater switch off at the same time (function AND, Group with next aggregate). It waits for 1 minute (function delay).
  3. The shutoff dampers close and the heater switches off (function AND, Group with next aggregate).
Start-up control and alarm handling

Start-up control (nested chart SttUpAlmHdl)

The following functionality is available for an automatic startup of the plant, e.g. after a loss of power and return of power:

  1. Fixed switch-on delay (can be set on input pin [DlySttUp])
  2. The plant remains off to ensure communications are reliable and cross-check references are triggered. 'Exception' is reported as the reason for the present operating mode.
  3. Automatic acknowledge (2x) of possible pending alarms during a fixed switch-on delay.
  4. Additional adjustable delay for staged plant ramp-up (can be set on input pin [DlyOn])

Alarm handling (nested chart SttUpAlmHdl)

The state of events on the plant is acquired by BACnet object 'Plant state'. The state is mapped on function block CMN_EVT.
[CMN_EVT] Common event

The following functions are available:

  1. Automatic acknowledge (2x) after startup
  2. Alarm acknowledgement with a value object
  3. Alarm indication:
    - For pending alarms On
    - For unprocessed alarms flashing
  4. Ability to connect the acknowledge button [BI]
  5. Ability to connect to an alarm indication [BO], e.g. an alarm lamp through an output block [BO]
  6. Ability to connect to other alarm handling functions on other plants, e.g. acknowledge button and alarm indication for multiple plants in the same control cabinet

Startup function and alarm handling for flat plants

I/O data points

Name

Description

Type

Signal / connection

State text

Engineering unit

FireDetCont

Fire detection contact

Alarm function: Extended (Notification class 7)

Reference value: Tripped

Time deviation: 0 [s]

BI

NC contact

Normal | Tripped

N/A

FanEh'PEx

Extract air fan extract air pressure

AI

0...10 [V]

N/A

0...500 [Pa]

FanSu'Psu

Supply air fan supply air pressure

AI

0...10 [V]

N/A

0...500 [Pa]

TEx

Extract air temperature

AI

LG-Ni1000

N/A

0...50 [°C]

HuEx

Extract air humidity

AI

0...10 [V]

N/A

0...1000 [%RH]

TSu

Supply air temperature

AI

LG-Ni1000

N/A

0...50 [°C]

HuSu

Supply air humidity

AI

0...10 [V]

N/A

0...1000 [%RH]

Hum'HuDet

Humidifier humidity detector

BI

NC contact

Normal | Tripped

N/A

FanSu'Spd

Supply air fan speed

AO

0...10 [V]

N/A

0...100 [%]

FanSu'Cmd

Supply air fan command

BO

NO contact

Off | On

N/A

FanSu'MntnSwi

Supply air fan maintenance switch

Alarm function: Basic (Notification class 8)

Reference value: Maintenance

Time deviation: 0 [s]

BI

NO contact

Normal | Maintenance

N/A

FanSu'Flt

Supply air fan fault

Alarm function: Basic (Notification class 8)

Reference value: Tripped

Time deviation: 0 [s]

BI

NO contact

Normal | Tripped

N/A

FanSu'AirFlCalc'DiffP

Supply air fan air volume flow calculation Differential pressure

AI

0...10 [V]

N/A

0...1000 [Pa]

ReHcl'Vlv'Pos

Reheating coil valve position

AO

0...10 [V]

N/A

0...1000 [%]

ReHcl'Pu'Cmd

Reheater heating coil pump command

BO

NO contact

Off | On

N/A

Hum'Cmd

Humidifier command

BO

NO contact

Off | On

N/A

Hum'Mdlt

Humidifier modulating control

AO

0...10 [V]

N/A

0...1000 [%]

Hum'Flt

Humidifier fault message

BI

NO contact

Normal | Tripped

N/A

Ccl'Vlv'Pos

Cooling coil valve position

AO

0...10 [V]

N/A

0...1000 [%]

Hcl'TRt

Heating coil return temperature

AI

LG-Ni1000

N/A

0...100 [°C]

Hcl'Vlv'Pos

Heating coil fan position

AO

0...10 [V]

N/A

0...100 [%]

Hcl'Pu'Cmd

Heating coil pump command

BO

NO contact

Off | On

N/A

Hcl'FrPrtMon

Frost protection monitor

Alarm function: Extended (Notification class 7)

Reference value: Tripped

Time deviation: 0 [s]

BI

NC contact

Normal | Tripped

N/A

FilEx'DiffP

Extract air filter differential pressure

AI

0...10 [V]

N/A

0...500 [Pa]

FanEx'Spd

Exhaust air fan speed

AO

0...10 [V]

N/A

0...100 [%]

FanEx'Cmd

Exhaust air fan command

BO

NO contact

Off | On

N/A

FanEx'MntnSwi

Exhaust air fan maintenance switch

Alarm function: Basic (Notification class 8)

Reference value: Maintenance

Time deviation: 0 [s]

BI

NO contact

Normal | Maintenance

N/A

FanEx'Flt

Exhaust air fan fault

Alarm function: Basic (Notification class 8)

Reference value: Tripped

Time deviation: 0 [s]

BI

NO contact

Normal | Tripped

N/A

FanSu'AirFlCalc'DiffP

Extract air fan air volume flow calculation differential pressure

AI

0...10 [V]

N/A

0...1000 [Pa]

Erc'Vlv'Pos

Energy recovery valve position

AO

0...10 [V]

N/A

0...100 [%]

Erc'Pu'Cmd

Energy recovery pump command

BO

NO contact

Off | On

N/A

Erc'Pu'Mdlt

Energy recovery pump modulating control

AO

0...10 [V]

N/A

0...100 [%]

Erc'Pu'Flt

Energy recovery pump fault

Alarm function: Extended (Notification class 7)

Reference value: Tripped

Time deviation: 0 [s]

BI

NO contact

Normal | Tripped

N/A

Erc'TGly

Energy recovery glycol temperature

AI

LG-Ni1000

N/A

-20...50 [°C]

Erc'TSuAfErc

Energy recovery supply air temperature after energy recovery

AI

LG-Ni1000

N/A

0...50 [°C]

FilOa'DiffP

Outside air filter differential pressure

AI

0...10 [V]

N/A

0...500 [Pa]

DmpOa'Cmd

Outside air damper command

BO

NO contact

Close | Open

N/A

DmpEh'Cmd

Exhaust air damper command

BO

NO contact

Close | Open

N/A

TOa

Outside temperature

AI

LG-Ni1000

N/A

-70...70 [°C]

HuOa

Outside air humidity

AI

0...10 [V]

N/A

0...1000 [%RH]
