[HGen24x] Heat generation, multiple heat generators, hot water storage tank
Name: [HGen24x] Heat generation, multiple heat generators, hot water storage tank (all options)
Library hierarchy: Plants
Plant operating modes
- Off
- On

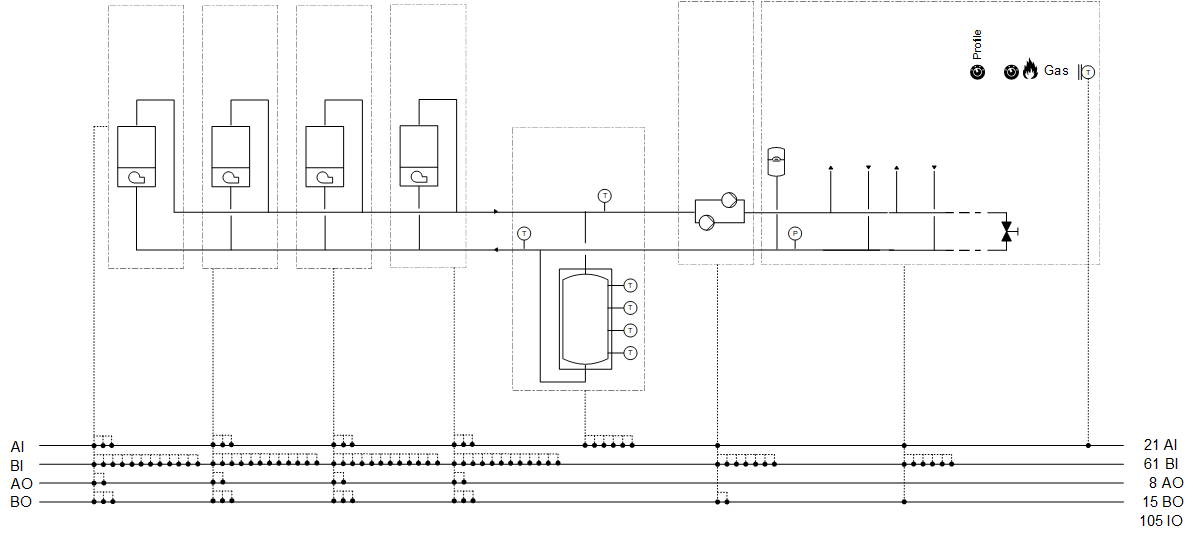

Plant diagram
Main functions | Main components |
|---|---|
|
|
Program blocks
|

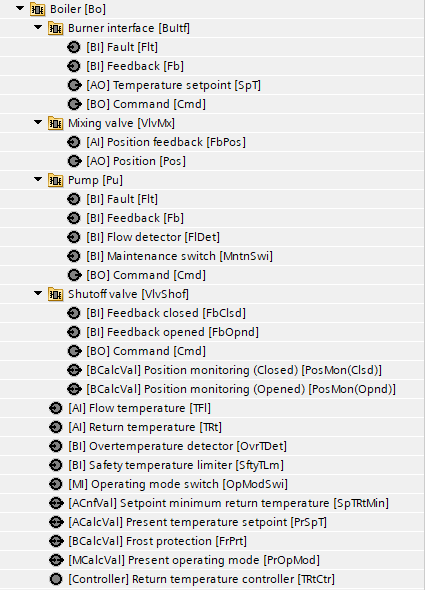

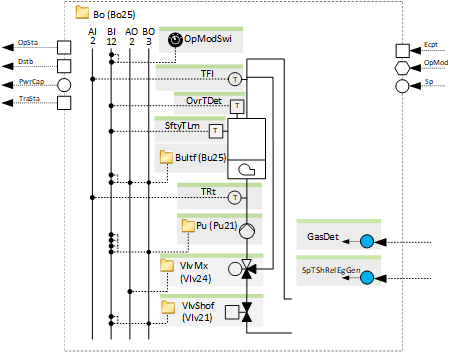

Boiler 1 | |
|
|
Boiler 2 (Optional) | |
|
|
Boiler 3 (Optional) | |
|
|
Boiler 4 (Optional) | |
|
|
Sensors, setpoints and control | |
[HGenCtl22] Sensors, setpoints and control for multiple heat generators | |
|
|
Plant operating mode | |
[HGenPltMod21] Plant operating mode determination for heat generation | |
|
|
Power control and compensation | |
Profile determination | |
|
|
Main pump group | |
|
|
Target power calculation (Optional) | |
|
|
Supply chain for hot water (Optional) | |
|
|
