[HCGen22x] Heating and cooling generation, multiple chillers with heat recovery/heat pumps, external control
Name: [HCGen22x] Heating and cooling generation, multiple chillers with heat recovery/heat pumps, external control
Library hierarchy: Plants
Plant operating modes
- Off
- On

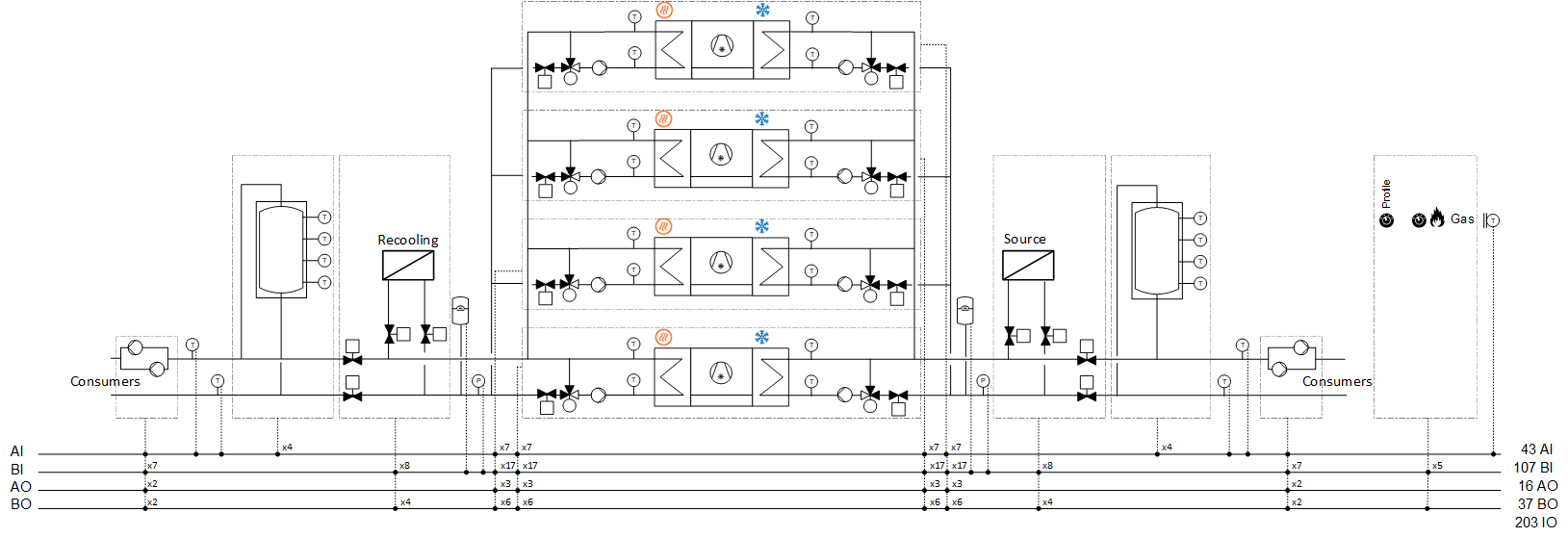

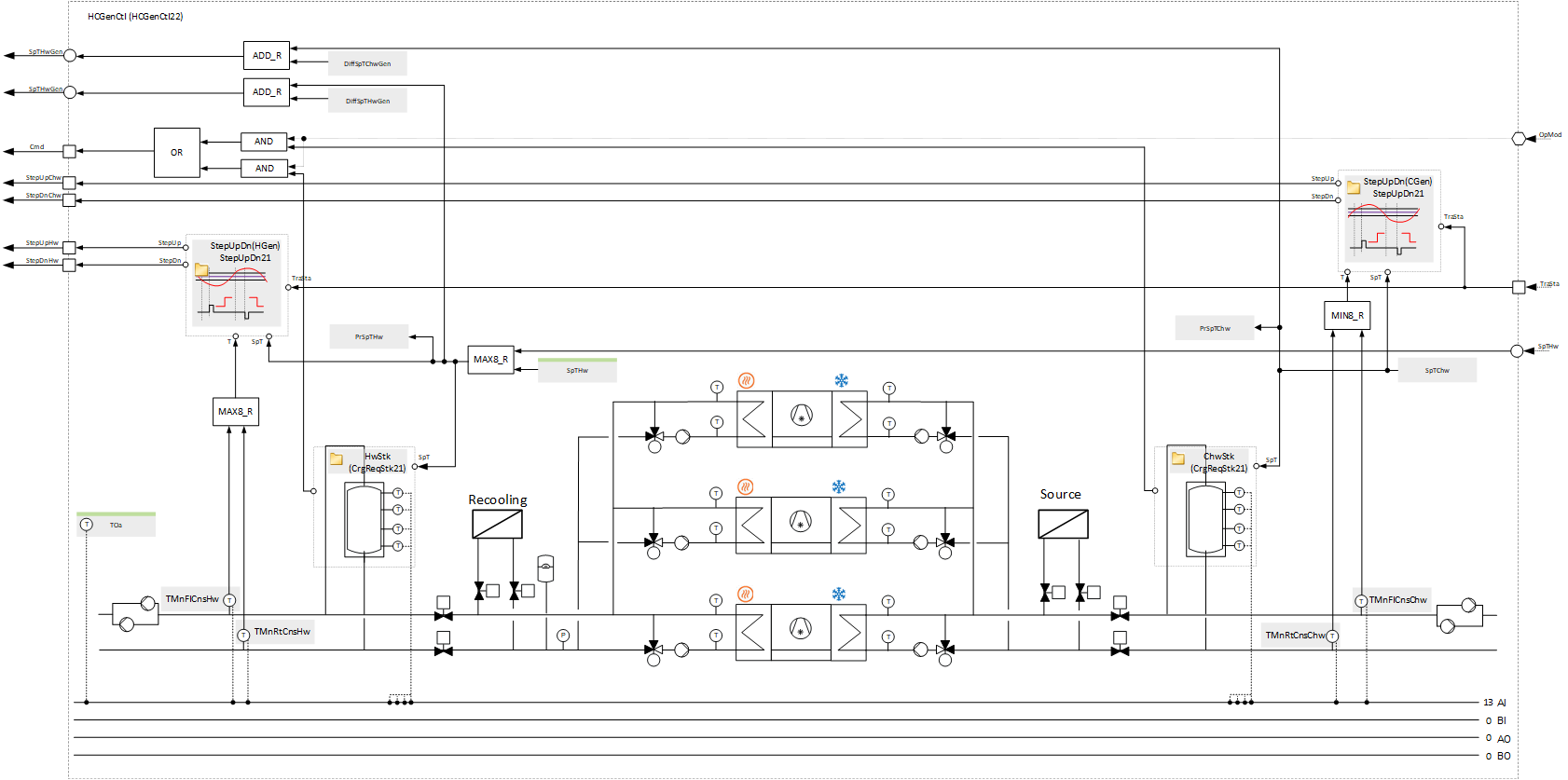

Plant diagram
Main functions | Main components |
|---|---|
|
|
|
Heat pump 1 | |
|
|
Heat pump 2 (Optional) | |
|
|
Heat pump 3 (Optional) | |
|
|
Heat pump 4 (Optional) | |
|
|
Sensors, setpoints and control | |

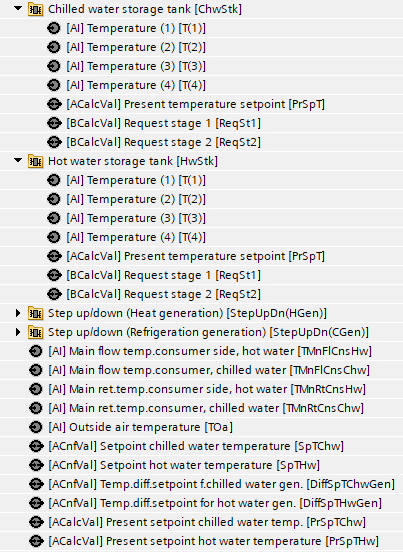

[HCGenCtl22] Sensors, setpoints and control for multiple heating and cooling generators | |
|
|
Plant operating mode | |
[HCGenPltMod21] Plant operating mode determination for heating and cooling generation | |
|
|
Power control and compensation (Heat generation) | |
Power control and compensation (Refrigeration generation) | |
Profile determination | |
|
|
Main pump group, hot water side (Optional) | |
|
|
Main pump group, chilled water side (Optional) | |
|
|
Shutoff valve, hot water consumer (Flow) (Part of the option "Shutoff valve, hot water consumer") | |
|
|
Shutoff valve, hot water consumer (Return) (Part of the option "Shutoff valve, hot water consumer") | |
|
|
Shutoff valve, recooling (Flow) (Part of the option "Shutoff valve, recooling") | |
|
|
Shutoff valve, recooling (Return) (Part of the option "Shutoff valve, recooling") | |
|
|
Shutoff valve, chilled water consumer (Flow) (Part of the option "Shutoff valve, chilled water consumer") | |
|
|
Shutoff valve, chilled water consumer (Return) (Part of the option "Shutoff valve, chilled water consumer") | |
|
|
Shutoff valve, source (Flow) (Part of the option "Shutoff valve, source") | |
|
|
Shutoff valve, source (Return) (Part of the option "Shutoff valve, source") | |
|
|
Supply chain for hot water (Optional) | |
|
|
Supply chain for chilled water (Optional) | |
|
|
