[Pu21] Pump, 1-speed
Program block, name / node subtype: [Pu21] Pump, 1-speed
Library hierarchy: Universal equipment
Family: Pu
Project tree | Diagram |
|---|---|
|
|
|

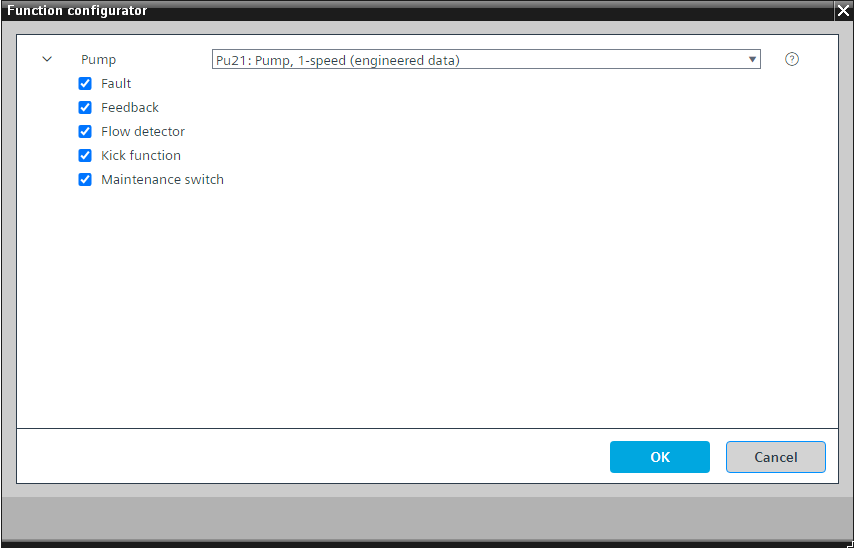

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls a 1-speed pump.
This program block has the following optional functions:
Option: Fault (1xBI)
Reads the fault signal from the pump control unit and generates an alarm.
Option: Feedback (1xBI)
Reads the feedback signal, e.g., from a pump control unit, and generates an alarm if feedback is missing when the pump must run.
Option: Flow detector (1xBI)
Reads the signal from a flow detector and generates an alarm if flow is missing when the pump must run.
Option: Kick function
Prevents standstill damage by generating a pulse that starts the pump at a configured time with a defined pulse length after a minimum off time has elapsed.
This is configured in the program.
Option: Maintenance switch (1xBI)
Reads the signal from the maintenance switch and generates an alarm. If active, then the outputs of the pump are stopped with very high priority (priority 2).
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Cmd | Command | BO: Binary output | No | Yes, 4 | |
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Flt | Fault | BI: Binary input | Yes, 4/5 | No | |
MntnSwi | Maintenance switch | BI: Binary input | Yes, 5 | No | |
FlDet | Flow detector | BI: Binary input | Yes, 4 | No | |
Fb | Feedback | BI: Binary input | Yes, 4 | No | |
Description |
|---|
Kick function |
