[EvlFireSmext21] Fire and smoke extraction evaluation
Program block, name / node subtype: [EvlFireSmext21] Fire and smoke extraction evaluation
Library hierarchy: Ventilation and air conditioning equipment
Family: EvlFireSmext
Project tree | Diagram |
|---|---|
|
|
|

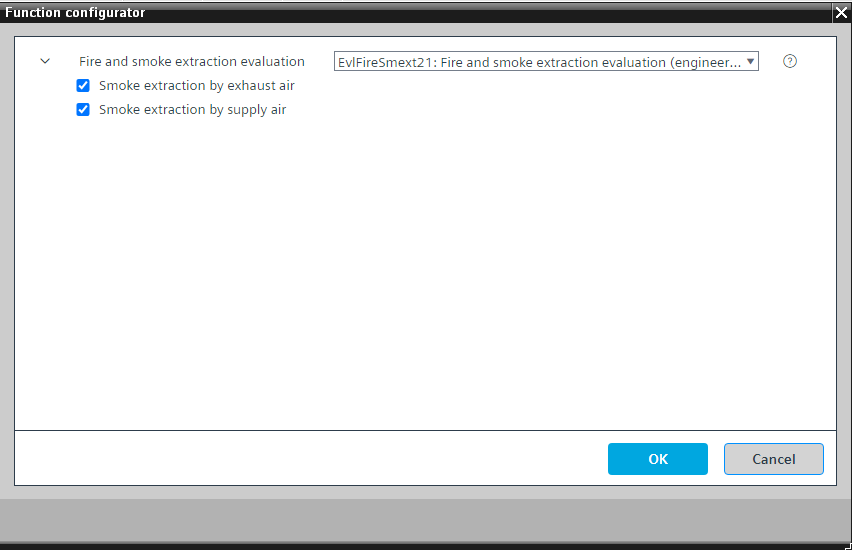

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Reads the status of a fire detection contact and from the optional contacts for smoke extraction with supply air and smoke extraction with exhaust air.
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
FireDetCont | Fire detection contact | BI: Binary input | Yes, 4 | No |
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
SmextSu | Smoke extraction supply air | BI: Binary input | Yes, 4 | No |
SmextEh | Smoke extraction exhaust air | BI: Binary input | Yes, 4 | No |
