[Fdp21] Fire damper, open/close function & 2 BI for feedback
Program block, name / node subtype: [Fdp21] Fire damper, open/close function & 2 BI for feedback
Library hierarchy: Ventilation and air conditioning equipment
Family: Fdp
Project tree | Diagram |
|---|---|
|
|
|

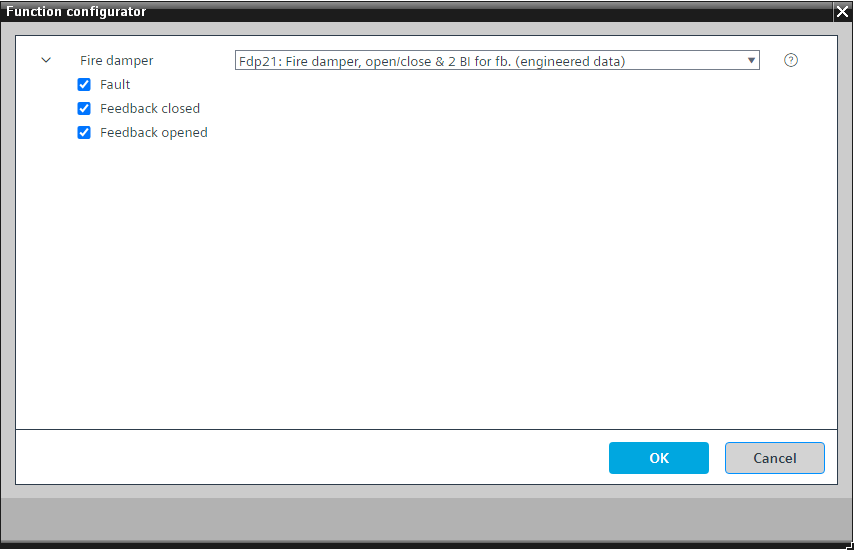

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls a fire damper with open/close function and optional feedback signals and fault alarm.
The opening and closing time can be parameterized in the program.
This program block has the following optional functions:
Option: Fault (1xBI)
Reads a fault contact and generates an alarm.
This option is mainly used for dampers with actuators that are integrated over bus, e.g., Modbus.
Option: Feedback closed (1xBI)
Reads the end switch of the actuator for the closed position of the damper.
Option: Feedback opened (1xBI)
Reads the end switch of the actuator for the opened position of the damper.
The program logic reads the binary command, considers the opening and the closing time, compares the signals from the end switches of the actuator from the option "Feedback opened" and/or "Feedback closed" to the command and can generate two alarms (binary calculated values): "Position monitoring (Opened)" and "Position monitoring (Closed)". If "Position monitoring (Opened)" is in alarm, the air handling unit stops.
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
Cmd | Command | BO: Binary output | No | No |
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
|
FbOpnd | Feedback opened | BI: Binary input | No | No |
Further elements that belong to this element (and to FbClsd): PosMon (Opnd) | Position monitoring (Opened) | BCalcVal: Binary calculated value | Alarm: Yes | Notification class 4 PosMon (Clsd) | Position monitoring (Closed) | BCalcVal: Binary calculated value | Alarm: Yes | Notification class 4 | ||||
FbClsd | Feedback closed | BI: Binary input | No | No |
Flt | Fault | BI: Binary input | Yes, 4 | No |
