[Bu24] Burner interface, enable and modulating outputs
Program block, name / node subtype: [Bu24] Burner interface, enable and modulating outputs
Library hierarchy: Heating equipment
Family: Bu
Project tree | Diagram |
|---|---|
|
|
|

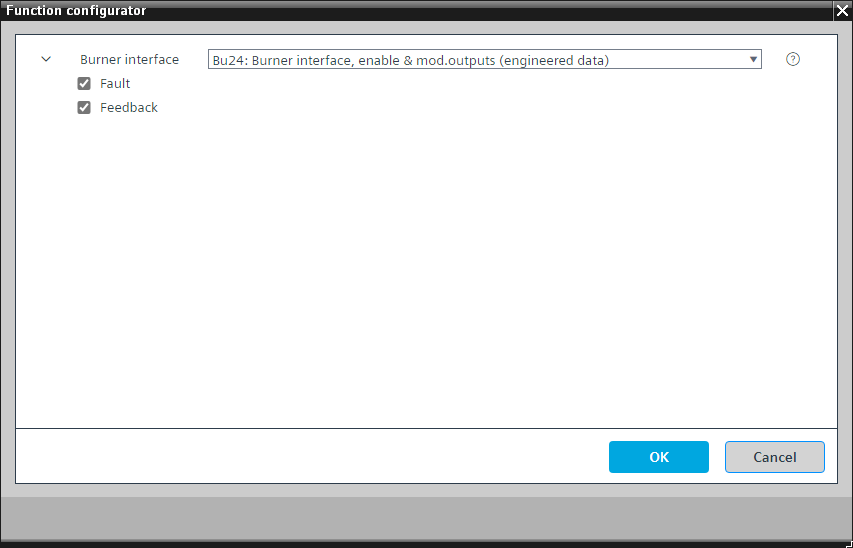

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls an analog output for modulation (modulating) and a binary enable output (command) that are sent to the boiler control unit.
This program block can be used in a program block for a boiler.
This program block has the following optional functions:
Option: Fault (1xBI)
Reads the fault signal from the boiler control unit and generates an alarm.
Option: Feedback (1xBI)
Reads the feedback signal from the boiler control unit.
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Cmd | Command | BO: Binary output | No | Yes, 4 | |
Mdlt | Modulating | AO: Analog output | No | Yes, 2 | |
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Flt | Fault | BI: Binary input | Yes, 4/5 | No | |
Fb | Feedback | BI: Binary input | No | No | |
The extension for alarming for the predefined I/O for the optional element "Feedback" must be deactivated.
