[CenWthStn21] Central weather station 21, measurements for outside air temperature, brightness, solar radiation, wind speed, precipitation
Program block, name / node subtype: [CenWthStn21] Central weather station 21, measurements for outside air temperature, brightness, solar radiation, wind speed, precipitation
Library hierarchy: Coordination
Family: CenWthStn
Project tree | Diagram |
|---|---|
|
|
|

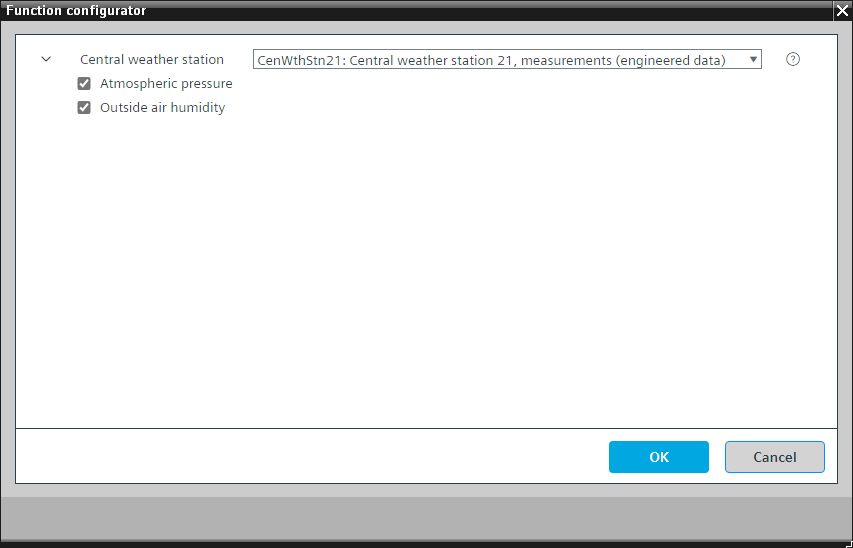

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
CenWthStn21 reads weather information from a weather station or individual sensors and makes it available to the room automation through a group mechanism.
The most important functions in the program block are:
- Distribution of the outside air temperature
- Distribution of the outside air humidity
- Distribution of atmospheric pressure
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
CenWthStnMst | Manager for central weather station | GrpMaster: Group manager | N/A | N/A | |
Description |
|---|
|
Outside air humidity |
Atmospheric pressure |
CenWthStn21 distributes weather data via grouping either to subordinate program block CenWthStn11 or directly to the connected rooms or room segments.
