[CharFnct21] Characteristic function with interpolation
Program block, name / node subtype: [CharFnct21] Characteristic function with interpolation
Library hierarchy: Universal functions
Family: FBtoBACnet

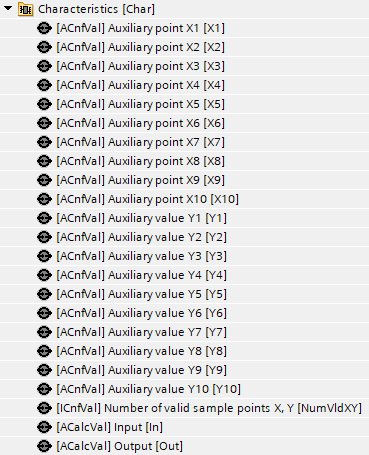

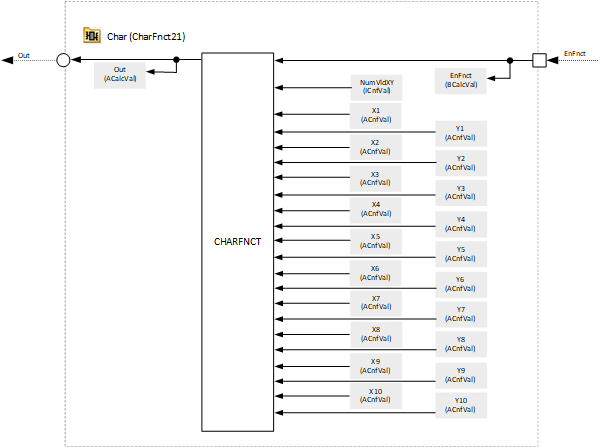

Project tree | Diagram |
|---|---|
|
|
|
Configurator
N/A
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Program block for showing on BACnet for the function block CHARFNCT.
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
X1...X10 | Auxiliary point X1...Auxiliary point X10 | ACnfVal: Analog configuration value | No | No | |
Y1...Y10 | Auxiliary value Y1...Auxiliary value Y10 | ACnfVal: Analog configuration value | No | No | |
NumVldXY | Number of valid sample points X, Y | ICnfVal: Integer configuration value | No | No | |
In | Input | ACalcVal: Analog calculated value | No | No | |
Out | Output | ACalcVal: Analog calculated value | No | No | |
