[CenEmgHvac21] Central emergency HVAC, fire emergency
Program block, name / node subtype: [CenEmgHvac21] Central emergency HVAC, fire emergency
Library hierarchy: Coordination
Family: CenEmgHvac

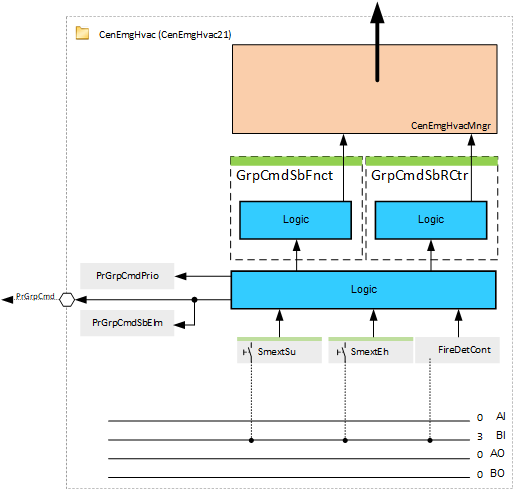

Project tree | Diagram |
|---|---|
|
|
|

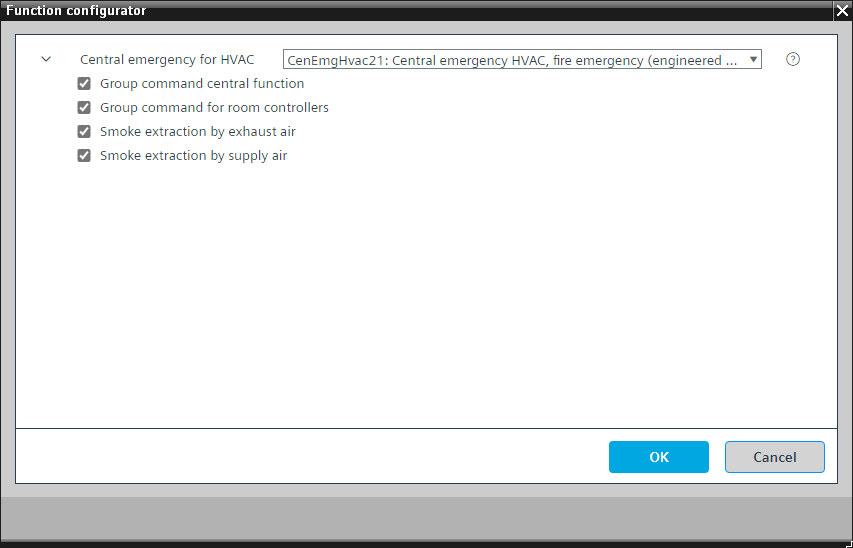

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Central emergency HVAC and fire emergency
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
|
FireDetCont | Fire detection contact | BI: Binary input | Yes, 4 | No | |
PrGrpCmdSbElm | Present group command for subordinate elements | MCalcVal: Multistate calculated value | N/A | Yes, 4 | |
PrGrpCmdPrio | Present group command priority | MCalcVal: Multistate calculated value | N/A | Yes, 4 | |
CenEmgHvacMngr | Manager for central operation HVAC | GrpMaster: Group manager | N/A | N/A | |
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
SmextEh | Smoke extraction by exhaust air | BI: Binary input | Yes, 4 | No | |
SmextSu | Smoke extraction by supply air | BI: Binary input | Yes, 4 | No | |
Description |
|---|
|
Group command for subordinate central functions |
Group command for subordinate room controllers |

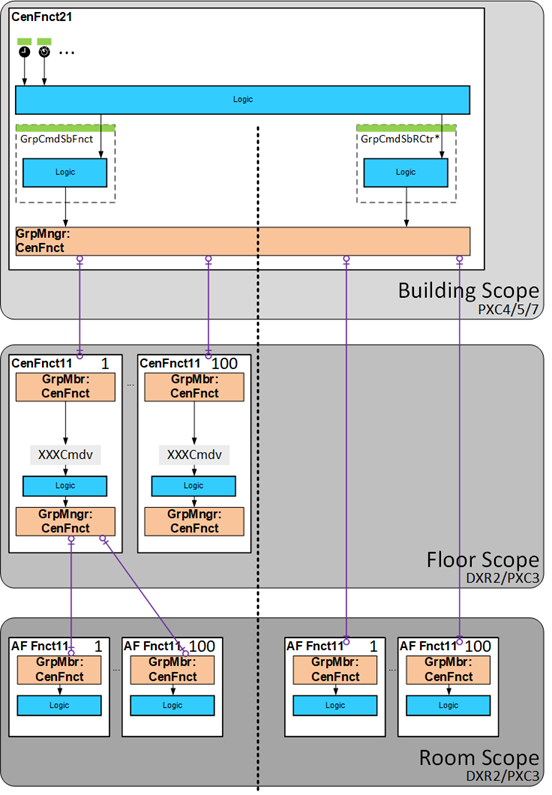

The following diagram provides an overview of the options Group command for subordinate central functions (GrpCmdSbFnct) and Group command for subordinate room controllers (GrpCmdSbRCtr):
It is unlikely to have both options in parallel. There are two possible topologies:

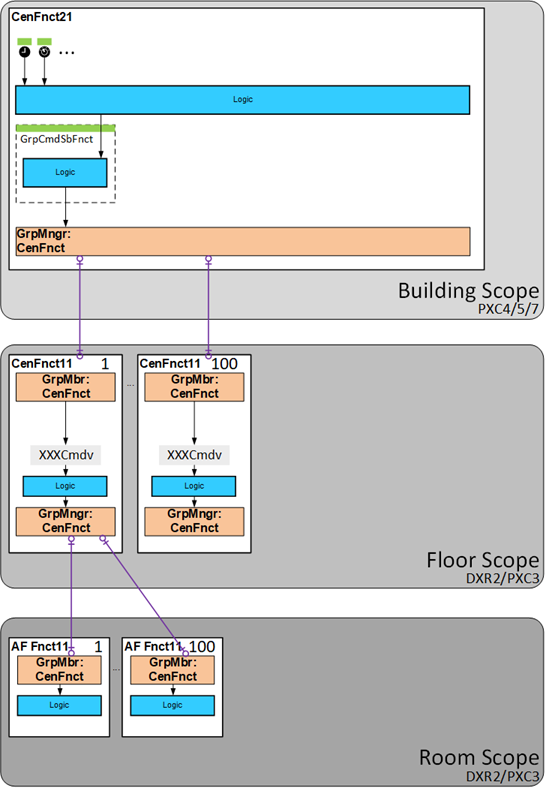

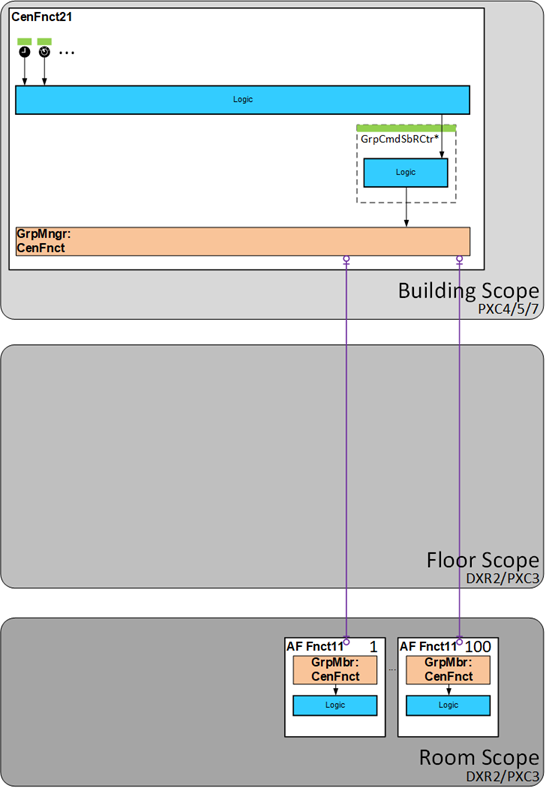

Cascading of the central functions is necessary. | Cascading of the central functions is not necessary. |
|
|
