[HraFnct21] Function block on BACnet, HRA
Program block, name / node subtype: [HraFnct21] Function block on BACnet, HRA
Library hierarchy: Universal functions
Family: FBtoBACnet
Project tree | Diagram |
|---|---|
|
|
|
Configurator
N/A
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.

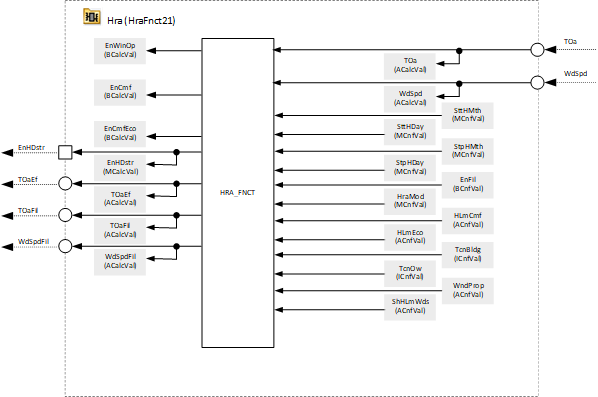

Program block for displaying on BACnet for the function block HRA

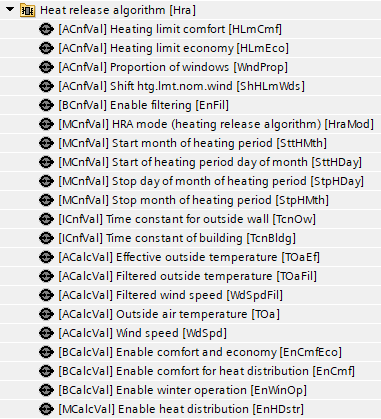

Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
HLmCmf | Heating limit comfort | ACnfVal: Analog configuration value | No | No | |
HLmEco | Heating limit economy | ACnfVal: Analog configuration value | No | No | |
WndProp | Proportion of windows | ACnfVal: Analog configuration value | No | No | |
ShHLmWds | Shift of heating limit for nominal wind speed | ACnfVal: Analog configuration value | No | No | |
EnFil | Enable filtering | BCnfVal: Binary configuration value | No | No | |
HraMod | HRA mode (heating release algorithm) | MCnfVal: Multistate configuration value | No | No | |
SttHMth | Start month of heating period | MCnfVal: Multistate configuration value | No | No | |
SttHDay | Start of heating period day of month | MCnfVal: Multistate configuration value | No | No | |
StpHDay | Stop day of month of heating period | MCnfVal: Multistate configuration value | No | No | |
StpHMth | Stop month of heating period | MCnfVal: Multistate configuration value | No | No | |
TcnOw | Time constant for outside wall | ICnfVal: Integer configuration value | No | No | |
TcnBldg | Time constant of building | ICnfVal: Integer configuration value | No | No | |
TOaEf | Effective outside temperature | ACalcVal: Analog calculated value | No | No | |
TOaFil | Filtered outside temperature | ACalcVal: Analog calculated value | No | No | |
WdSpdFil | Filtered wind speed | ACalcVal: Analog calculated value | No | No | |
TOa | Outside air temperature | ACalcVal: Analog calculated value | No | No | |
WdSpd | Wind speed | ACalcVal: Analog calculated value | No | No | |
EnCmfEco | Enable comfort and economy for heat distribution | BCalcVal: Binary calculated value | No | No | |
EnCmf | Enable comfort for heat distribution | BCalcVal: Binary calculated value | No | No | |
EnWinOp | Enable winter operation | BCalcVal: Binary calculated value | No | No | |
EnHDstr | Enable heat distribution | MCalcVal: Multistate calculated value | No | No | |
