[NgtCFnct21] Function block on BACnet, NGTC
Program block, name / node subtype: [NgtCFnct21] Function block on BACnet, NGTC
Library hierarchy: Universal functions
Family: FBtoBACnet
Project tree | Diagram |
|---|---|
|
|
|
Configurator
N/A
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.

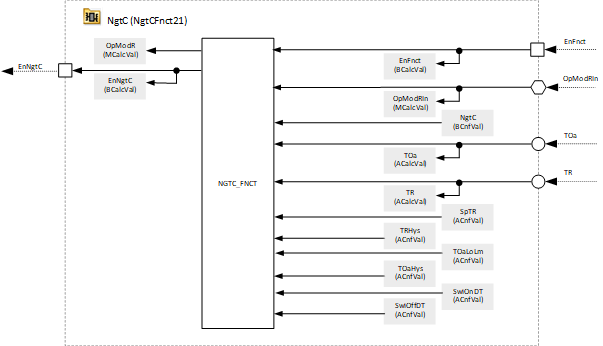

Program block for displaying on BACnet for the function block NGTC
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
TOaHys | Hysteresis for outside temperature | ACnfVal: Analog configuration value | No | No | |
TOaLoLm | Outside air temperature low limit | ACnfVal: Analog configuration value | No | No | |
TRHys | Room temperature hysteresis | ACnfVal: Analog configuration value | No | No | |
SpTR | Room temperature setpoint | ACnfVal: Analog configuration value | No | No | |
SwiOffDT | Switch-off via temperature difference | ACnfVal: Analog configuration value | No | No | |
SwiOnDT | Switch-on via temperature difference | ACnfVal: Analog configuration value | No | No | |
NgtC | Night cooling | BCnfVal: Binary configuration value | No | No | |
TOa | Outside air temperature | ACalcVal: Analog calculated value | No | No | |
TR | Room temperature | ACalcVal: Analog calculated value | No | No | |
EnFnct | Enable function | BCalcVal: Binary calculated value | No | No | |
EnNgtC | Enable night cooling | BCalcVal: Binary calculated value | No | No | |
OpModRIn | Input for room operating mode | MCalcVal: Multistate calculated value | No | No | |
OpModR | Operating mode for room | MCalcVal: Multistate calculated value | No | No | |
