[Swi2phFnct21] Function block on BACnet, SWI_2PH
Program block, name / node subtype: [Swi2phFnct21] Function block on BACnet, SWI_2PH
Library hierarchy: Universal functions
Family: FBtoBACnet
Project tree | Diagram |
|---|---|
|
|
|
Configurator
N/A
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Program block for displaying on BACnet for the function block SWI_2PH

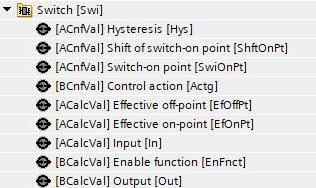

Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Hys | Hysteresis | ACnfVal: Analog configuration value | No | No | |
ShftOnPt | Shift of switch-on point | ACnfVal: Analog configuration value | No | No | |
SwiOnPt | Switch-on point | ACalcVal: Analog calculated value | No | No | |
Actg | Control action | BCnfVal: Binary configuration value | No | No | |
EfOffPt | Effective off-point | ACalcVal: Analog calculated value | No | No | |
EfOnPt | Effective on-point | ACalcVal: Analog calculated value | No | No | |
In | Input | ACalcVal: Analog calculated value | No | No | |
EnFnct | Enable function | BCalcVal: Binary calculated value | No | No | |
Out | Output | BCalcVal: Binary calculated value | No | No | |
