[CenPrtShd21] Central protection for shading
Program block, name / node subtype: [CenPrtShd21] Central protection for shading
Library hierarchy: Coordination
Family: CenPrtShd

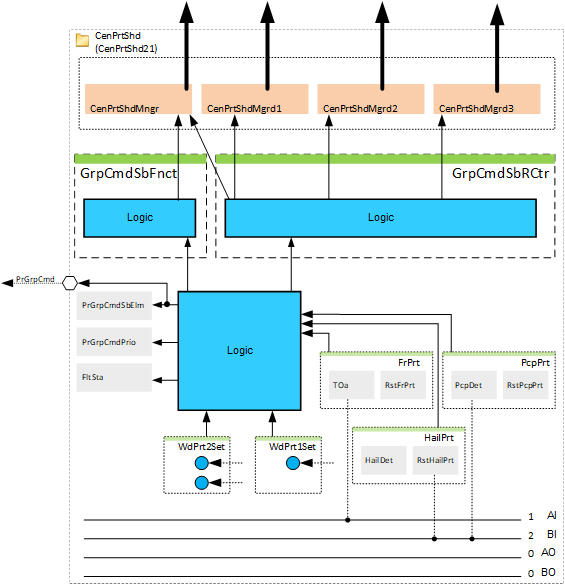

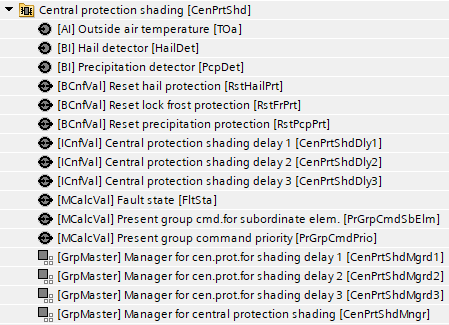

Project tree | Diagram |
|---|---|
|
|

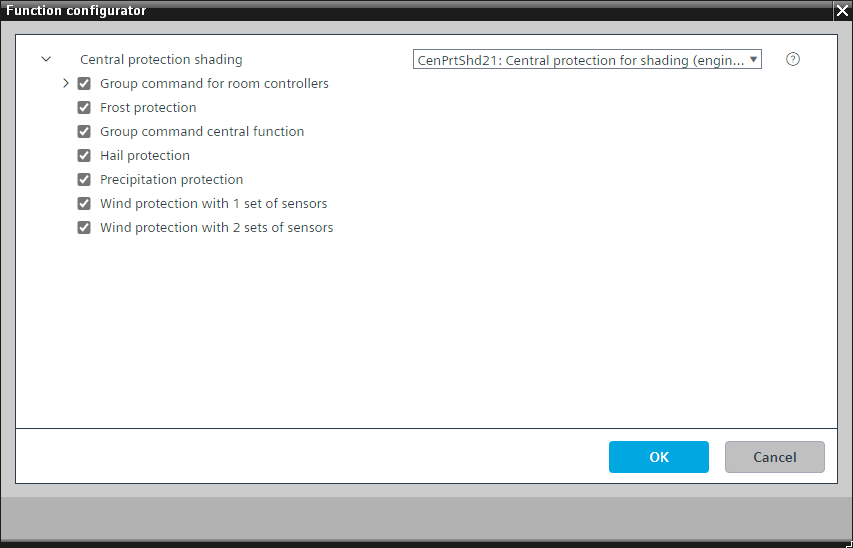

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Central protection for shading products
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
PrGrpCmdSbElm | Present group command for subordinate elements | MCalcVal: Multistate calculated value | N/A | Yes, 4 | |
PrGrpCmdPrio | Present group command priority | MCalcVal: Multistate calculated value | N/A | Yes, 4 | |
FltSta | Fault state | MCalcVal: Multistate calculated value | N/A | N/A | |
CenPrtShdMngr | Manager for central protection for shading | GrpMaster: Group manager | N/A | N/A | |
CenPrtShdMgrd1 | Manager for central protection for shading delay 1 | GrpMaster: Group manager | N/A | N/A | |
CenPrtShdMgrd2 | Manager for central protection for shading delay 2 | GrpMaster: Group manager | N/A | N/A | |
CenPrtShdMgrd3 | Manager for central protection for shading delay 3 | GrpMaster: Group manager | N/A | N/A | |
Description |
|---|
Group command for subordinate central functions |
Group command for subordinate room controllers |
Group command for sub-elements delay 1 Elements that belong to this option: Central operating mode delay 1 | ICnfVal: Integer configuration value |
Group command for sub-elements delay 2 Elements that belong to this option: Central operating mode delay 2 | ICnfVal: Integer configuration value |
Group command for sub-elements delay 3 Elements that belong to this option: Central operating mode delay 3 | ICnfVal: Integer configuration value |
Frost protection Elements that belong to this option: Outside air temperature | AI: Analog input Reset lock frost protection | BCnfVal: Binary configuration value |
Precipitation protection Elements that belong to this option: Precipitation detector | BI: Binary input Reset precipitation protection | BCnfVal: Binary configuration value |
Wind protection with 1 set of sensors |
Wind protection with 2 sets of sensors |
Hail protection Elements that belong to this option: Hail detector | BI: Binary input Reset hail protection | BCnfVal: Binary configuration value |
The following diagram provides an overview of the options Group command for subordinate central functions (GrpCmdSbFnct) and Group command for subordinate room controllers (GrpCmdSbRCtr):
It is unlikely to have both options in parallel. There are two possible topologies:
Cascading of the central functions is necessary. | Cascading of the central functions is not necessary. |
|
|
