[ChHpu22] Chiller, with heat recovery/heat pump operation, with external refrigeration circuit control, 2-stage
Program block, name / node subtype: [ChHpu22] Chiller, with heat recovery/heat pump operation, with external refrigeration circuit control, 2-stage
Library hierarchy: Cooling and refrigeration equipment
Family: Hpu

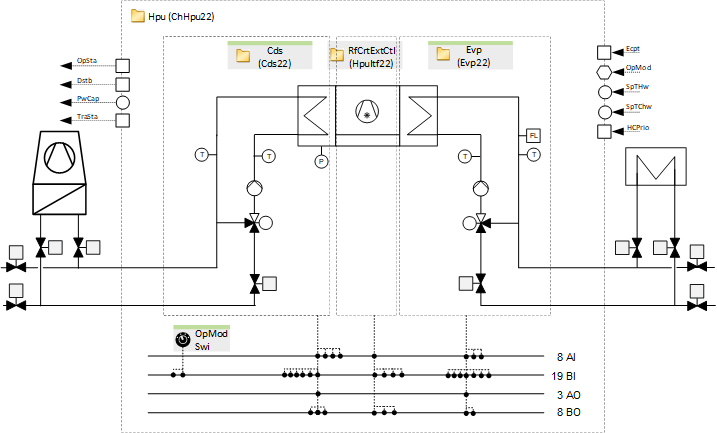

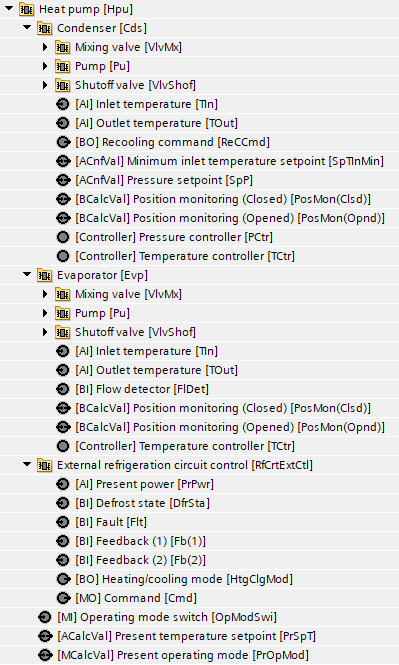

Project tree | Diagram |
|---|---|
|
|

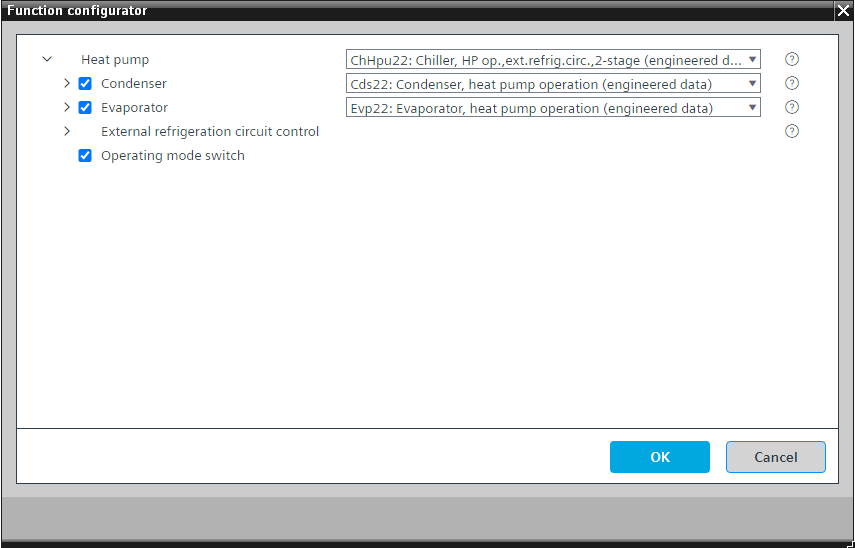

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls a chiller that is optimized for heat recovery/heat pump operation.
There are settings in the program for the nominal power of the chiller and for the transient state times (signal that the chiller is in a transient state that blocks the logic for generating further step-up or step-down pulses for the power control and compensation) when switching on or off or between the stages. For example, 5 minutes when switching on and 2 minutes when switching off, and 2 minutes when switching stages.
An interface to the control unit of the chiller (HpuItf22) switches it on (= stage 1) or off, requests a second stage, and reads optional signals for fault, feedback, defrost status, and present power.
The switch-on and switch-off sequence for the condenser, the evaporator, and the interface to the control unit are defined in the function block CMDSEQ_B.
This program block has the following optional functions:
Option: Condenser (4xAI, 6xBI, 1xAO, 3xBO)
Controls a condenser that is optimized for heat recovery/heat pump operation (Cds22).
In case of demand for hot water, it controls the outlet temperature. Without demand for hot water, it controls the inlet temperature and sends a signal that recooling is needed. There is also an optional pressure control.
Option: Evaporator (3xAI, 7xBI, 1xAO, 2xBO)
Controls an evaporator that is optimized for heat pump operation (Evp22).
It controls the outlet temperature if there is a demand for chilled water.
Option: Operating mode switch (1xMI=2xBI)
Reads the state of an operating mode switch, normally at the front of the electrical panel, and has the states "Auto", "Off", and "On".
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
|
RfCrtExtCtl | External refrigeration circuit control | N/A | N/A | ||
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
|
Evp | Evaporator | N/A | N/A | ||
Cds | Condenser | N/A | N/A | ||
OpModSwi | Operating mode switch | MI: Multistate input | No | Yes, 4 | |
